- Sonnet Echo SE I Thunderbolt 3 Enclosure – Compact 1-Slot for Low-Profile PCIe Cards Sonnet Echo SE I Thunderbolt 3 Enclosure – Compact 1-Slot for Low-Profile PCIe Cards















Sonnet Echo SE I Thunderbolt 3 Enclosure – Compact 1-Slot for Low-Profile PCIe Cards
- Description
- Specifications
- Compatibility
- Product Videos
- Reviews

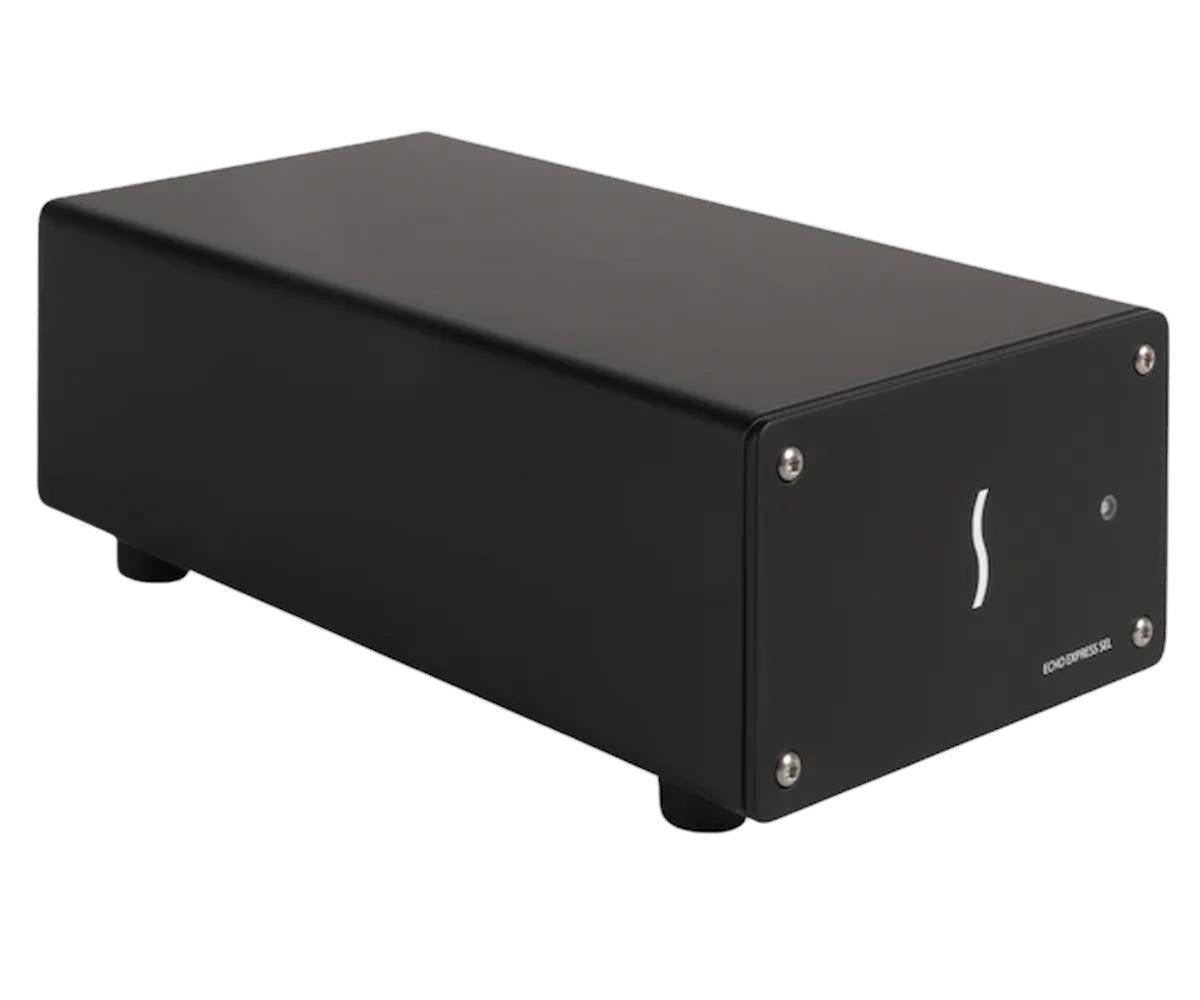

The Sonnet Echo Express SE I Thunderbolt 3 Expansion Chassis is a compact desktop 1-slot Thunderbolt expansion system, designed to add professional PCIe connectivity to any Thunderbolt 3 or Thunderbolt 4 equipped Mac, Windows, or Linux computer. This low-profile PCIe card expansion solution enables you to connect high-performance PCIe cards, including media capture, audio DSP, network, and SSD storage cards, with ease.

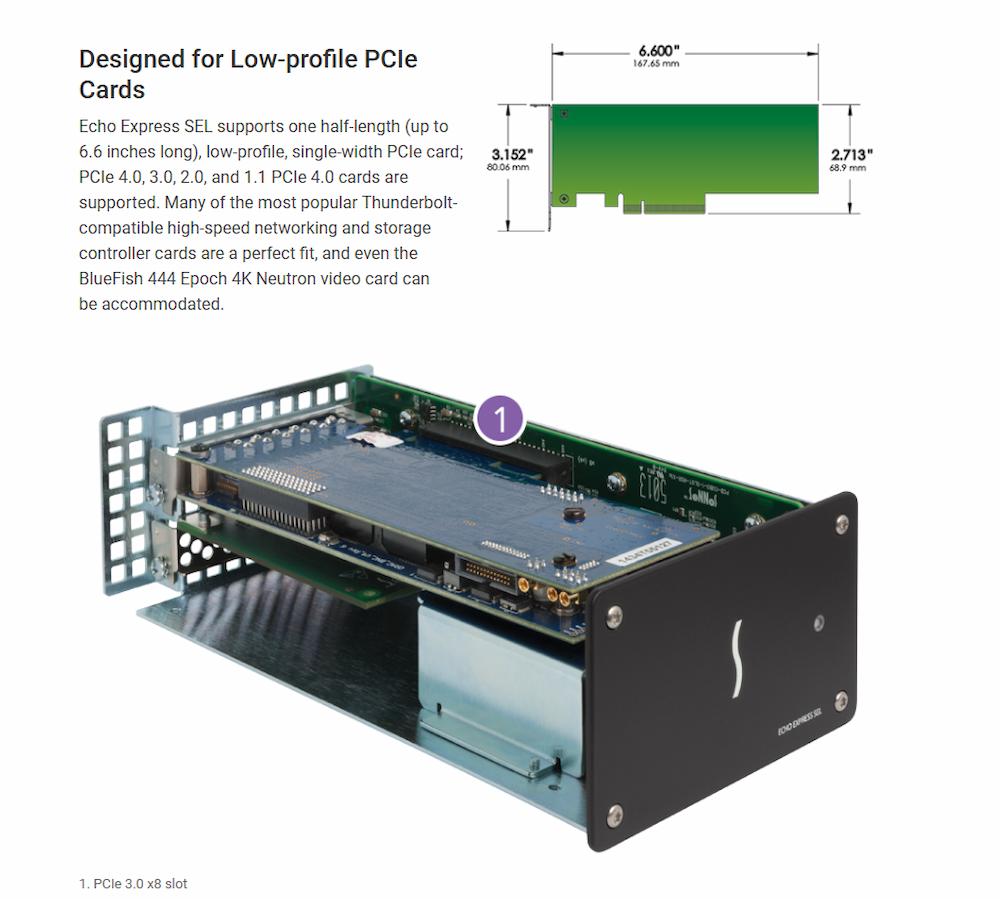

Compact Thunderbolt 3 enclosure designed for one low-profile PCIe card. Not compatible with full-height or double-width cards or GPUs.
Whether you’re working in video production, audio processing, or need fast networking and storage solutions, the Echo Express SE I offers desktop-class PCIe expandability in an ultra-compact, portable form factor. Made from rugged aluminum, this enclosure provides superior cooling and low noise, making it perfect for both studio and mobile workflows.
Key Features:
-
Compact 1-Slot Thunderbolt Expansion System – One x8 PCIe 3.0 slot
x8 mechanical; x4 electrical (Thunderbolt 3 spec)
-
High-Speed Thunderbolt 3 Interface – Up to 2750 MB/s data transfer rate.
-

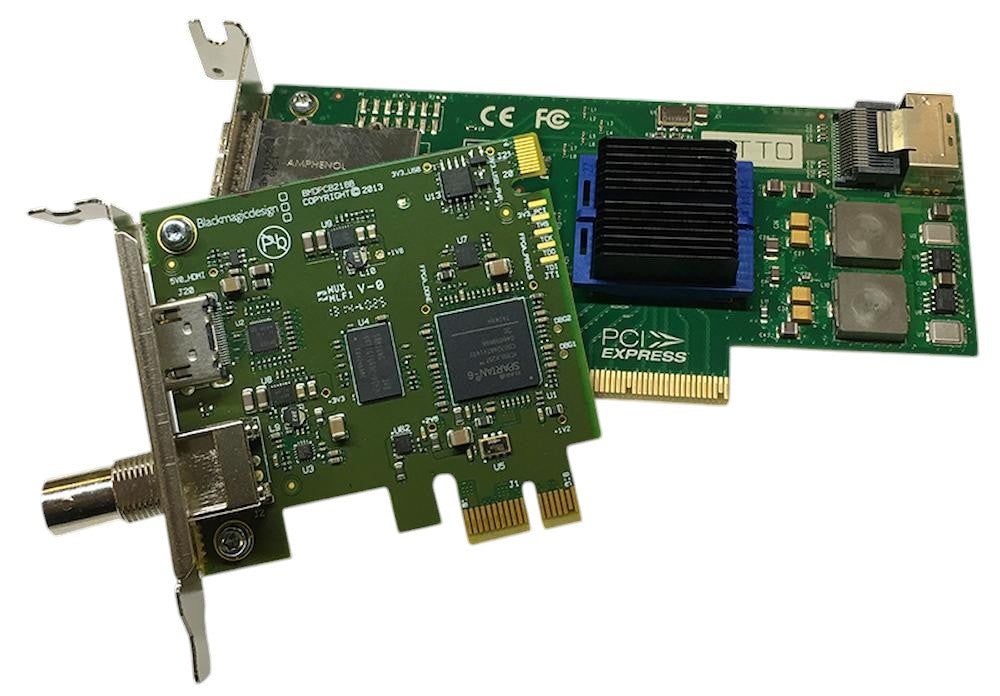

Low-Profile PCIe Card Expansion – Ideal for video capture, audio DSP, 10GbE networking, and SSD storage cards. (One low-profile PCIe card)
-
Quiet and Efficient Cooling – Intelligent, temperature-controlled fan for optimized airflow and low noise operation.
- Broad Compatibility – Works with macOS, Windows, and Linux systems equipped with Thunderbolt 3 or Thunderbolt 4 ports.
-
Built for Pro Applications – Supports PCIe 3.0 x8 cards for high-performance workflows.
- Compact and Rugged Design – Small enough to fit on a desk; durable aluminum enclosure protects internal components.
- Warranty - 2-Year Manufacturer Warranty – Covers defects in materials and workmanship.
What’s in the Box?
1 × Sonnet Echo Express SE I Thunderbolt 3 Expansion Chassis
1 × 0.7- meter Thunderbolt cable(3)
1 × Region-specific power cable UK or EU
1 × ThunderLok (Thunderbolt connector retainer clip)(4)
1 × Setup Guide
Technical Notes
- While the Echo Express SEL features a 40Gbps Thunderbolt interface, some Windows computers equipped with Thunderbolt 3 use an x2 PCIe lane implementation of Thunderbolt 3 technology that limits PCIe performance to 20Gbps.

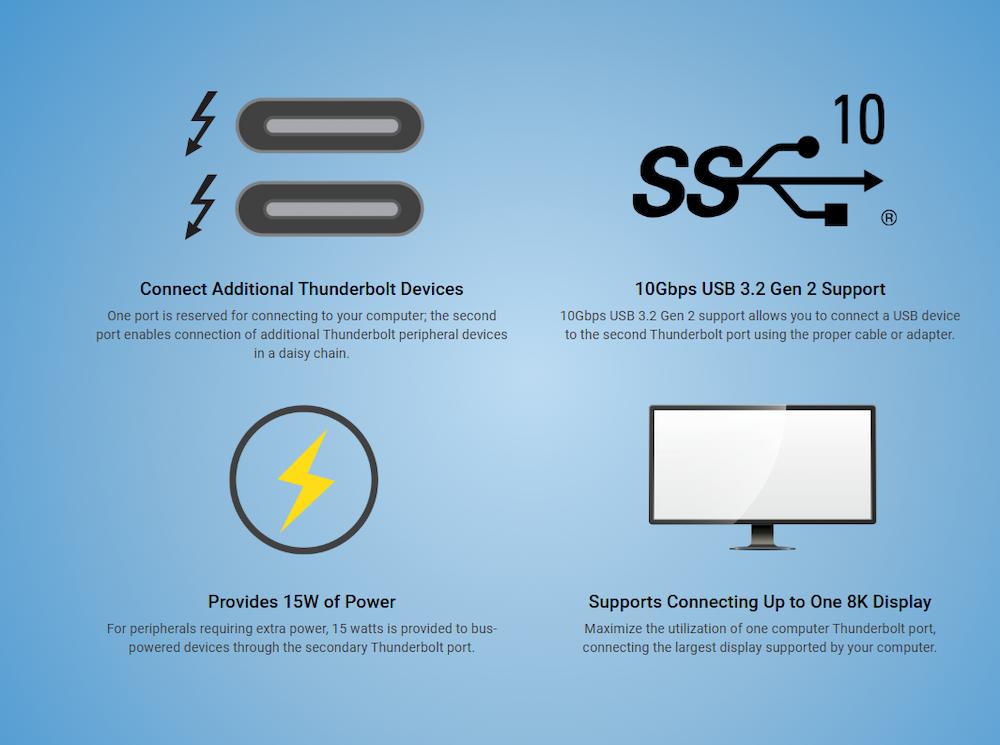

- Second Thunderbolt port supports USB 3.2 Gen 1 (5Gb) or Gen 2 (10Gb) devices when connected with proper cable or adapter (sold separately).
- Full performance requires the use of the included Thunderbolt cable or any Thunderbolt 5, 4, or 3 cable; not Thunderbolt 20Gbps cables. Look for the Thunderbolt icon and the number 5, 4, or 3 on the connector housings to identify 40Gbps or better Thunderbolt cables.
- ThunderLok compatible specifically with Sonnet 0.5- and 0.7-meter Thunderbolt cables.
- Part Number: ECHO-EXP-SEL-T3
- Warranty: 2-year
- Form Factor: Thunderbolt desktop enclosure
- External Connectors: Two Thunderbolt ports(2), 12V power port
- Expansion Slot: One x8 PCIe 3.0 slot, x8 mechanical; x4 electrical (Thunderbolt 3 spec)
- PCIe Cards Supported: One low-profile PCIe card
- Power Adapter: Universal 60W, 100-240V AC, 50-60 Hz, NRTL Certified – PDF Manual
- Operating Temperature: 0ºC to 35ºC (32ºF to 95ºF)
- Dimensions (WxDxH): 4 x 8.25 x 2.8 in. (10.3 x 21 x 7.28 cm)
- Weight: 1.85 lbs (.84 kg)
- Compliance: RoHS 3 (Directive 2015/863), IEC62368-1 and IEC62368-2 Safety
- Product Manual: Download PDF
-
Technical Notes:
- While the Echo Express SEL features a 40Gbps Thunderbolt interface, some Windows computers equipped with Thunderbolt 3 use an x2 PCIe lane implementation that limits PCIe performance to 20Gbps.
- Second Thunderbolt port supports USB 3.2 Gen 1 (5Gb) or Gen 2 (10Gb) devices when connected with proper cable or adapter (sold separately).
- Full performance requires the use of the included Thunderbolt cable or any Thunderbolt 5, 4, or 3 cable (not 20Gbps cables). Look for the Thunderbolt icon and the number 5, 4, or 3 on the connector housings to identify 40Gbps or better Thunderbolt cables.
- ThunderLok compatible specifically with Sonnet 0.5- and 0.7-meter Thunderbolt cables.
-
Mac Compatibility:
- Mac (M series) with PCIe cards that have compatible drivers
- Mac (Intel®) with Thunderbolt 3 ports
- Mac (Intel) with a Thunderbolt 2 or Thunderbolt 1 port using an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter plus compatible cable (both sold separately)
- macOS 10.12+
- macOS Sequoia compatible -
Windows Compatibility:
- Windows computer with Thunderbolt 5, 4, or 3 ports
- Windows 11 and 10 -
Linux Compatibility:
- Linux computer with Thunderbolt 5, 4, or 3 ports
- Linux Kernel 5.4+ -
PCIe Card Compatibility:
- For a list of compatible PCIe cards, see this PDF document.
