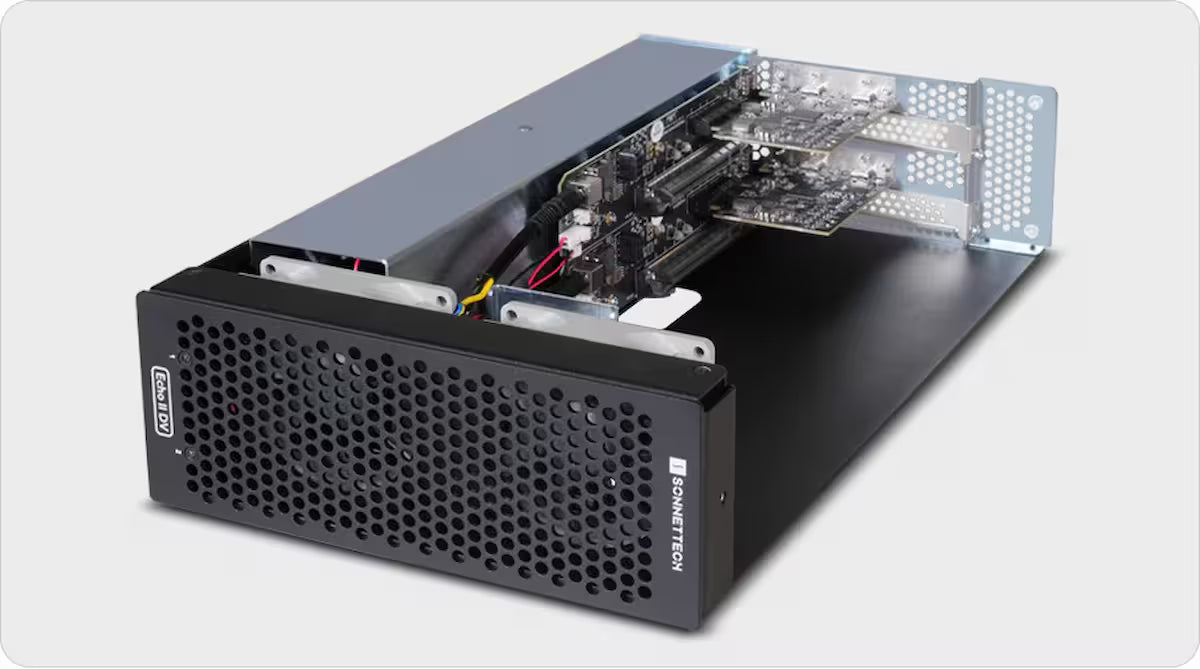

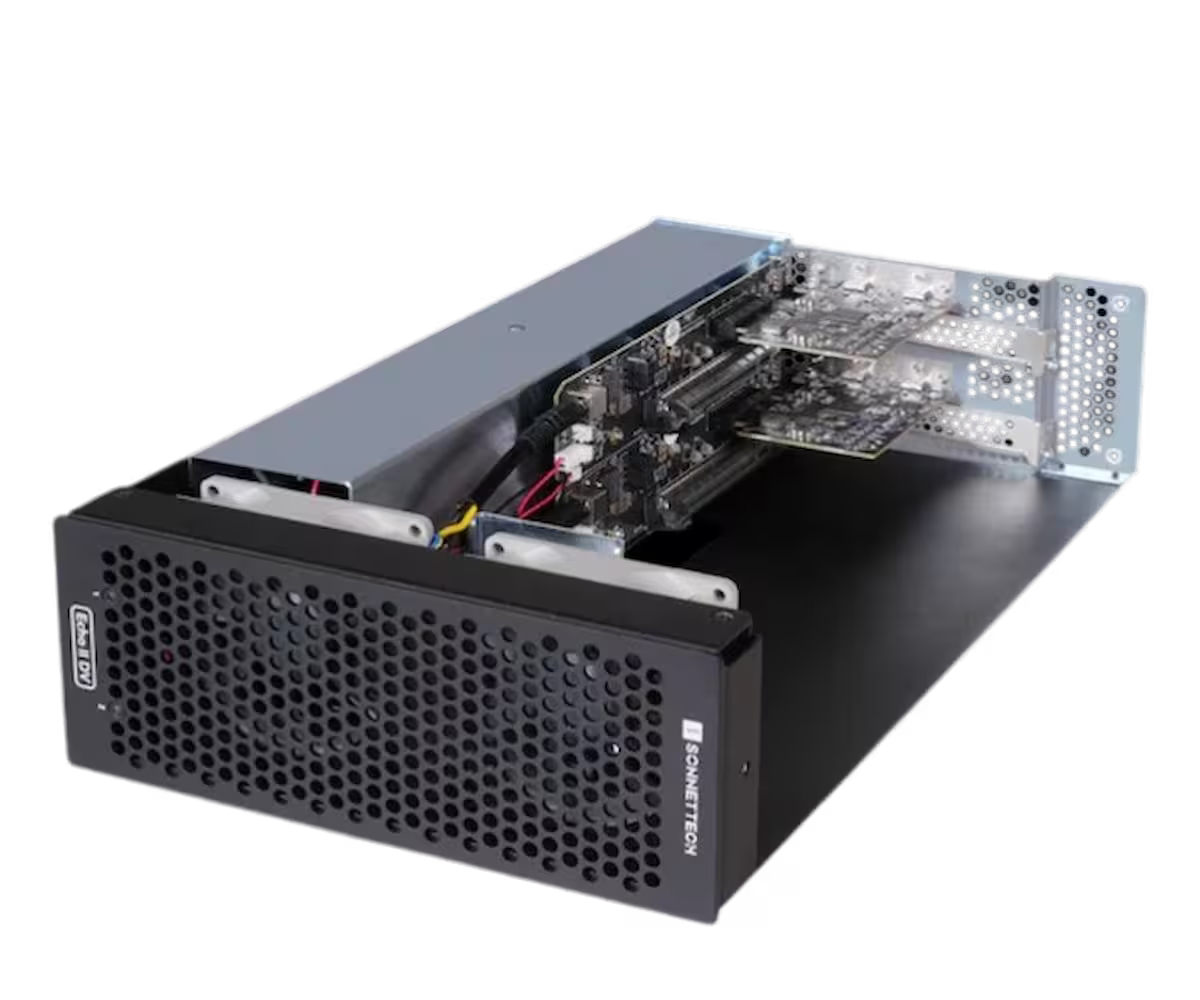

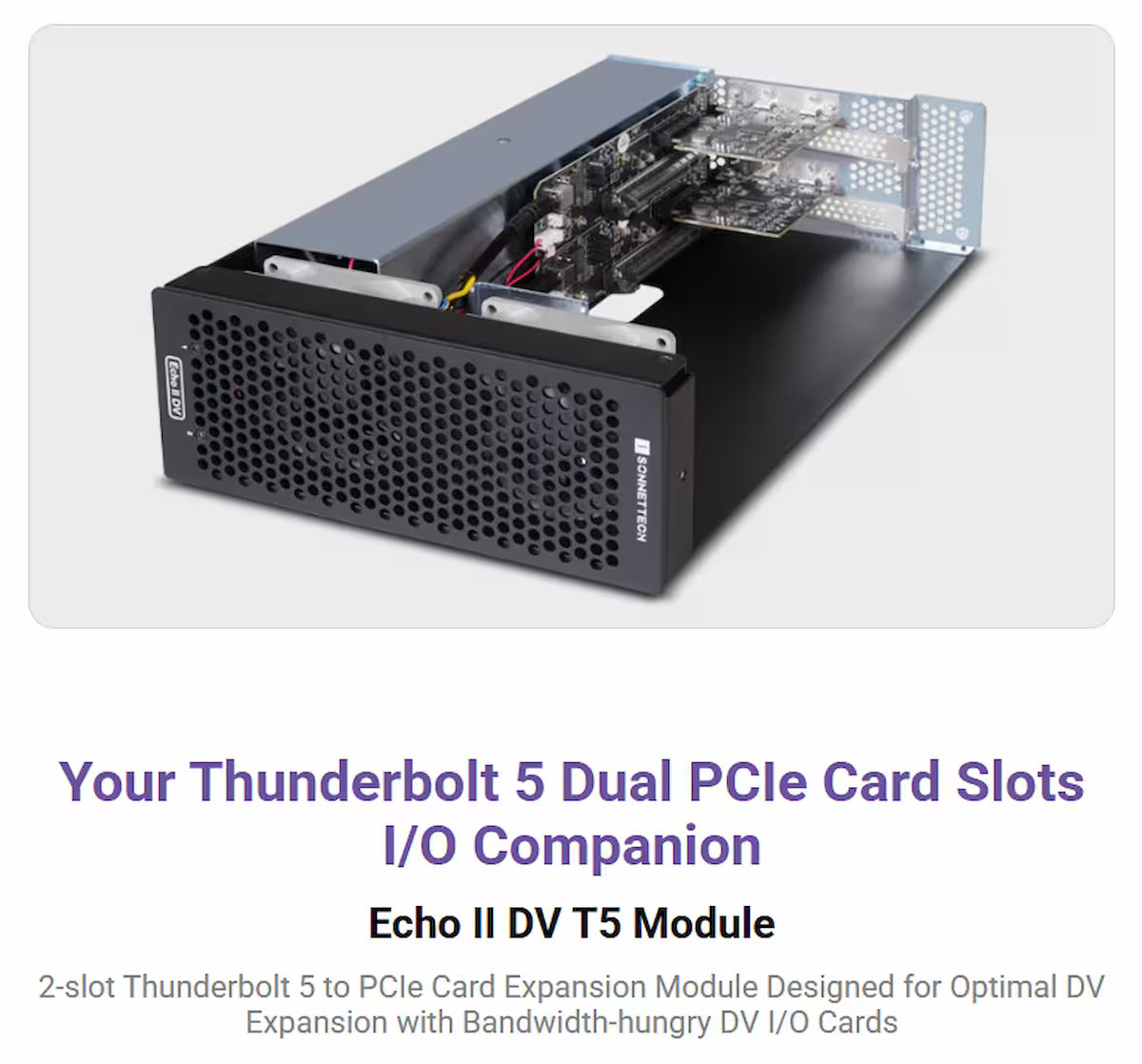

Sonnet Echo II DV T5 Module – 2-Slot Thunderbolt 5 to PCIe 4.0 Expansion Module
The Sonnet Echo II DV T5 Module is a high-performance Thunderbolt 5 to PCIe expansion solution designed to deliver enterprise-grade PCIe connectivity to compatible Sonnet systems. Built for demanding professional workflows, it enables the use of two full-length PCIe cards through ultra-high-bandwidth Thunderbolt 5 connections.

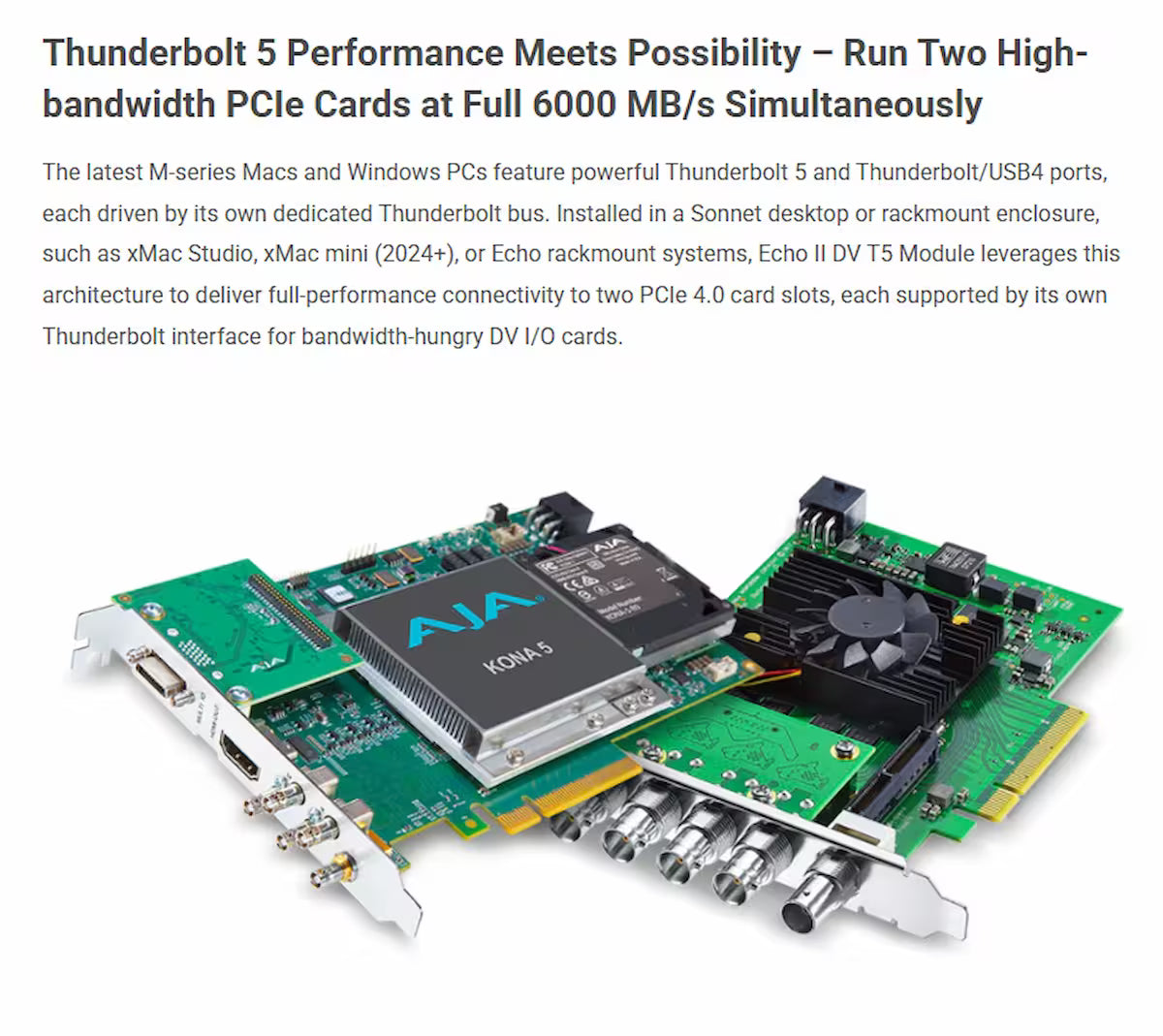

Ideal for video capture, high-speed networking, storage controllers, and advanced AV infrastructure, the Echo II DV T5 Module provides reliable power delivery and robust PCIe 4.0 support in a compact expansion format. When paired with supported Sonnet enclosures, it transforms your Thunderbolt-enabled system into a powerful PCIe expansion platform.
Engineered for stability and maximum throughput, this module supports dual Thunderbolt connections for bandwidth-intensive configurations, ensuring professional-grade performance for production and enterprise environments.
Key Features
- Thunderbolt 5 to dual PCIe 4.0 expansion module
- Supports two full-length, full-height, single-width PCIe cards

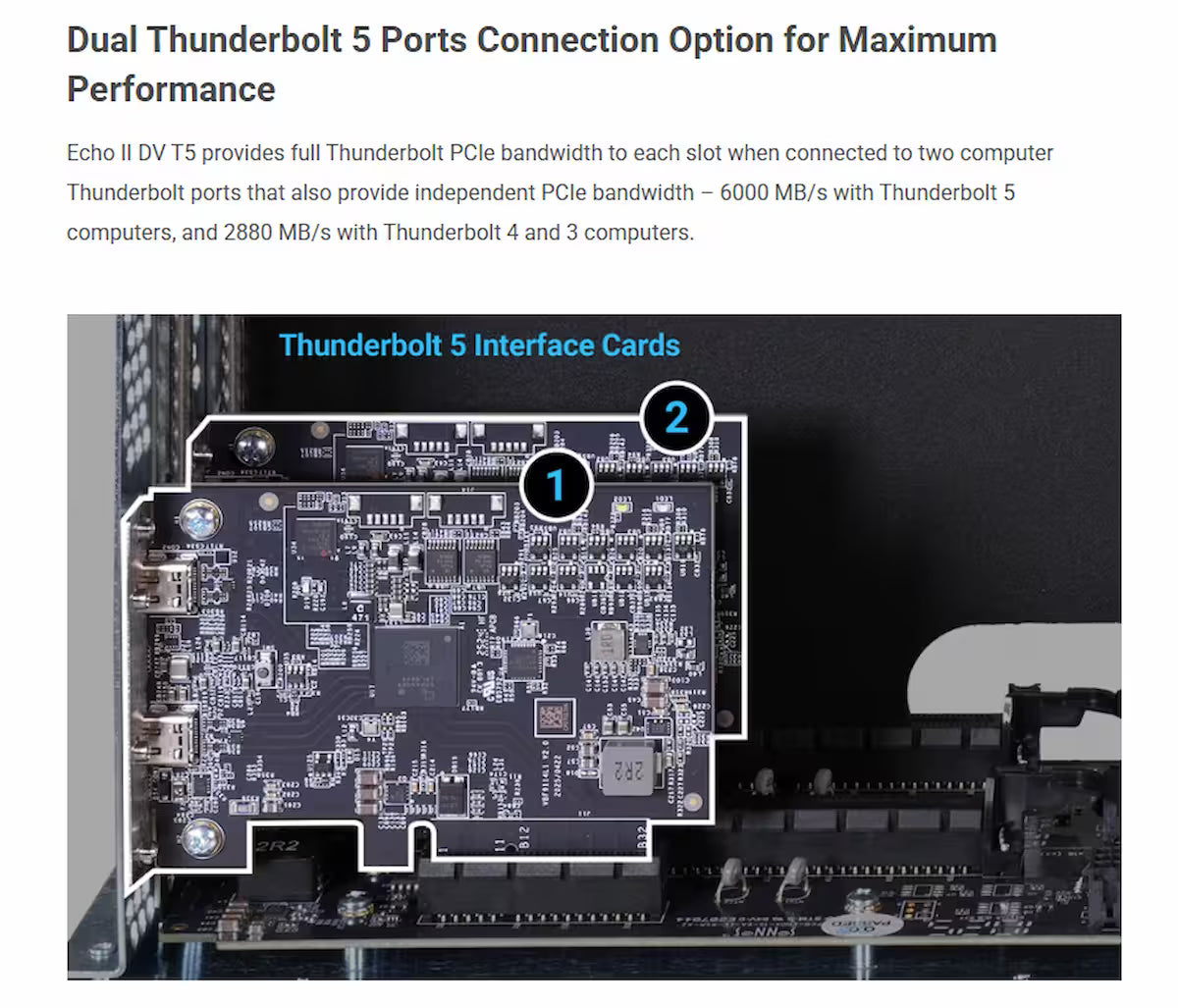

- Dual Thunderbolt connections for maximum bandwidth performance
- Integrated auxiliary power for demanding PCIe cards
- Designed for professional AV, networking, and storage workflows
- Compatible with supported Sonnet rack and enclosure systems
Included:
- Echo II DV T5 Module
- Region-specific power cable
- Two 6-pin PCIe auxiliary power cables (installed)
- Two 0.8-meter Thunderbolt 5 cables
- Three ThunderLok-A connector locks
- Documentation
Product Q&A
Q: How many PCIe cards does this module support?
A: It supports two full-length, full-height, single-width PCIe cards.

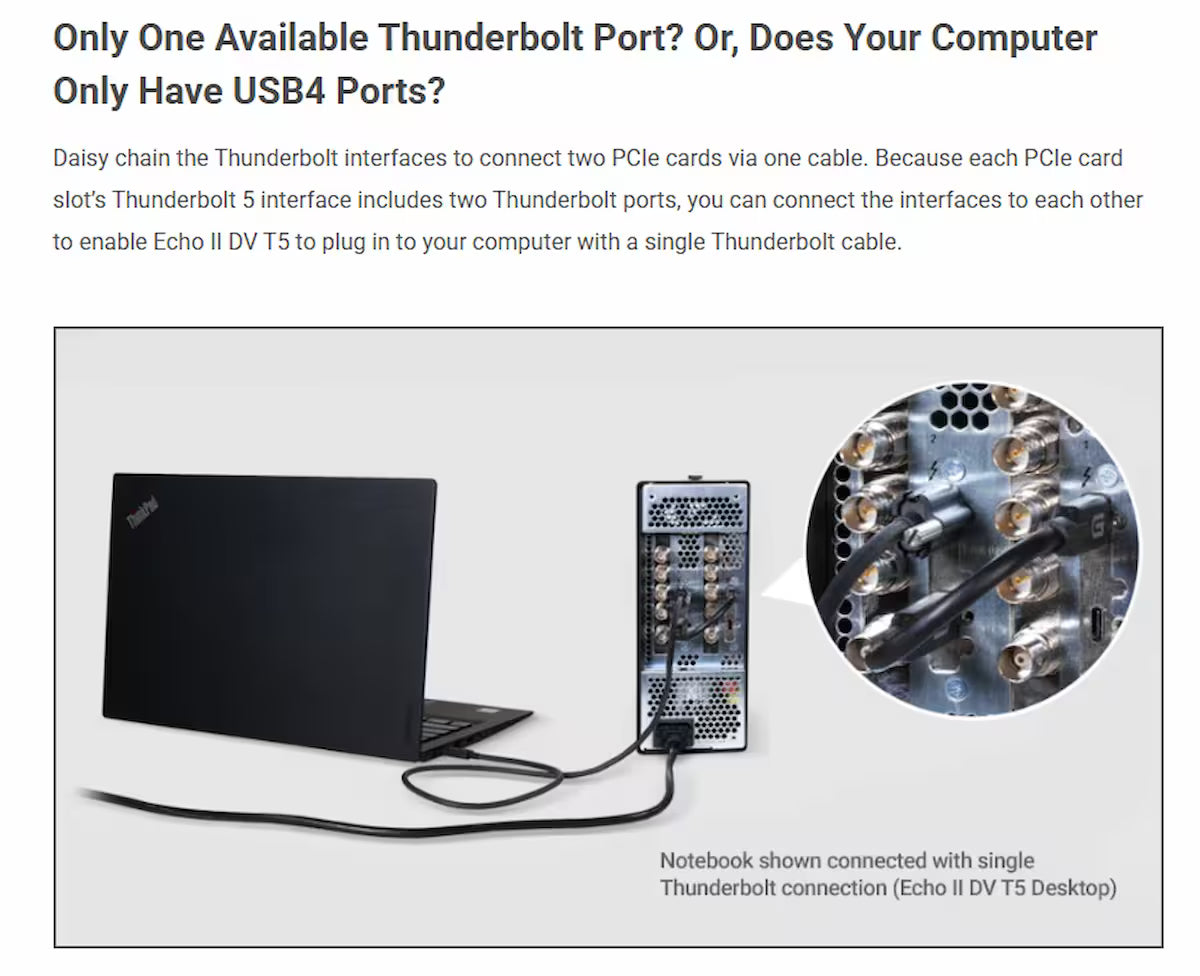

Q: Does this module require one or two Thunderbolt connections?
A: For maximum performance with two high-bandwidth PCIe cards, dual Thunderbolt connections are required.
Q: Is this a standalone enclosure?
A: No. This is a module designed to be installed into compatible Sonnet expansion systems.
Q: Does it provide power to PCIe cards?
A: Yes. It includes auxiliary power connectors to support PCIe cards that require supplemental power.
Q: Where can I check supported PCIe cards?
A: Refer to Sonnet’s official PCIe card compatibility documentation for a complete supported list.
Specifications
-
Part Number
DM-MOD-E2DVT5
-
Form Factor
Thunderbolt 5 to PCIe expansion module -
External Connectors
Four Thunderbolt 5 ports
Power (C14-type) -
Thunderbolt 5 Computer Ports
Cables Supported
Thunderbolt 5 or Thunderbolt 4 cables
Cables Not Supported
Thunderbolt optical cables -
Thunderbolt Peripheral Ports
(Note that the downstream ports are not necessarily Thunderbolt 5 ports; they are the same as the host ports (Thunderbolt 5, Thunderbolt 4, or USB4). -
Connectivity
With USB-C connector -
Peripherals Supported
Thunderbolt 5, 4, 3 devices
USB4, 3, 2, 1 devices
Thunderbolt 5, 4, 3, and USB-C monitors
DisplayPort and HDMI monitors (Thunderbolt-compatible adapter required, sold separately) -
Internal Connectors

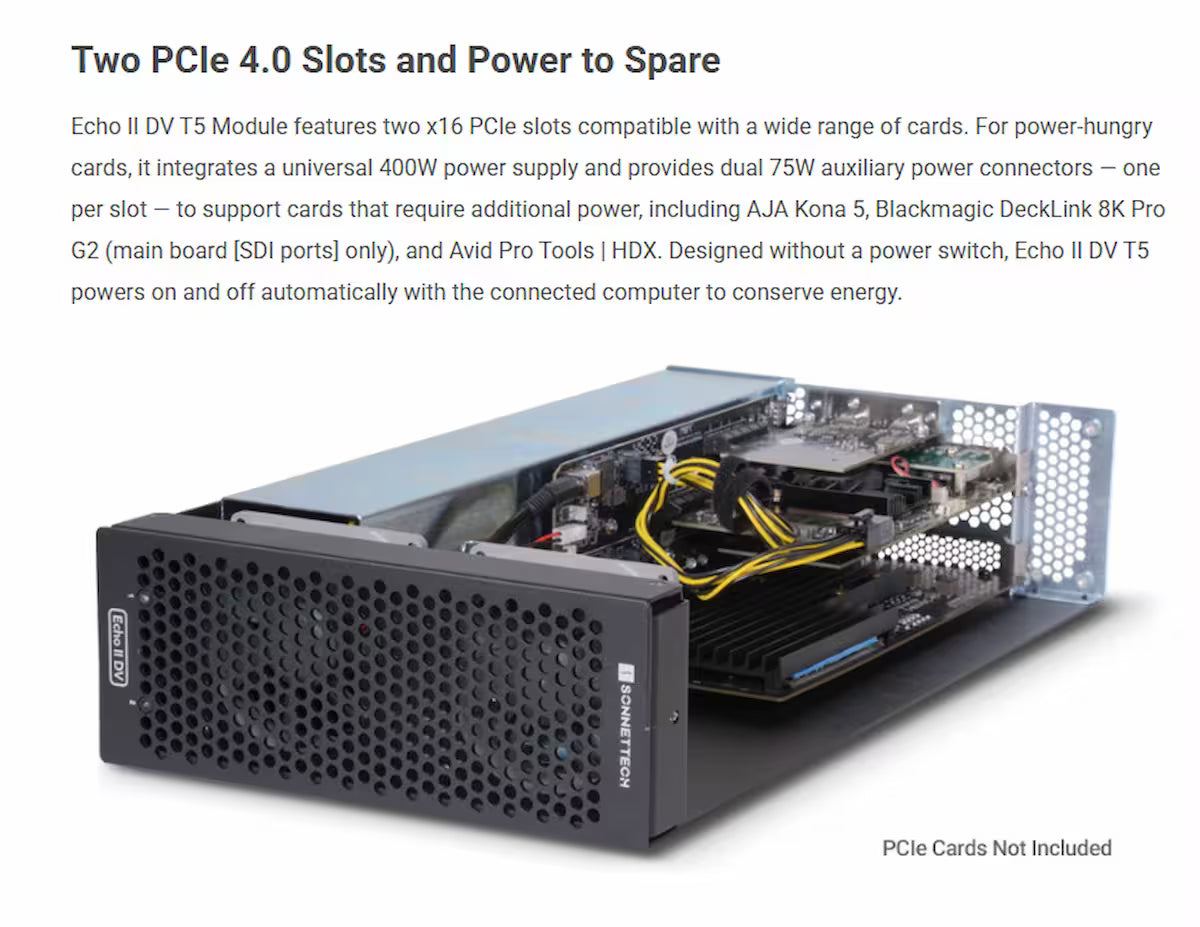

Two 6-pin auxiliary power; provide up to 75W of power each for PCIe cards that require supplemental power -
Expansion Slots
Two x16 mechanical (x4 electrical) PCIe 4.0 -
PCIe Cards Supported
Two full-length, full-height, single-width PCIe cards -
Power Supply
Universal 400W, 115-230V AC, 50-60 Hz -
Operating Temperature
0ºC to 35ºC (32ºF to 95ºF) -
Compliance
RoHS 3 (Directive 2015/863)
IEC62368-1 and IEC62368-2 Safety - PCIe Card compatibility list PDF
Compatibility
- Compatible with supported Sonnet rackmount and enclosure systems
- Mac with Thunderbolt 5 ports
- Mac with Thunderbolt 4 ports
- Mac with Thunderbolt 3 ports
- Windows computer with Thunderbolt 5 ports
- Windows computer with Thunderbolt 4 ports
- Windows computer with Thunderbolt 3 ports
- PCIe Cards Compatibility PDF
Sonnet Product Compatibility
