Sonnet Echo II DV T5 Rackmount – 2U Thunderbolt 5 PCIe Expansion System

The Sonnet Echo II DV T5 Rackmount is a professional 2U Thunderbolt 5 expansion system designed to add high-performance PCIe card capability to rack-based workflows. Built for studios, production environments, and enterprise installations, it enables you to integrate two full-length PCIe cards into modern Thunderbolt 5 systems while maintaining clean rack organisation.

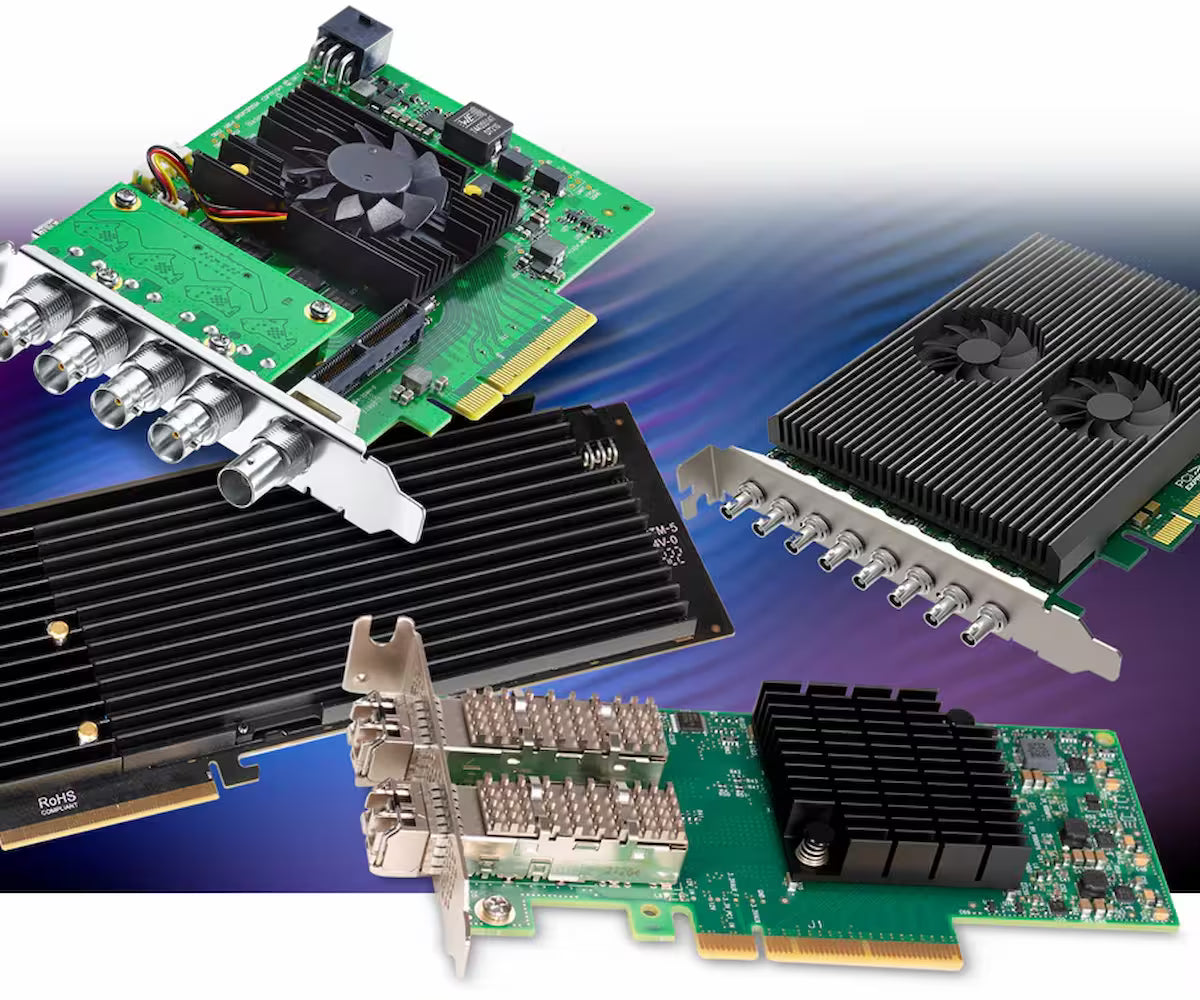

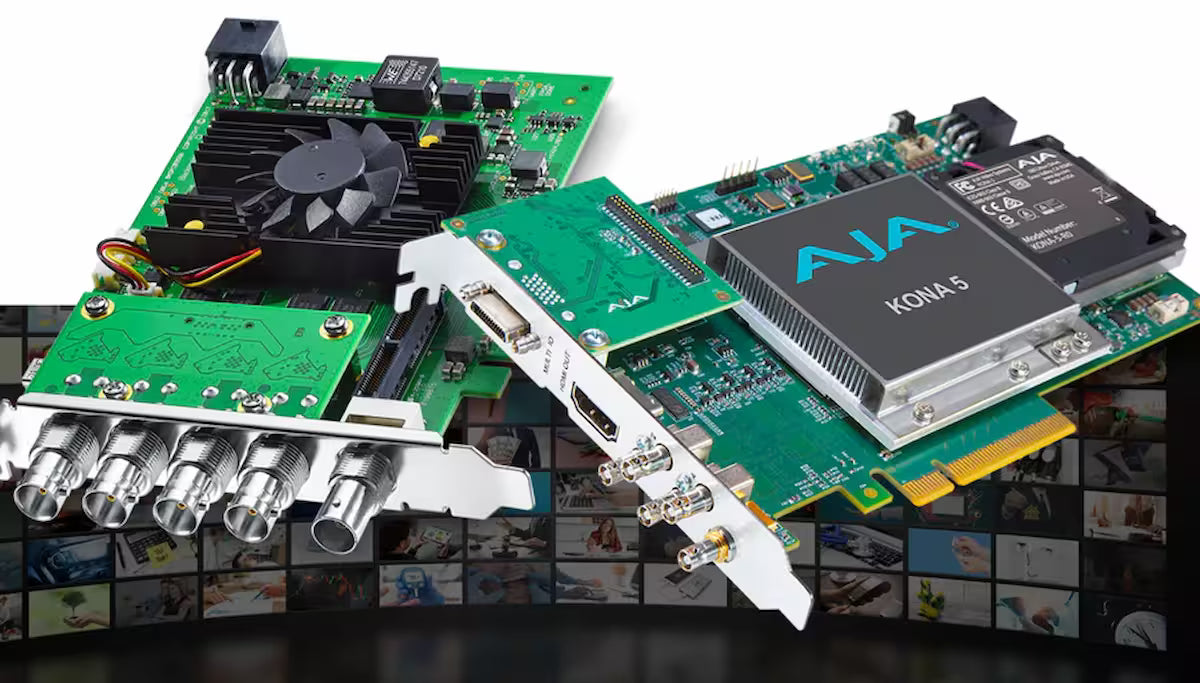

With Thunderbolt 5 connectivity delivering ultra-high bandwidth, the Echo II DV T5 Rackmount is ideal for video capture cards, high-speed networking, storage controllers, and other demanding PCIe hardware. The robust 2U rackmount enclosure ensures reliable cooling, secure installation, and seamless integration into professional AV and IT infrastructures.

Designed for performance and flexibility, this system provides enterprise-level expansion while maintaining compatibility with Thunderbolt 5, Thunderbolt 4, and USB4 host systems.

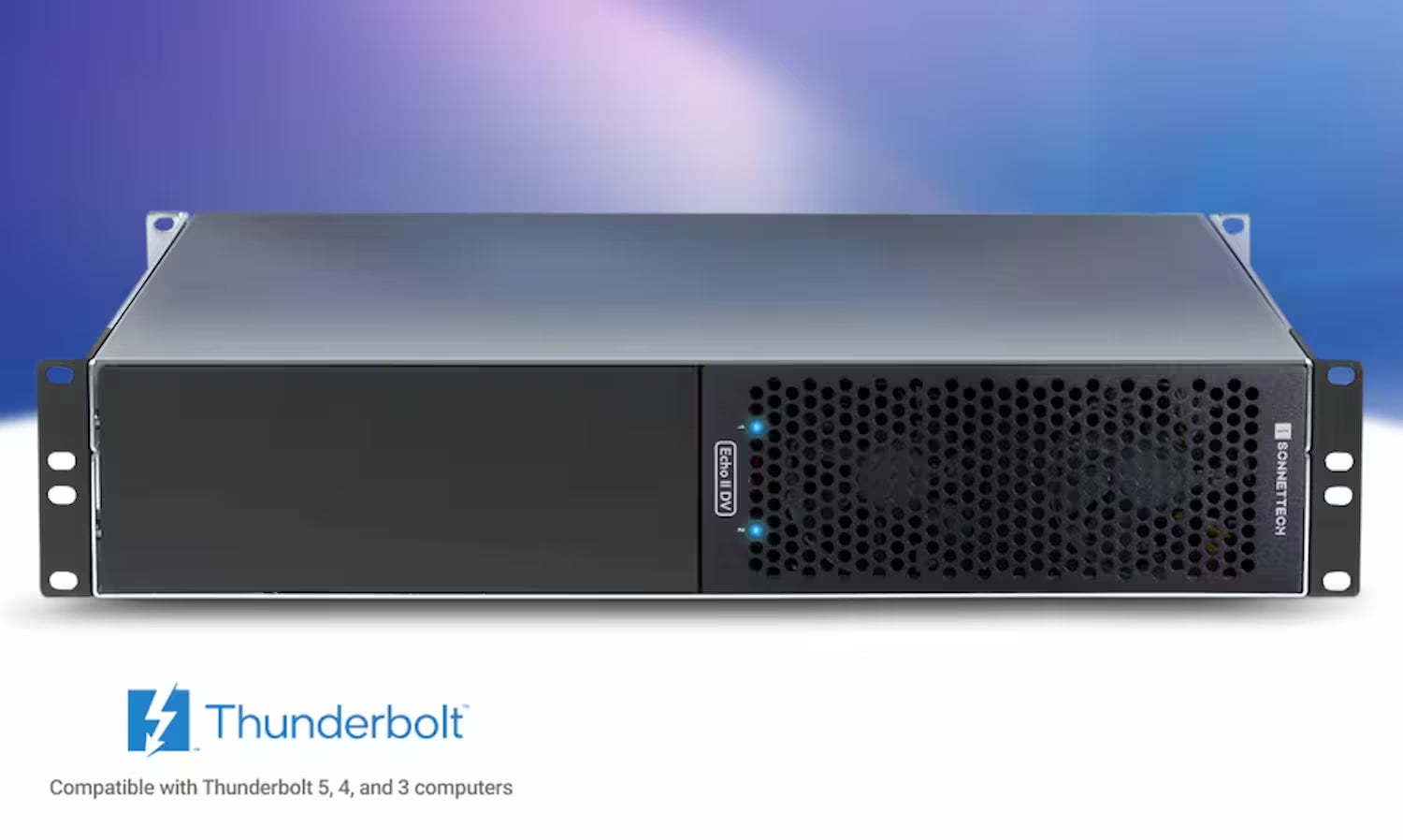

  • 2U rackmount Thunderbolt 5 PCIe expansion system
  • Supports two full-length, full-height, single-width PCIe cards

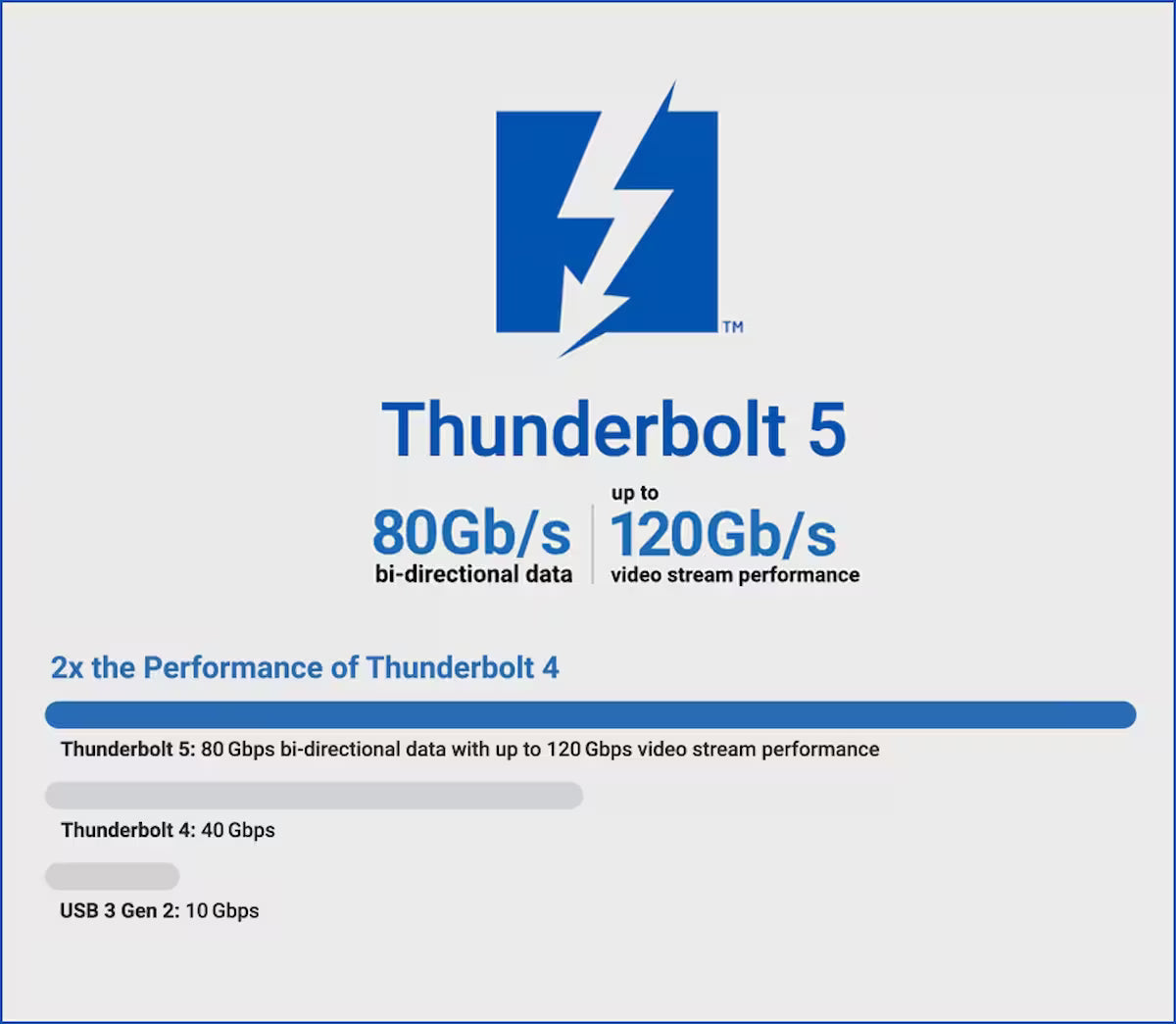

  • High-bandwidth Thunderbolt 5 connectivity

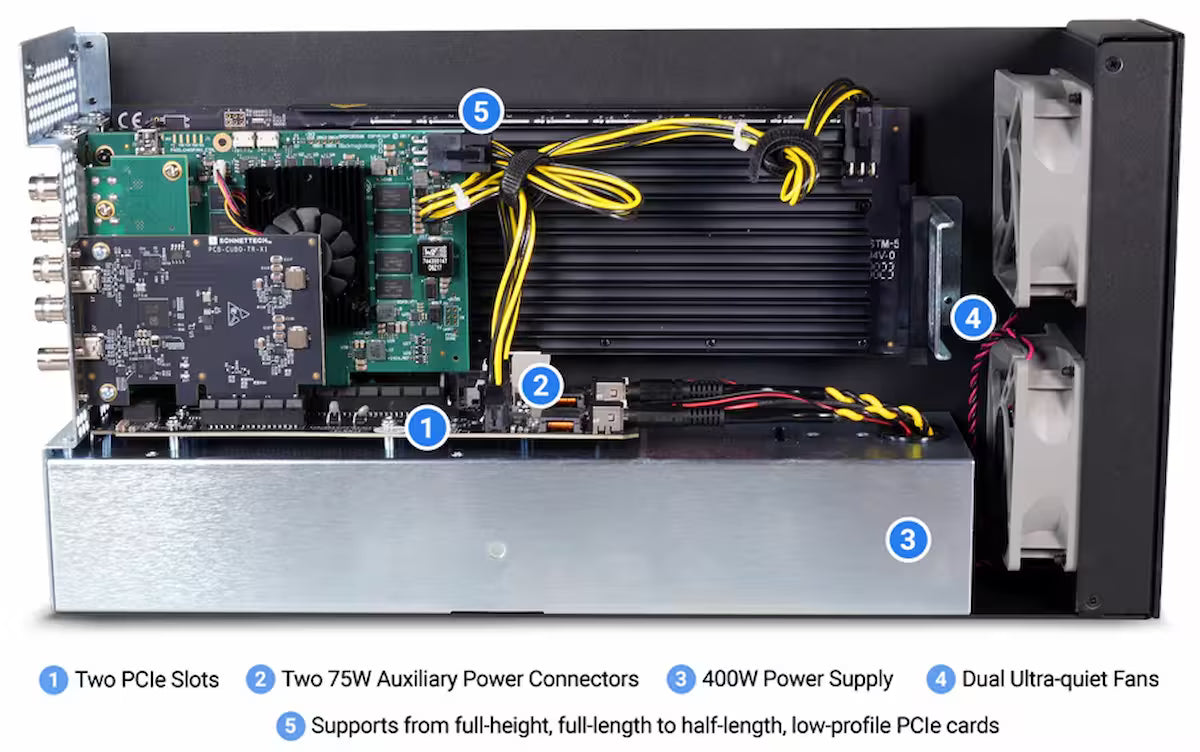

  • Integrated auxiliary power for PCIe cards
  • Professional rack-ready design for studio and enterprise environments
  • Compatible with Thunderbolt 5, Thunderbolt 4, and USB4 systems

Included:

  • Echo II DV T5 Rackmount System
  • Region-specific power cable
  • Two 6-pin PCIe auxiliary power cables (installed)
  • Two 0.8-meter Thunderbolt 5 cables
  • Three ThunderLok-A connector locks
  • Documentation

Product Q&A

Q: How many PCIe cards can this unit support?

A: It supports two full-length, full-height, single-width PCIe cards.

Q: What host connection does it use?

A: It connects via Thunderbolt 5 and is compatible with Thunderbolt 4 and USB4 hosts.

Q: Does it provide power for PCIe cards?

A: Yes, it includes two 6-pin auxiliary power connectors providing up to 75W each.

Q: Is this suitable for rack installations?

A: Yes, it is a 2U rackmount enclosure designed for professional installations.

Q: Are Thunderbolt cables included?

A: Yes, two 0.8-meter Thunderbolt 5 cables are included.

  • Part Number
    ECHO-2RDV-T5
  • Warranty
    2-year
  • Form Factor
    2U Thunderbolt rackmount enclosure

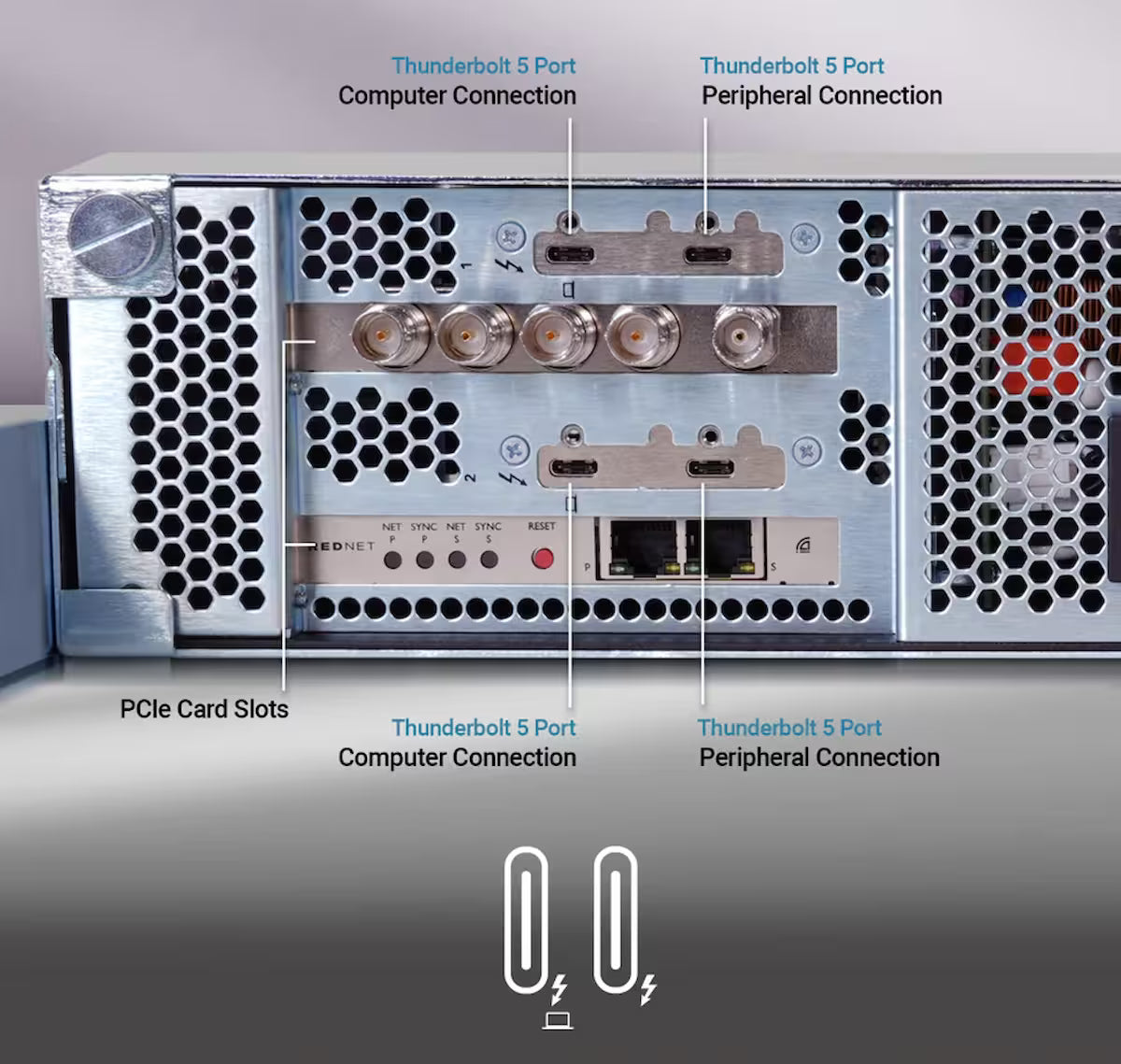

  • External Connectors
    Four Thunderbolt ports
    Power (C14-type)
  • Thunderbolt 5 Computer Ports
    Cables Supported: Thunderbolt 5 or Thunderbolt 4 cables
    Cables Not Supported: Thunderbolt optical cables
  • Thunderbolt Peripheral Ports
    (Note that the downstream ports are not necessarily Thunderbolt 5 ports; they are the same as the host ports (Thunderbolt 5, Thunderbolt 4, or USB4).)
  • Connectivity
    With USB-C connector
  • Peripherals Supported
    Thunderbolt 5, 4, 3 devices
    USB4, 3, 2, 1 devices
    Thunderbolt 5, 4, 3, and USB-C monitors
    DisplayPort and HDMI monitors (Thunderbolt compatible adapter required, sold separately)
  • Internal Connectors
    Two 6-pin auxiliary power; provide up to 75W of power each for PCIe cards that require supplemental power
  • Expansion Slots
    Two x16 mechanical (x4 electrical) PCIe 4.0
  • PCIe Cards Supported
    Two full-length, full-height, single-width PCIe cards
  • Power Supply
    Universal 400W, 115-230V AC, 50-60 Hz
  • Operating Temperature
    0ºC to 35ºC (32ºF to 95ºF)
  • Dimensions (WxDxH)
    3.5 x 16.7 x 9 in. (8.9 x 42.4 x 22.9 cm)
  • Weight
    9.7 lbs (4.40 kg)
  • Compliance
    RoHS 3 (Directive 2015/863)
    IEC62368-1 and IEC62368-2
  • Package Contents
    Echo II DV T5 Rackmount System
    Region-specific power cable
    Two 6-pin PCIe auxiliary power cables (installed)
    Two 0.8-meter Thunderbolt 5 cables
    Three ThunderLok-A connector locks
    Documentation

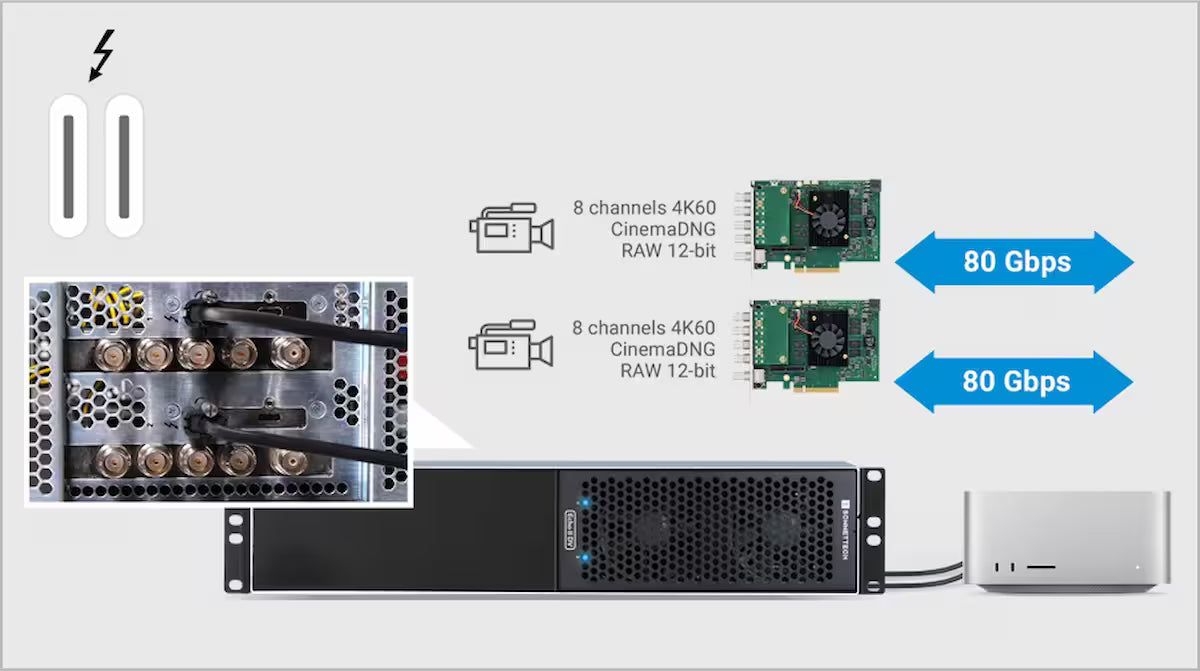

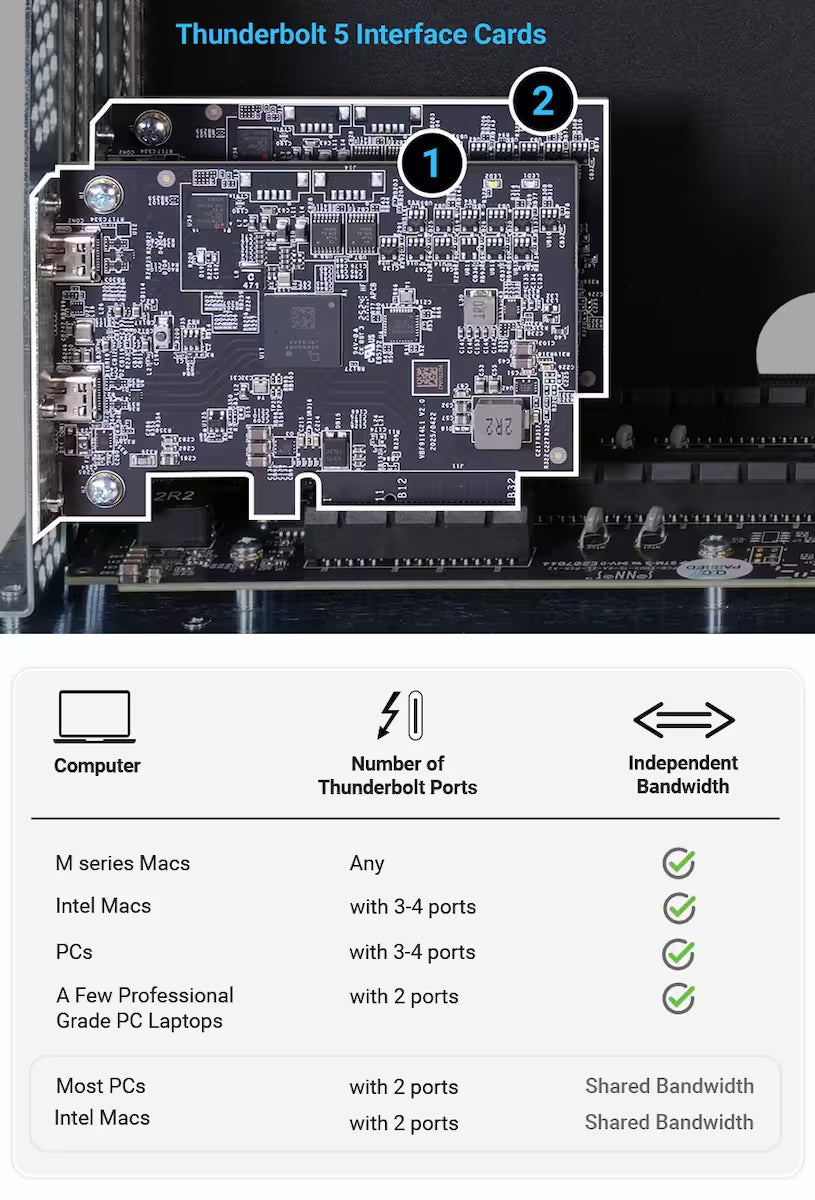

To support maximum performance when using two bandwidth-hungry PCIe cards, Echo II DV T5 Rackmount requires the following:

  • Two connections between the Echo II DV T5 module and the host computer(s) with two Thunderbolt 5 ports with independent PCIe bandwidth.
  • For example:
    Mac (M4 Pro, M4 Max, M3 Ultra series)
    Some pro Windows laptops with two Thunderbolt 5 ports
    Connecting each card to a different Thunderbolt 5 computer

--------------------------------------------------------------------------

  • Mac with Thunderbolt 5 ports
  • Mac with Thunderbolt 4 ports
  • Mac with Thunderbolt 3 ports
  • Windows computer with Thunderbolt 5 ports
  • Windows computer with Thunderbolt 4 ports
  • Windows computer with Thunderbolt 3 ports

Technical Notes
1. Intel Macs with Thunderbolt 3 ports require macOS 15+.
2. USB4 support requires that your computer have a “USB4 Host Router (Microsoft)”. Navigate to Device Manager and expand the Universal Serial Bus controllers category to confirm.
