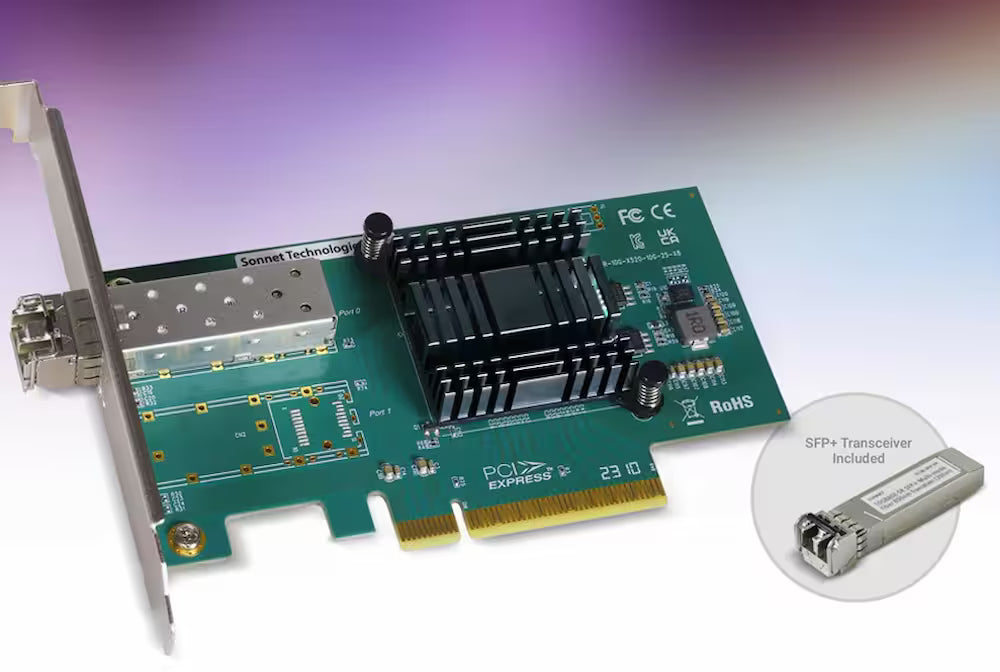

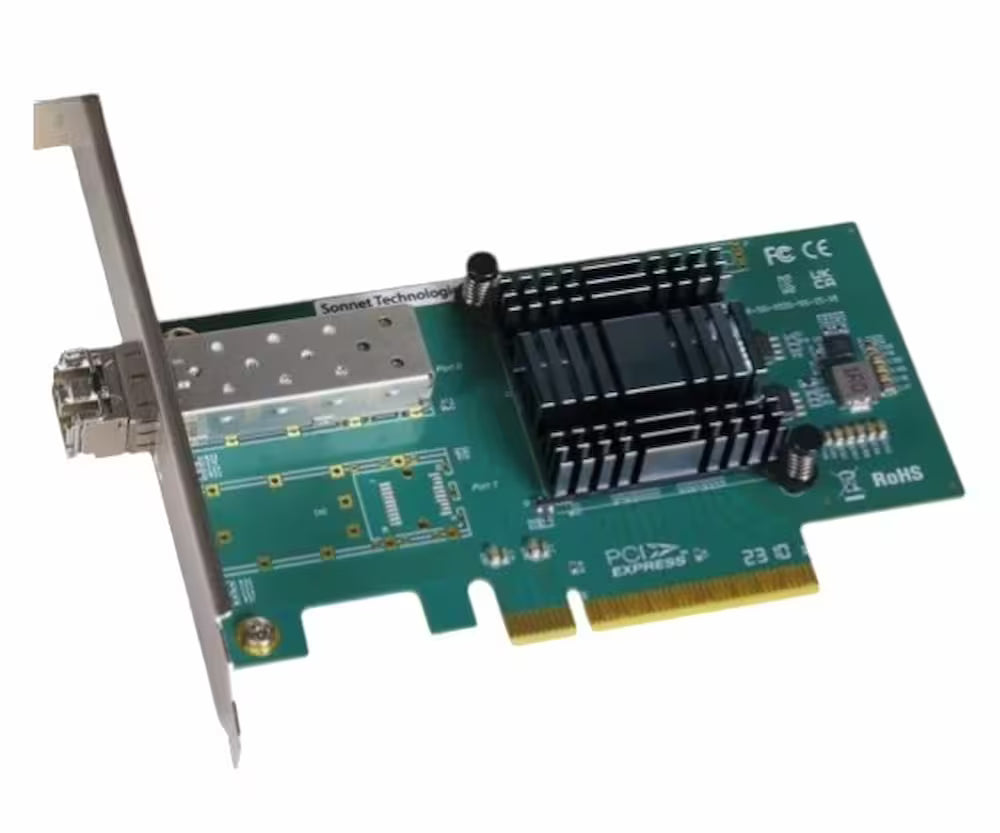

- Sonnet Solo10G SFP+ V2 PCIe Card – 10GbE Optical Network Adapter with SFP+ Transceiver Sonnet Solo10G SFP+ V2 PCIe Card – 10GbE Optical Network Adapter with SFP+ Transceiver














Sonnet Solo10G SFP+ V2 PCIe Card – 10GbE Optical Network Adapter with SFP+ Transceiver
- Description
- Specifications
- Compatibility
- Product videos
- Reviews
Upgrade your system with blazing-fast 10GbE optical networking using the Sonnet Solo10G SFP+ V2 PCIe Card. Designed for Mac Pro, Windows, and Linux computers with PCIe slots, this high-performance adapter delivers ten times the bandwidth of standard Gigabit Ethernet — ideal for high-resolution video editing, large file transfers, and shared storage workflows.
The Solo10G SFP+ V2 includes a short-range multi-mode fiber transceiver for out-of-the-box compatibility with optical 10GbE networks up to 300 meters. Need longer distances? Sonnet offers optional SFP28 transceivers for single-mode fiber up to 10 km.
Setup is simple: install the driver, insert the card into any x8 or x16 PCIe slot (brackets for both full-height and low-profile slots included), and connect it to a switch or 10GbE storage system. Configuration is done directly through your operating system — macOS, Windows, or Linux.
Whether you’re upgrading a Mac Pro or adding 10GbE to a Thunderbolt™ expansion chassis, this card ensures low latency, high bandwidth, and minimal CPU overhead. Backed by Sonnet’s 2-year warranty and lifetime support.
Highlights
- High-performance 10GbE Fiber Networking – Adds fast, reliable 10Gb Ethernet connectivity to Mac Pro (2023/2019), Windows, or Linux systems with PCIe slots
- SFP+ Transceiver Included – Comes pre-installed with a short-range (300m) multi-mode optical SFP+ transceiver
- Easy Setup and OS-Level Configuration – Just install the driver, plug the card into an x8/x16 slot, and configure via macOS, Windows, or Linux settings
- Broad Compatibility – Supports macOS 13+ / 14.4+, Windows 11 / Server 2022–2025, and Linux Kernel 6.1 / 6.12
- Works with Thunderbolt Expansion Chassis – Ideal for use in Sonnet Echo™ or xMac systems without native PCIe slots
- Standards Compliant – RoHS 3, IEC62368-1 and IEC62368-2 certified for safety and environmental compliance
- Complete Kit – Includes PCIe card, short-range SFP+ transceiver, full-height and low-profile brackets, and documentation
- Long-Term Reliability – Backed by a 2-year warranty and lifetime product support from Sonnet
- Trusted Brand – Sonnet has been delivering innovative pro connectivity solutions since 1986
Ultra-fast Optical 10GbE Network Connection

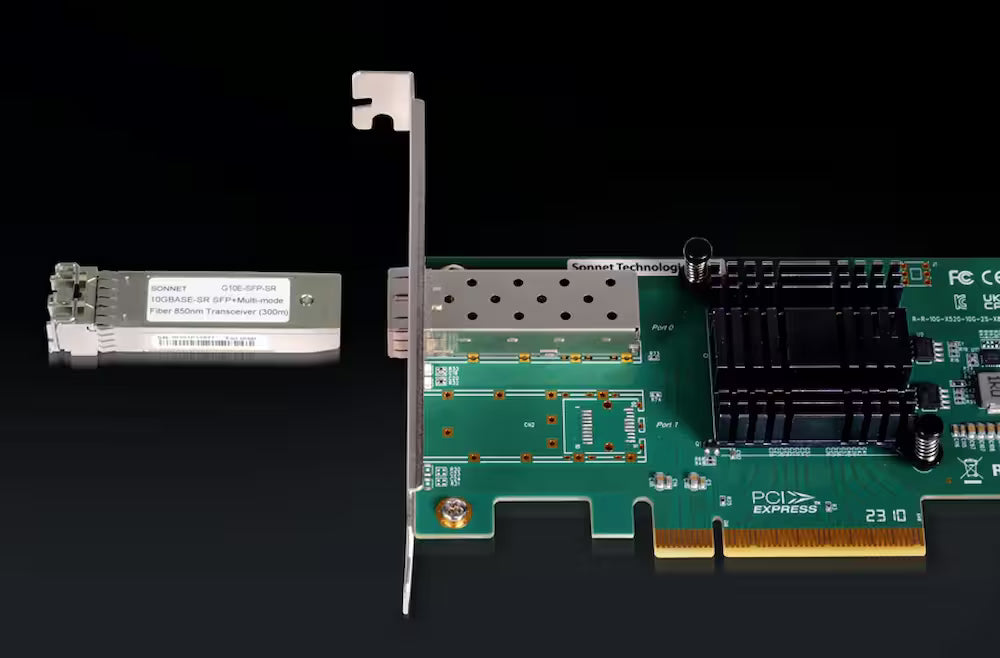

Includes SFP+ Transceiver. Simple Network Connection
10x Performance. More bandwidth – ten times the performance of Gigabit Ethernet

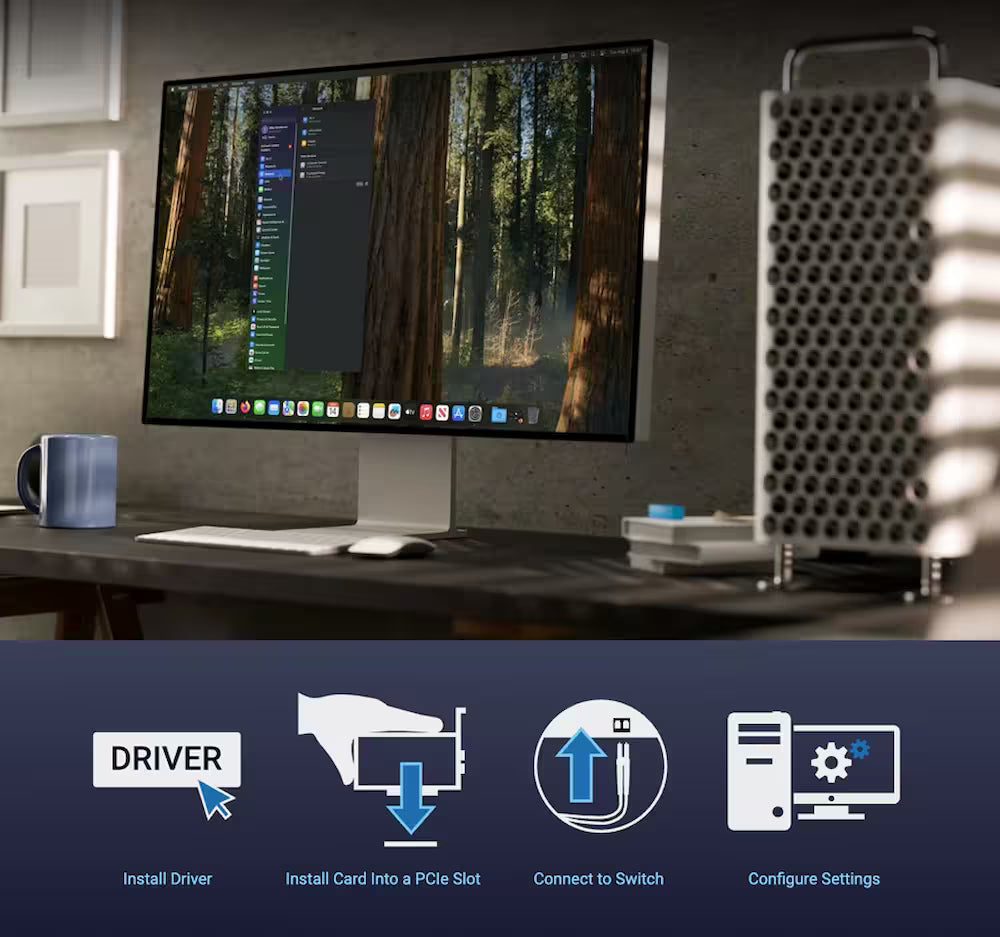

Easy Set-up. Higher-performance Computing

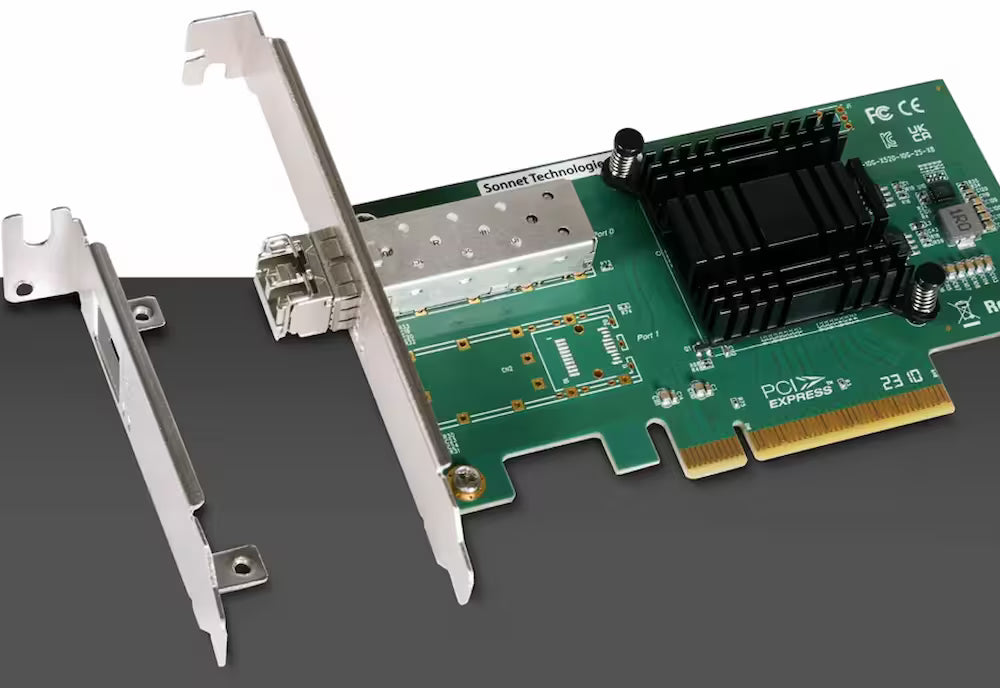

Two Mounting Brackets Included. Installs Into Any PCIe Card Slot
Ideal Addition to Echo and XMac Thunderbolt Expansion Systems
Got Thunderbolt? Unlock Blazing-fast Optical 10Gb Ethernet
Check out Sonnet Solo10G SFP+ Thunderbolt Adapter for computers with Thunderbolt ports
- Part Number: G10E-SFP-1XN-E3
- Warranty: 2-year
- Form Factor: Low-profile x8 PCIe 3.1 card
- External Connector: SFP+ socket (with short-range SFP+ optical transceiver)
- 10GbE Controller: Intel x520
- Network Support: 10Gbps
- Packets: Maximum packet size 15,872 bytes (jumbo frames)
- Data Rates Supported: 10Gbps, 1Gbps
- Advanced Features:
- • Flow control support
- • MSI (Message Signaled Interrupts)
- • RSS (Receive-Side Scaling)
- • Multicast filtering
- • 64-bit address support for systems using more than 4GB of physical memory
- • Wake-on-LAN not supported
- Stateless Offloads:
- • TCP, UDP, and IPv4 checksum offloading
- • TSO (TCP Segmentation Offload, aka Large Send Offload)
- • TRO (TCP Received Offload)
- Compliance: RoHS 3 (Directive 2015/863), IEC62368-1 and IEC62368-2 Safety
- Package Contents:
- • Solo10G SFP+ V2 PCIe Card
- • Short-range SFP+ optical transceiver (installed on PCIe card)
- • Two PCIe mounting brackets (full-height and low-profile)
- • Documentation
- Product Manual: Download PDF
- Mac Compatibility:
- • Mac Pro 14,8 (2023)
- • Mac Pro 7,1 (2019)
- • macOS 13+ and 14.4+
- Windows Compatibility:
- • Windows 11
- • Windows Server 2025 and 2022
- Linux Compatibility:
- • Linux Kernel 6.1
- • Linux Kernel 6.12
- Thunderbolt Expansion System Compatibility:
- • PCIe card installed in a Thunderbolt expansion system with an available x8 or x16 PCIe slot
- • Compatible with any Mac, Windows, or Linux computer with Thunderbolt ports
