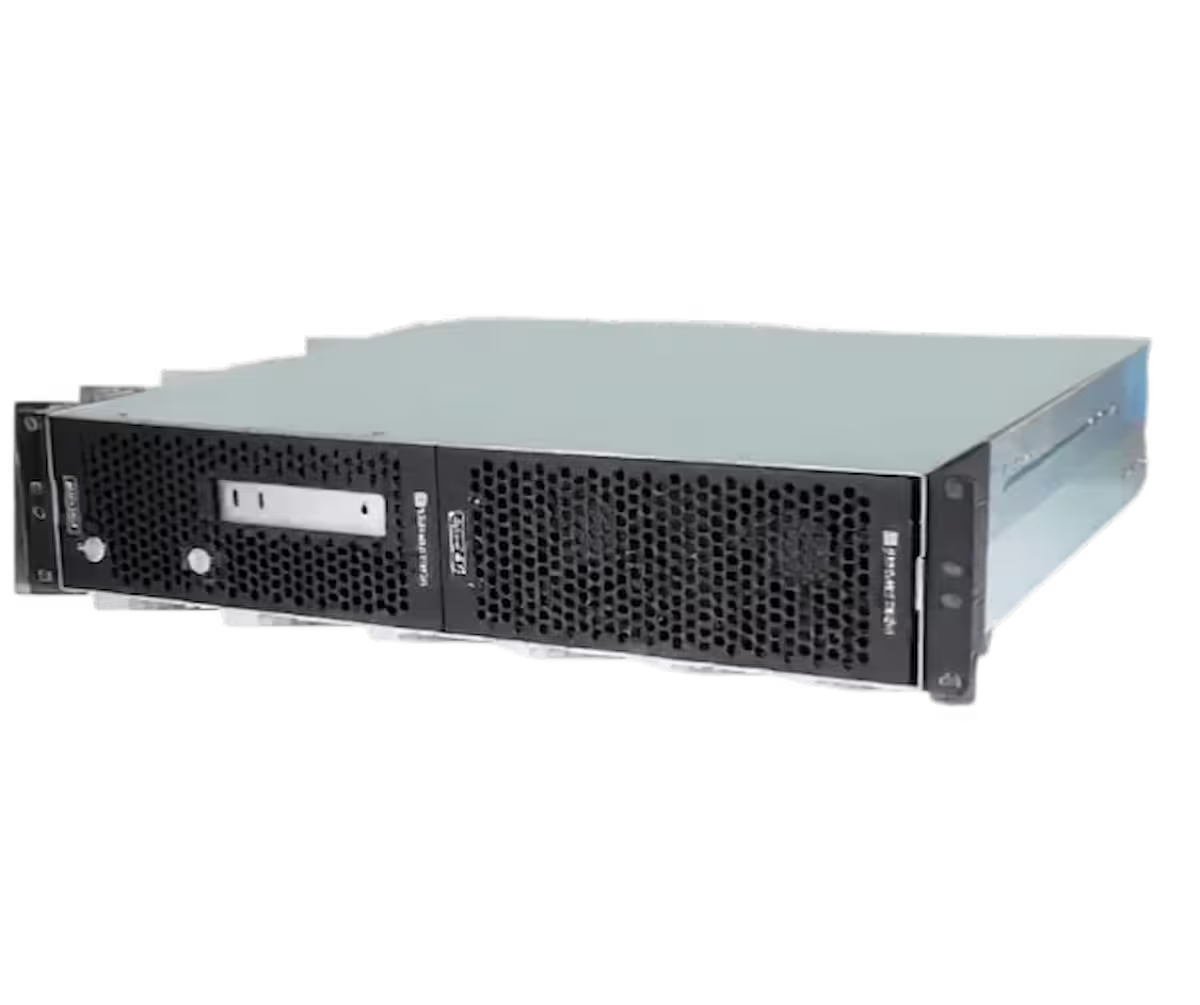

Sonnet xMac Mini (2024+) with Echo II DV T5 – 2U Rackmount Thunderbolt 5 PCIe Expansion System

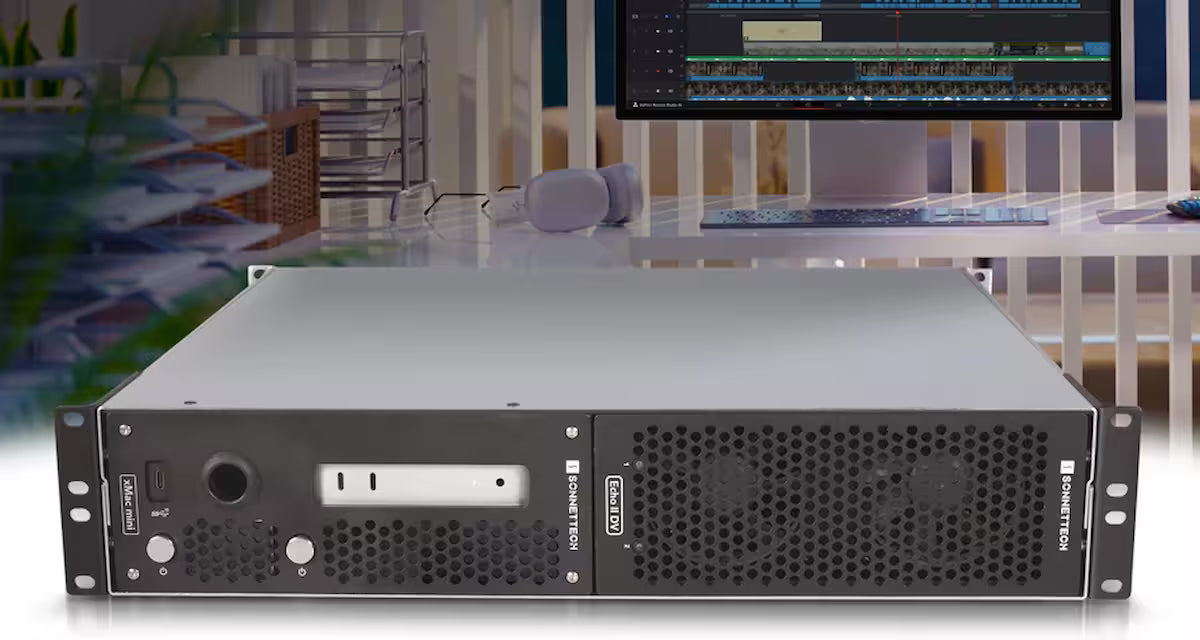

The Sonnet xMac Mini (2024+) with Echo II DV T5 is a professional 2U rackmount solution designed to integrate your Mac Mini 2024+ into a rack environment while adding powerful Thunderbolt 5 PCIe expansion. Built for broadcast, production, post, and enterprise deployments, this system combines secure rack mounting with high-bandwidth PCIe card expansion in a single chassis.

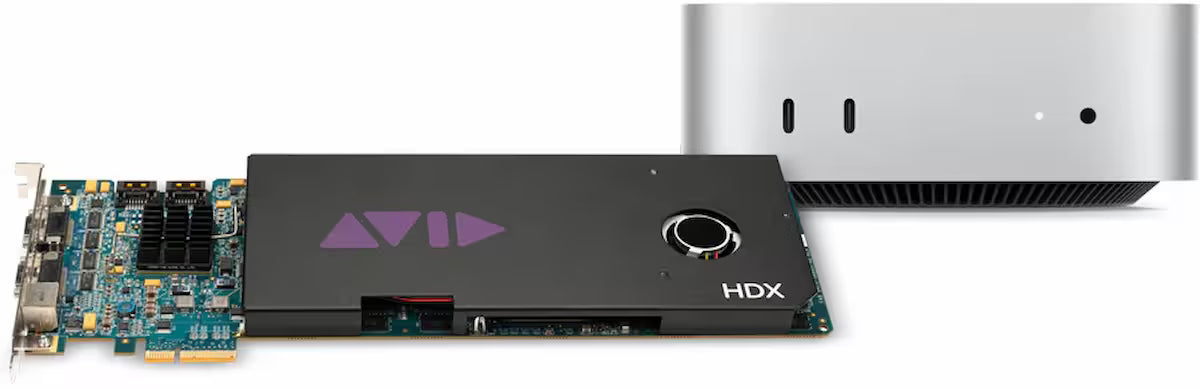

Featuring the included xMac Mini (2024+)and Echo II DV T5 module, this system enables the use of two full-length PCIe 4.0 cards via Thunderbolt 5 connectivity. It delivers the bandwidth required for demanding workflows such as high-speed networking, storage controllers, audio DSP, and video capture — all while maintaining clean rack integration and reliable cooling.
Designed specifically for Mac Mini 2024+ environments, the xMac Mini (2024+) enclosure ensures organised installation, cable management, and enterprise-grade expandability for professional studios and data-driven workflows.

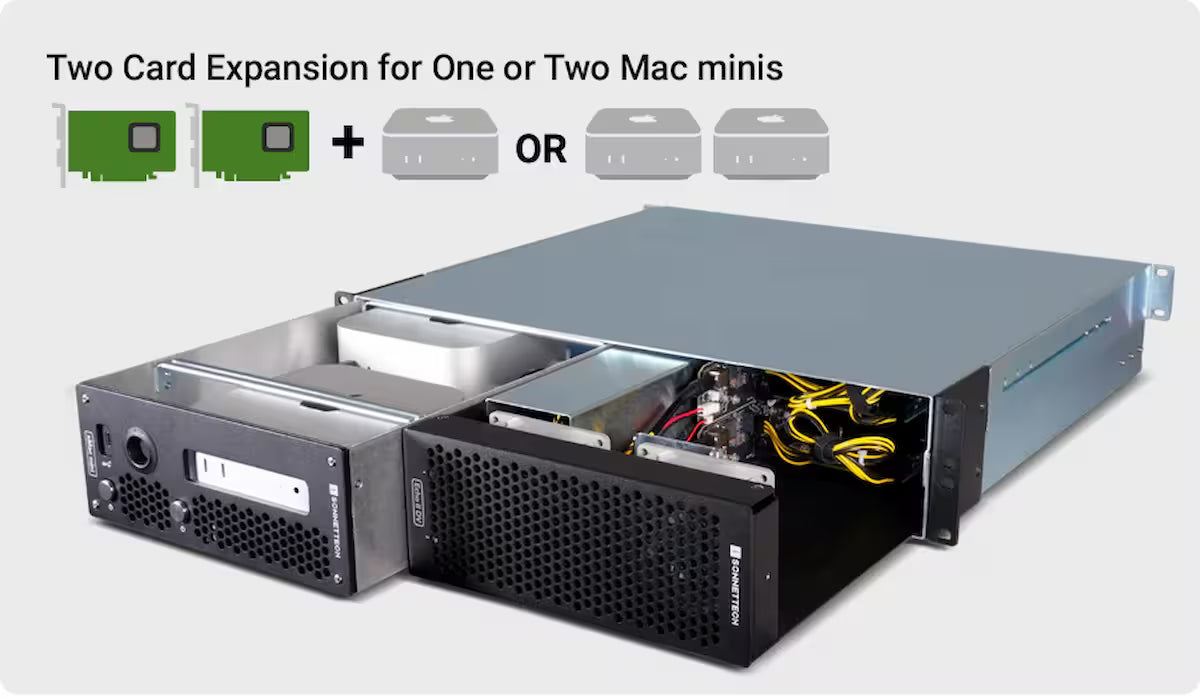

- 2U rackmount enclosure for one or two Mac Mini (2024 models)

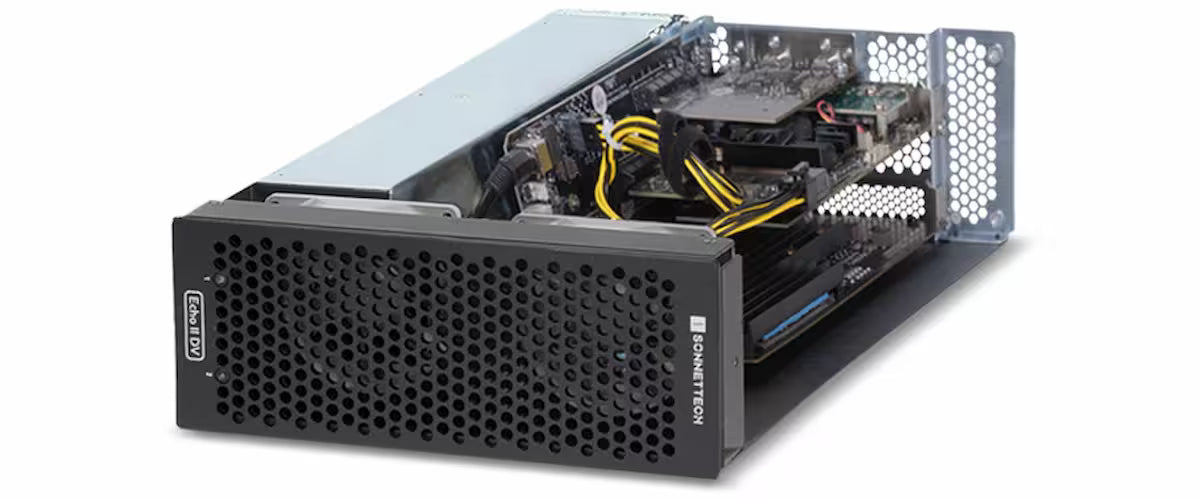

- Includes Echo II DV T5 Thunderbolt 5 to PCIe expansion module

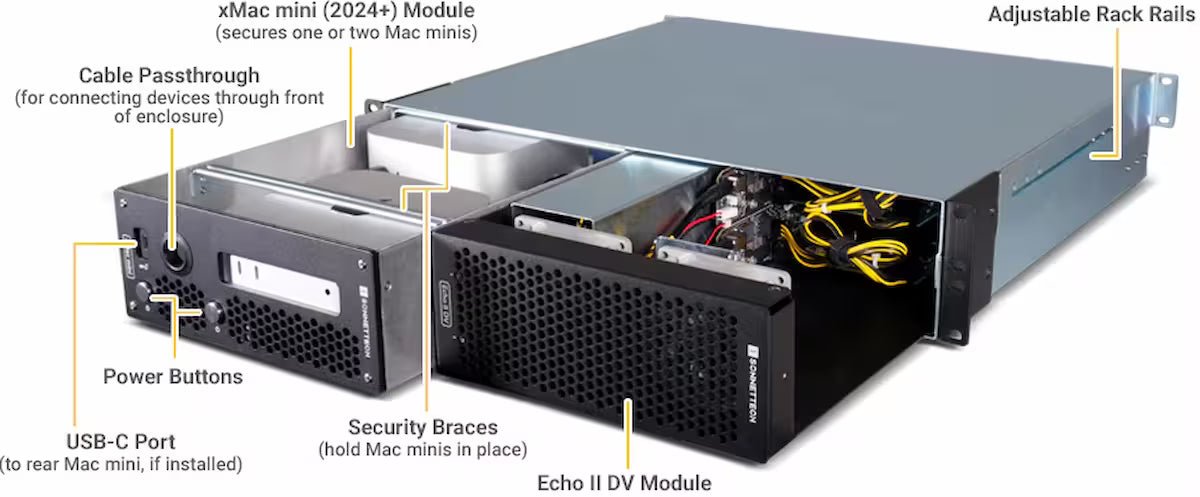

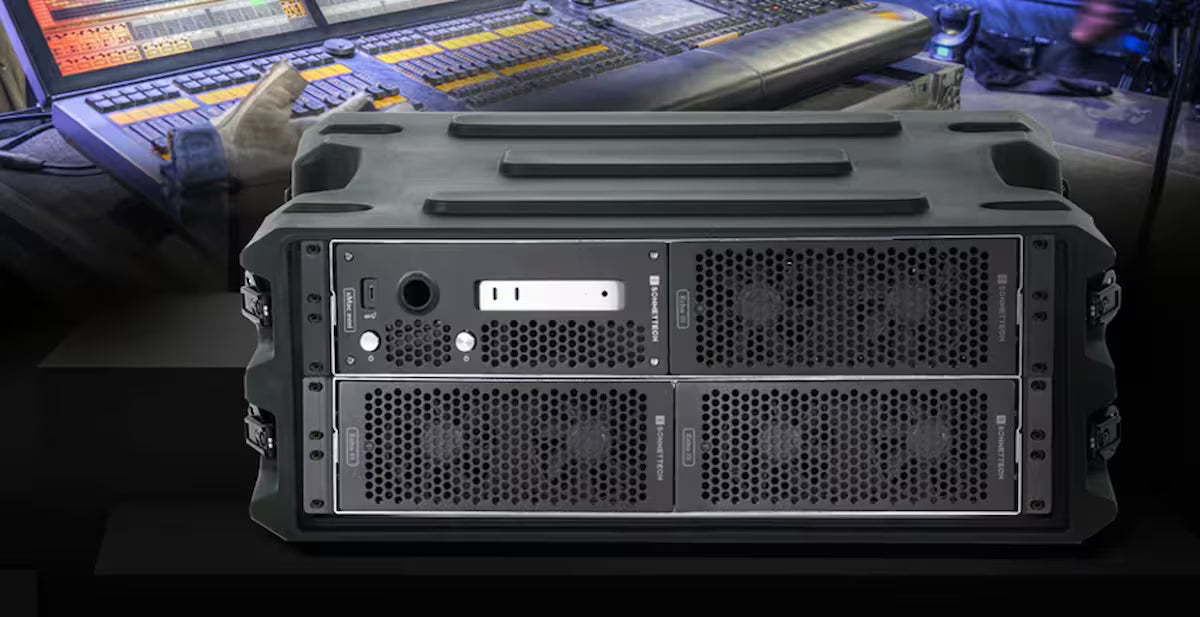

- Makes Your Mac minis Road-ready – A rugged, steel-framed module with rubber-cushioned brackets securely holds Mac minis in place. The 2U rackmount enclosure houses both the computer mounting and Echo II DV T5 modules, enhancing mobility and streamlining your workflow.
- Supports two full-length, full-height, single-width PCIe 4.0 cards
- High-bandwidth Thunderbolt 5 connectivity
- Integrated auxiliary power for demanding PCIe cards
- Professional rack-ready solution for broadcast, studio, and enterprise use
Included:
- xMac Mini (2024+) Enclosure
- Echo II DV T5 Module (2-slot Thunderbolt 5 to PCIe card expansion)
- Region-specific power cable (UK or EU)
- Two 6-pin auxiliary power cables
- Two 0.8-meter Thunderbolt 5 cables
- Two ThunderLok-A connector locks (for securing Thunderbolt 5 cables)
- Extension rails (for rack depth 16-24 inches)

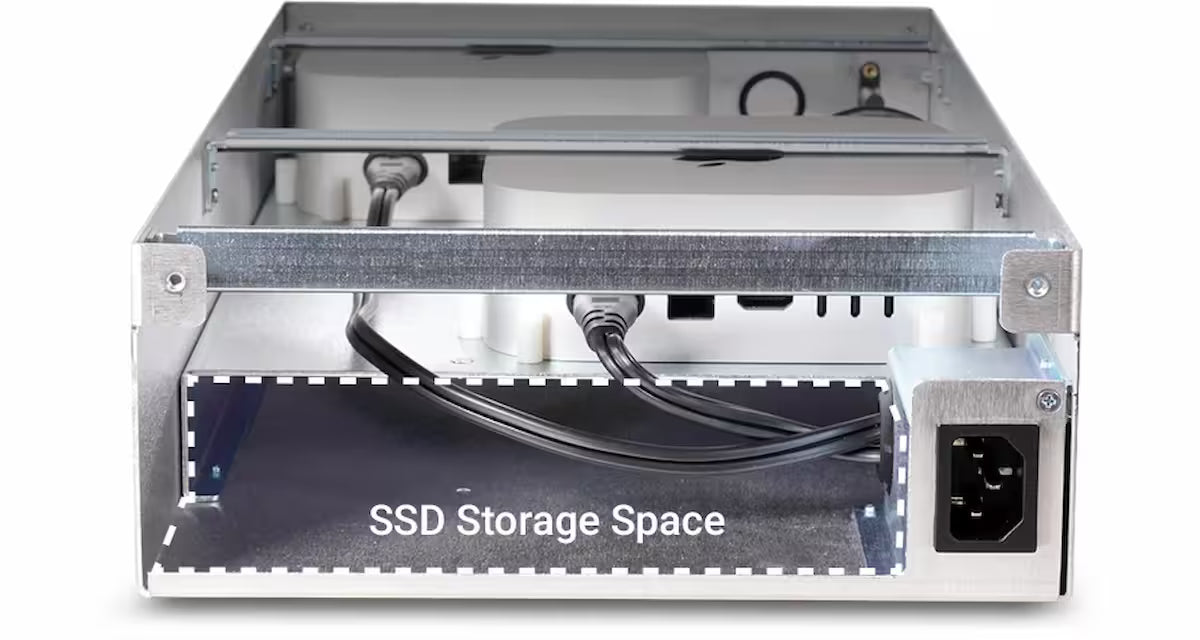

- Two adhesive-backed magnets (for mounting portable SSDs)
- Documentation
Product Q&A
Q: Which Mac models is this designed for?
A: It is designed for Mac Mini (2024+) systems and provides rackmount integration with Thunderbolt 5 PCIe expansion.
Q: How many PCIe cards can it support?
A: It supports two full-length, full-height, single-width PCIe 4.0 cards.
Q: Does it provide auxiliary power for PCIe cards?
A: Yes, it includes two auxiliary power connectors, each providing up to 75W.
Q: What is required for maximum performance?
A: To support maximum performance when using two bandwidth-hungry PCIe cards, the Echo II DV T5 Module requires two connections between the module and Mac Mini (2024+) Thunderbolt 5 ports.
Q: Where can I check PCIe card compatibility?
A: Refer to Sonnet’s PCIe compatibility PDF for a complete supported card list.
Mac Minis not included-just enclosure
Specifications
-
Part Number
XMM-SYS-IIDV-T5 -
Warranty
2-year -
Form Factor
2U rackmount enclosure - Included Echo II DV T5 Module
-
External Connectors
Thunderbolt 5 ports
Power (C14-type) -
Thunderbolt 5 Computer Ports
Cables Supported
Thunderbolt 5 or Thunderbolt 4 cables
Cables Not Supported
Thunderbolt optical cables -
Thunderbolt Peripheral Ports
(Note that the downstream ports are not necessarily Thunderbolt 5 ports; they are the same as the host ports (Thunderbolt 5, Thunderbolt 4, or USB4). -
Connectivity
With USB-C connector -
Peripherals Supported
Thunderbolt 5, 4, 3 devices
USB4, 3, 2, 1 devices
Thunderbolt 5, 4, 3, and USB-C monitors
DisplayPort and HDMI monitors(2) -
Internal Connector
Two auxiliary power; each provides up to 75W of power for PCIe cards that require supplemental power -
Expansion Slots
Two x16 mechanical (x4 electrical) PCIe 4.0 -
PCIe Cards Supported
Two full-length, full-height, single-width PCIe cards -
Power Supply
Universal 400W, 115-230V AC, 50-60 Hz(3) -
Operating Temperature
0ºC to 35ºC (32ºF to 95ºF) -
Dimensions (WxDxH)
19 x 16.5 x 5.2 in. (48 x 41.9 x 13.3 cm) -
SSD Maximum Height
0.7 in. (18 mm) inserted from rear
0.9 in. (23 mm) inserted from front -
Weight
21 lbs (9.53 kg) -
Compliance
RoHS 3 (Directive 2015/863)
IEC62368-1 and IEC62368-2 Safety -
Package Contents
xMac Studio Enclosure
Echo II DV T5 Module (2-slot Thunderbolt 5 to PCIe card expansion)
Region-specific power cable
Two 6-pin auxiliary power cables
Two 0.8-meter Thunderbolt 5 cables
Two ThunderLok-A connector locks (for securing Thunderbolt 5 cables)
Extension rails (for rack depth 16-24 inches)
Two adhesive-backed magnets (for mounting portable SSDs)
Documentation
Compatibility
-
Computer System Requirements
To support maximum performance when using two bandwidth-hungry PCIe cards, Echo II DV T5 Module requires two connections between the module and Mac mini (2024+) Thunderbolt 5 ports -
Mac Compatibility
Mac mini (2024+)
-
PCIe Cards Compatibility
For a list of compatible PCIe cards, see the following PDF
