Sonnet xMac Studio 3U Rackmount System With Echo III Thunderbolt 5 Module

Sonnet xMac Studio 3U Rackmount System with Echo III Thunderbolt 5 Module

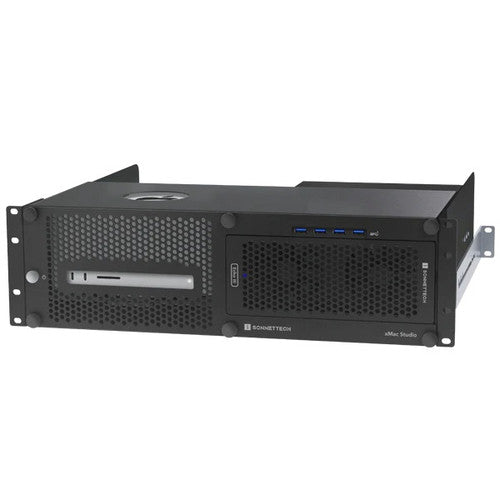

Sonnet xMac Studio with Echo III T5 Module integrates a Mac Studio (sold separately) into a compact, rugged steel 3U rackmount enclosure with a preinstalled 3-slot Thunderbolt 5 to PCIe card expansion module. Together they provide a flexible solution for demanding audio, video and other professional workflows.

The enclosure secures a Mac Studio while the Echo III T5 Module adds three PCIe card slots, so you can use specialty I/O and processing cards, including video capture, audio DSP, 10Gb and 25Gb Ethernet, SSD storage and SAS host bus adapters. The Mac Studio computer and PCIe cards are sold separately.

Features and Benefits

• Connects PCIe Card Slots to Mac Studio - Use high-performance PCIe cards with the Mac Studio. Compatible with all Mac Studio models.
• Echo III T5 Module - Supports three full-height, full-length non-GPU PCIe cards, with three PCIe 3.1 slots (one x16 plus two x8), two Thunderbolt 5 ports, a 400W power supply and dual Noctua fans rated at 17 dBA.
• Thunderbolt 5 to PCIe - 3400 MB/s aggregate, bi-directional PCIe bandwidth to the installed cards when connected to a Thunderbolt 5 computer port.
• 400W of Power - Built-in 400W power supply with 75W auxiliary power connector supports power-hungry cards including Avid Pro Tools | HDX, AJA Kona 5, Blackmagic DeckLink 4K Extreme 12G and 8K Pro G2, and Deltacast 12G/4C. The system powers on and off automatically with the connected Mac Studio.
• Makes Your Mac Studio Road-ready - 3U rackmount enclosure with firm rubber cushions securely holds the Mac Studio and Thunderbolt expansion module in place, adding mobility to your workflow. With a 16.5-inch mounting depth, it also suits travel racks and rack cases.
• Ideal for Use in Server Rooms - Standard mounting holes and included adjustable rack rails enable easy installation into any standard server rack up to 24 inches deep.
• Front to Back Airflow Management - Supports direct airflow through the enclosure, Mac Studio, and Thunderbolt expansion module to keep them operating as cool in a rack as on a desk, even when the xMac Studio is mounted between two other rack-mounted components.
• Front Panel Power Button and Integrated USB-A Ports - Front panel button enables operation of the computer's rear-mounted power switch; integrated USB-A hub enables connection of four USB peripherals to the Mac Studio.
• Easy Access - No tools required - removable front panel secured with thumbscrews allows easy installation of and access to the Mac Studio. Secured with three thumbscrews on the back, the Thunderbolt expansion module can be removed and reinstalled through the front of the enclosure without removing the front plate.
• Space for Storage - Behind a covered opening beneath the computer is a space to place two Thunderbolt or USB SSDs (sold separately); two included adhesive-backed magnets secure them in place.
• Open Slot and Port Access - Provides access to the computer's SD card slot and front and back panel ports, enabling you to connect and disconnect cables easily.
• Connect an Additional Device - The second Thunderbolt 5 port provides 15W of power for an additional Thunderbolt or USB device, and you can connect one 5K display using spare bandwidth.
• 2-year warranty and lifetime technical support

What is in the box

• xMac Studio enclosure with Echo III T5 Module (3-slot PCIe card expansion module, Thunderbolt 5)
• Region-specific power cable
• 6-pin PCIe auxiliary power cable
• 0.8-meter Thunderbolt 5 cable
• ThunderLok-A connector lock (for securing the Thunderbolt cable)
• Extension rails (for rack depth 16-24 inches)
• Two adhesive-backed magnets (for mounting portable SSDs)
• Product documentation
