Key Features
Compatibility
Product Description

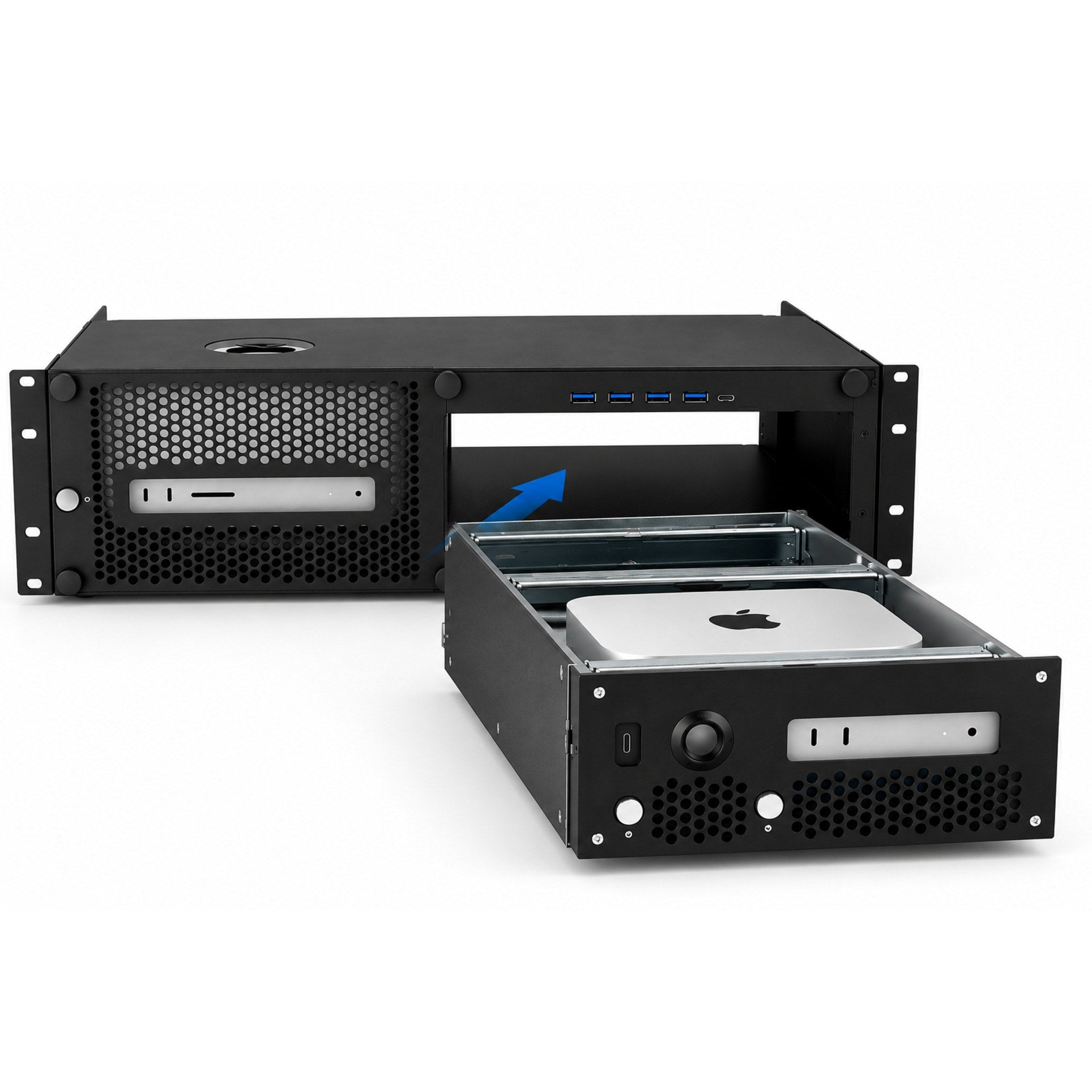

One 3U rack space, two Macs running side by side. This bundle pairs the Sonnet xMac Studio enclosure with the Sonnet xMac mini expansion module, letting you mount a Mac Studio and an M4 or M4 Pro Mac mini in the same rackmount system, without eating a second rack unit or running a tangle of extra cabling across your rack.
Key Features
- Houses a Mac Studio and a Mac mini (M4 or M4 Pro) together in a single 3U rackmount footprint

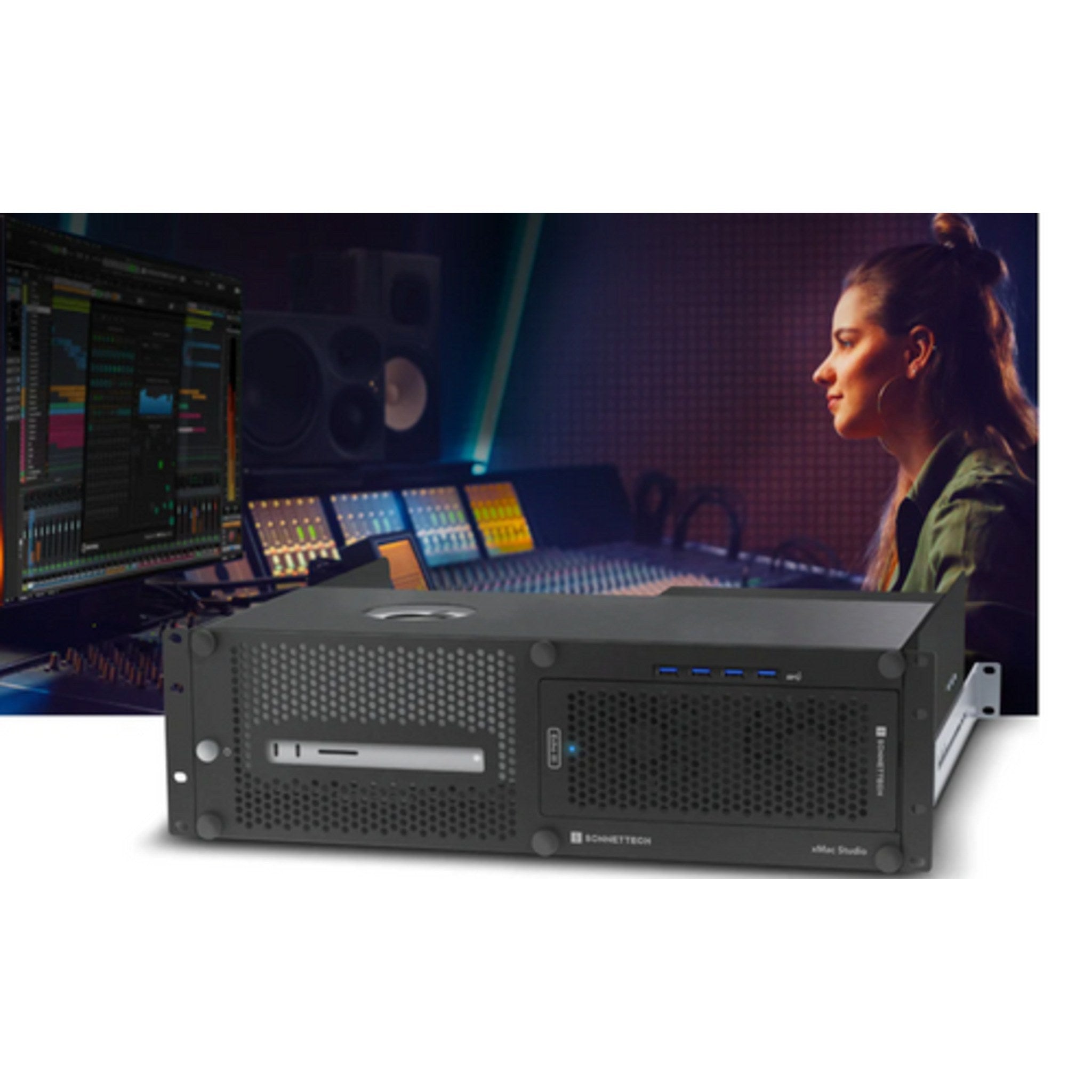

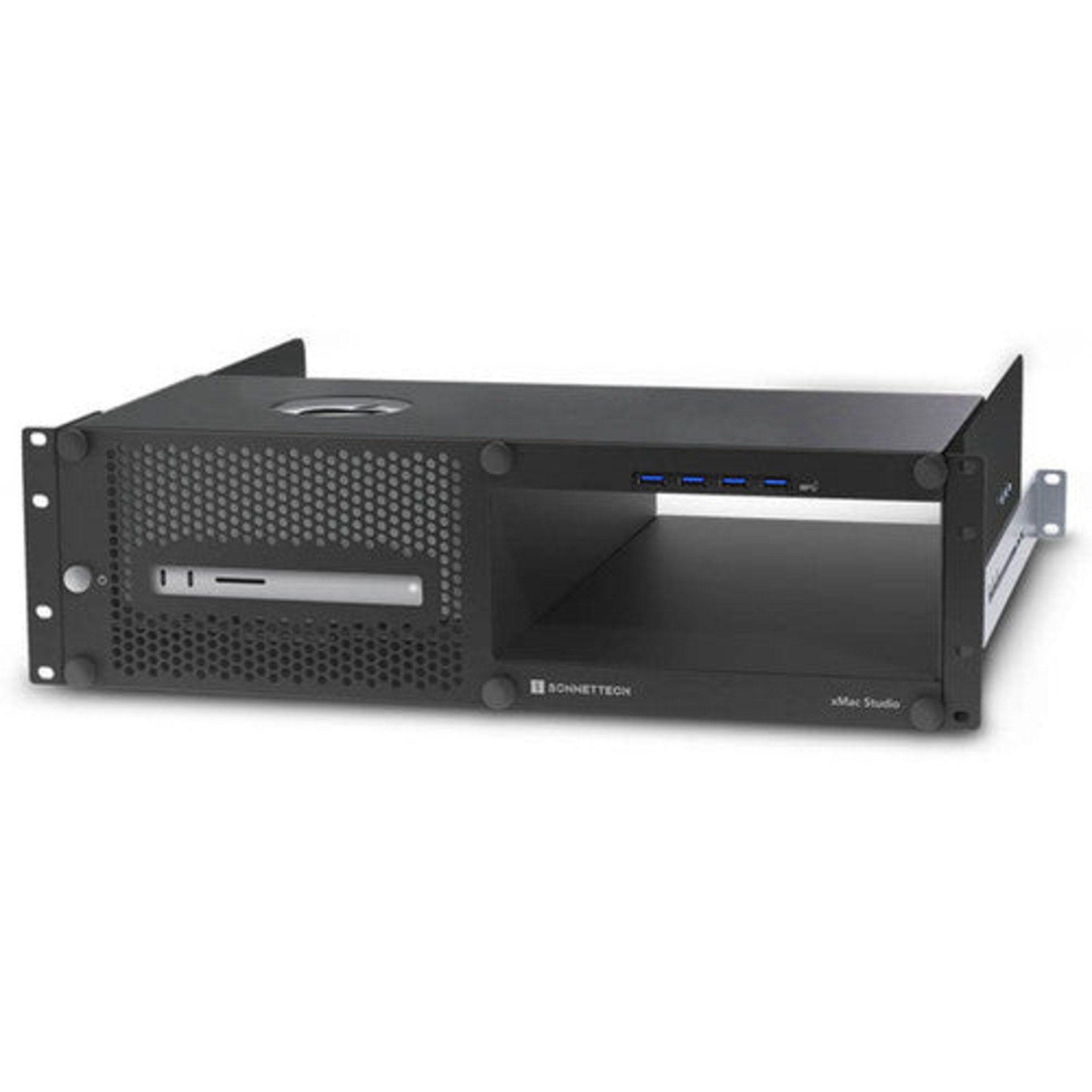

- xMac Studio enclosure secures the Mac Studio behind a removable front panel, with a front-panel power switch and 4-port USB-A hub

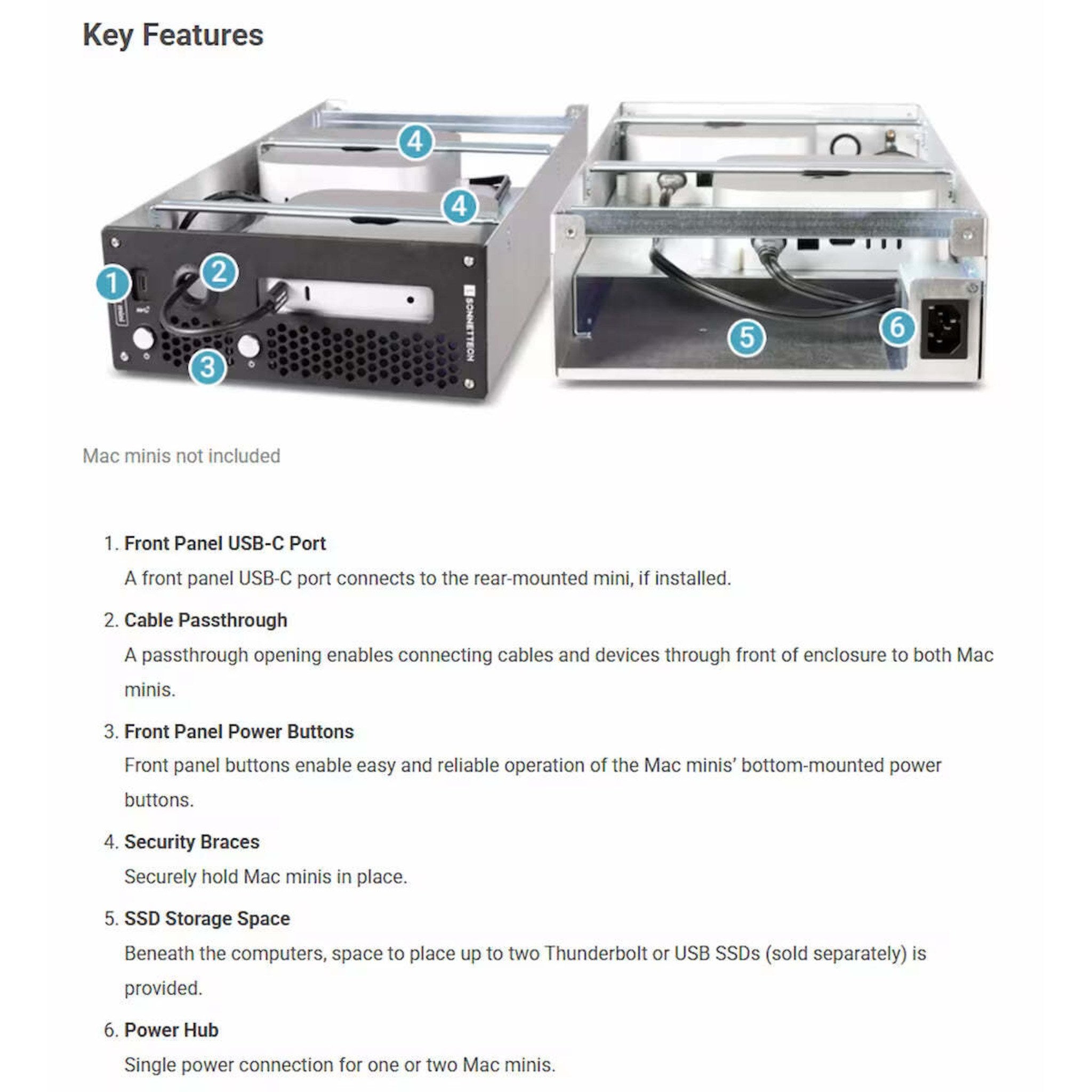

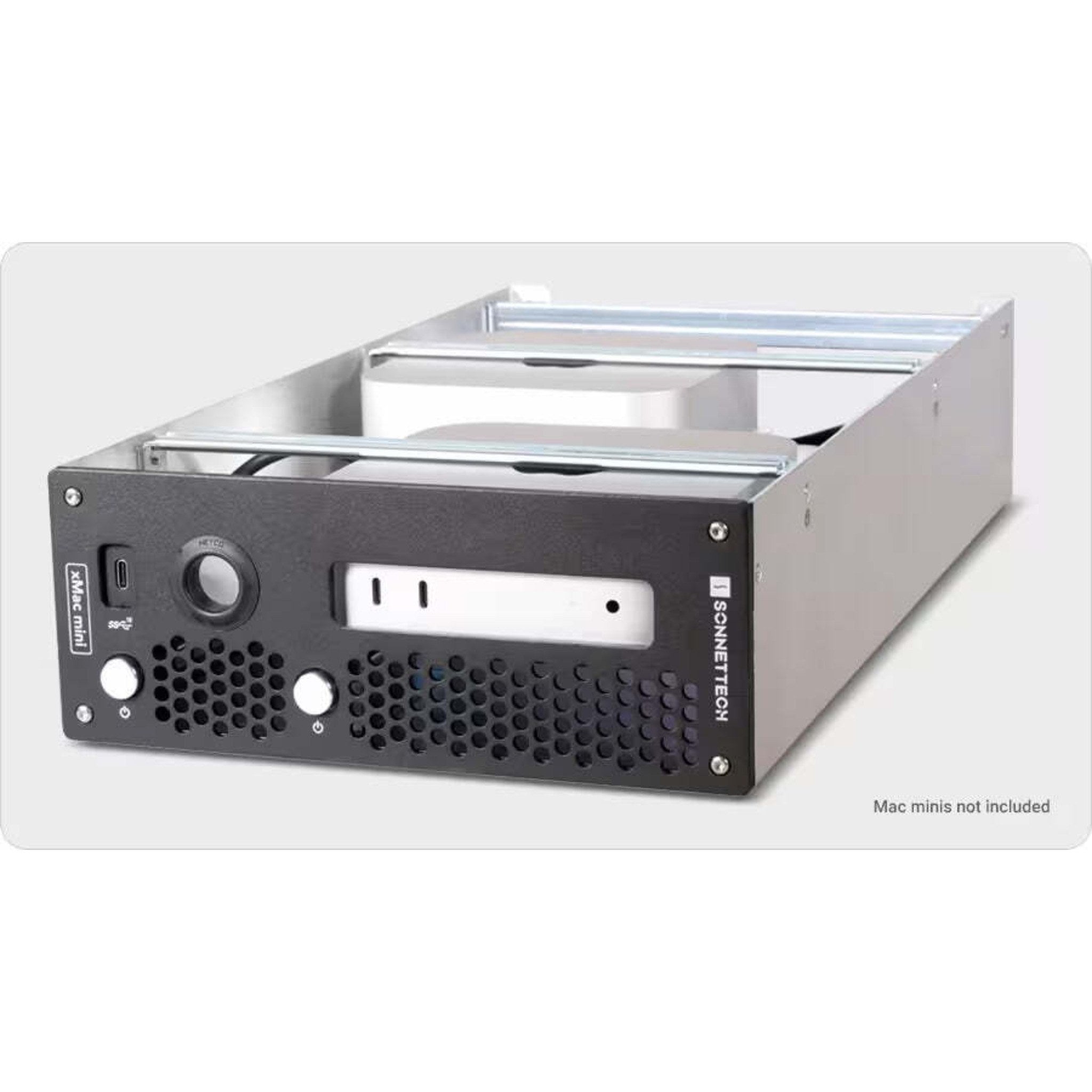

- xMac mini module slots into the same enclosure, giving front-panel access to the Mac mini's power button and ports via USB-C passthrough
- Space beneath the Mac Studio for up to three USB or Thunderbolt SSDs (sold separately), magnet-mounted
- Rugged steel construction on both parts, designed for server rooms, DIT carts, and touring racks
- Front-to-back airflow management keeps both machines running at their normal thermal limits, not rack-trapped heat
- Expansion bay still available for an Echo III or Echo I PCIe card expansion module if you need audio/video card support later
- 2-year product warranty on the enclosure, backed by Sonnet's lifetime technical support
Studios running a Mac Studio for heavy compute and a Mac mini for a secondary task (encoding, monitoring, a lightweight render node) usually end up with two machines taking up two separate shelves or two rack units, plus whatever cable management chaos comes with it. This bundle collapses that into one enclosure: the Mac Studio sits on one side behind Sonnet's quick-release front panel, and the xMac mini module occupies the other, holding the Mac mini with its own front-accessible power button and a USB-C passthrough so you're not reaching around the back of the rack to plug anything in.
Both units keep their normal operating characteristics. The enclosure's open-back design and front ventilation mean neither Mac is sitting in a sealed box recycling its own hot air, so you get the same thermal behaviour you'd see on a desk, just rack-mounted and road-ready.
What's in the Box
- Sonnet xMac Studio 3U rackmount enclosure
- Sonnet xMac mini (2024+) expansion module
- Rack mounting rails (16-24 inch depth)
- Two adhesive-backed SSD mounting magnets
- Region-specific power cable for the xMac mini module
- Documentation for both units
Do the Mac Studio and Mac mini run independently, or is this some kind of combined system?
Independently. This is a rackmount housing solution, not a networking or clustering product. Each Mac keeps its own OS, storage, and connections; the bundle just lets both machines live in the same 3U rack space with front-panel access to power and ports.
Which Mac mini models fit the expansion module?
The Apple Mac mini (2024 or newer), in either the M4 or M4 Pro configuration.
Which Mac Studio models fit the enclosure?
Any Mac Studio from the M1 Max/M1 Ultra generation through the current M4 Max generation. See the Compatibility tab for exact model numbers.
Can I still add a PCIe card expansion module later?
Yes. The xMac Studio enclosure keeps its expansion bay for an optional Sonnet Echo III or Echo I PCIe card expansion module, sold separately, if you need to add audio or video capture cards down the line.
Is storage included?
No. The enclosure has physical space for up to three USB or Thunderbolt SSDs beneath the Mac Studio, secured with the included adhesive-backed magnets, but the drives themselves are sold separately.
Specifications
| Sonnet xMac Studio enclosure | |
| Part Number | XMAC-STD-0 |
| Form Factor | 3U rackmount enclosure |
| External Connectors | Four USB-A ports |
| Dimensions (W x D x H) | 19 x 16.5 x 5.2 in (48 x 41.9 x 13.3 cm) |
| SSD Max Height | 0.7 in (18mm) rear-inserted / 0.9 in (23mm) front-inserted |
| Weight | 16 lbs (7.26 kg) |
| Compliance | RoHS 3 (Directive 2015/863), IEC62368-1 and IEC62368-2 Safety |
| Warranty | 2-year |
| Sonnet xMac mini expansion module | |
| Part Number | XMM-MOD |
| Form Factor | 2U half-width rackmount module |
| External Connectors | USB-C port, Power (C14-type) |
| Dimensions | 19.7 x 14 x 6.5 in (50 x 35.56 x 16.51 cm) |
| Weight | 7.01 lb (3.18 kg) |
| Bundle Package Contents | |
| xMac Studio enclosure, xMac mini expansion module, region-specific power cable, documentation | |
xMac Studio Product Manual (PDF)
Compatibility
Mac Studio (fits the xMac Studio enclosure):
- 2022 Mac13,1 - A2615 - EMC3988 - M1 Max
- 2022 Mac13,2 - A2615 - EMC3988 - M1 Ultra
- 2023 Mac14,13 - A2901 - EMC8292 - M2 Max
- 2023 Mac14,14 - A2901 - EMC8292 - M2 Ultra
- 2025 Mac15,14 - M3 Ultra
- 2025 Mac16,9 - M4 Max
Mac mini (fits the xMac mini expansion module):
- Mac mini (2024) - M4
- Mac mini (2024) - M4 Pro
