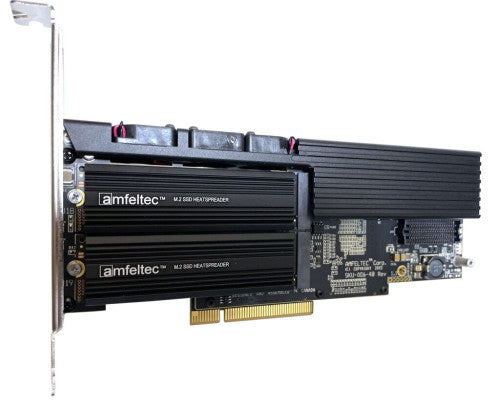

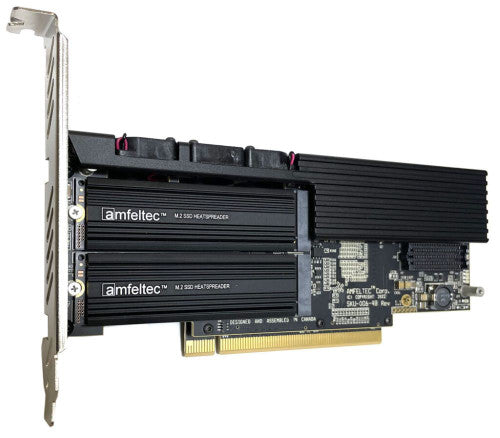

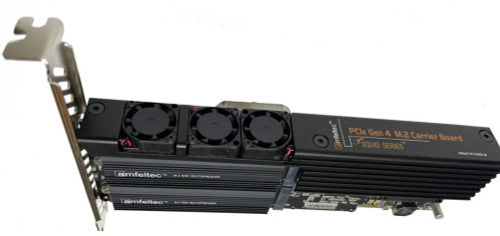

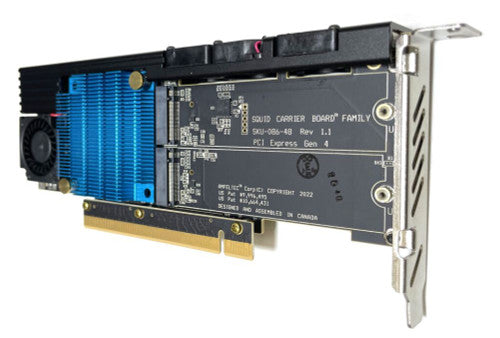

This Squid PCIe Gen 4 Carrier board can support up to four M.2 PCIe SSD (solid state drive) modules with M-key.
The Carrier board supports M.2 (2280; M-key) PCIe Gen 4 SSD modules of any capacity, from any vendor, and in any combination.
The open-concept design of our Squid Carrier Board family allows easy SSD module installation/replacement.The operating system recognizes each module as an individual hard disk and can combine them as a RAID.
This is a one-slot-wide carrier board. It is based on our patented architecture where the carrier board is in the middle of the PCI express slot and connects to the motherboard PCI express connector by exchangeable x16 or x8 PCI Express upstream adapters (US Pat. 9,996,494; US Pat. 10,664,431).PCI Express Carrier board is compliant with PCI Express Specification 4.0 and M.2 Specification 3.0.
Specifications
- Unique half-height (2U) / half-length PCI Express Gen 4 carrier board for up to four (4) M.2 Gen 4 modules.
- Easy “Plug & Play” installation, no drivers needed.
- Compatible with any motherboard; doesn’t require motherboard bifurcation.
- x16 or x8 PCIe Gen 4 (16.0 Gbps) upstream connection to the motherboard.
- x4 PCI Express Gen 4 (16.0 Gbps) connection to each of M.2 circuits.
- Supports any type of 2280 M.2 modules (M-key)
- Standard one-slot-wide PCI Express board
- (US Pat. 9,996,494; US Pat. 10,664,431).
- Open concept: effective heat dissipation & easy SSD module installation.
- Real-time performance and temperature monitoring via USB connection.
- Compliant with PCIe Specification 4.0 and M.2 Specification 3.0.
- Dimension: 168 mm x 69 mm.
- RoHS-compliant
- Standard Package Includes:
- PCIe Gen 4 Carrier Board
- x16 (default) or x8 PCI Express upstream Adapter
- Four heat sinks for each SSD module
- Part Number:
- SKU-086-44 Squid PCIe Gen 4 Carrier Board for four M.2 PCIe Gen 4 SSD modules (M-key) (x16 PCI Express upstream Adapter (default))
- Downloads:
- Block Diagram
- Product Manual
- Options:
- Low profile PCI Express bracket
- x8 PCI Express upstream interface
Compatibility
- Compatible with any motherboard, doesn’t require motherboard bifurcation.
- Unique half-height (2U) / half-length PCI Express Gen 4 carrier board for up to four (4) M.2 Gen 4 modules.
