OWC Envoy Pro 1A USB Enclosure For PCIe SSD from Apple Mac 2013 to 2019

• Number of Bays: 1
• Mechanisms Supported: Specifically designed for use with the factory-installed SSD from most 2013 to 2019 Mac models, and select OWC SSDs, including Aura Pro X2, Aura Pro X, Aura N2, and Aura N.
• Boot Support: Mac only
• Device Ports: (1) USB 3.2 Gen 2 Micro-B Port
• Data Transfer Rate (Maximum):
  • USB 3.2 Gen 2: Up to 10 Gb/s (or 1250 MB/s)
  • USB 2.0: Up to 480 Mb/s (or 60 MB/s)
• Chipset / Controller: JMS-586
• MTBF (Mean Time Between Failures): Varies depending on drive mechanism installed
• Contact Start Stops: Varies depending on drive mechanism installed
• Host Interface Requirements: USB-A or USB-C1 Port
• External Power Adapter: No
• Power Supply: Bus-powered
• Security Slot: No
• Power/Activity LED: Yes
• Housing Color: Silver
• Housing Material: Aluminum
• Dimensions:
  • Height: 1.1 cm (0.4 in)
  • Length: 11.4 cm (4.5 in)
  • Width: 5.4 cm (2.1 in)
• Weight: 96.0 g (0.21 lbs)
• Reach Certification: Yes
• Country of Origin: Taiwan
• TAA Compliance: Yes
• Ambient Temperature: Non-Operating: 41°F to 104°F (5°C to 40°C)
• Altitude:
  • Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
  • Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
• Noise: dB
• Notes:
  • Works on any USB-C port with a USB-A to USB-C adapter (available separately).
  • When using the Envoy Pro 1A with drives that have a heatsink, the cover of the Envoy Pro 1A will need to remain off. However, prolonged use without the cover is not recommended. NOTE: Removing the heat sink to apply the Envoy Pro 1A cover is not supported and may void the drive manufacture warranty. Please review the warranty information of the heat sink drive desired for installation.

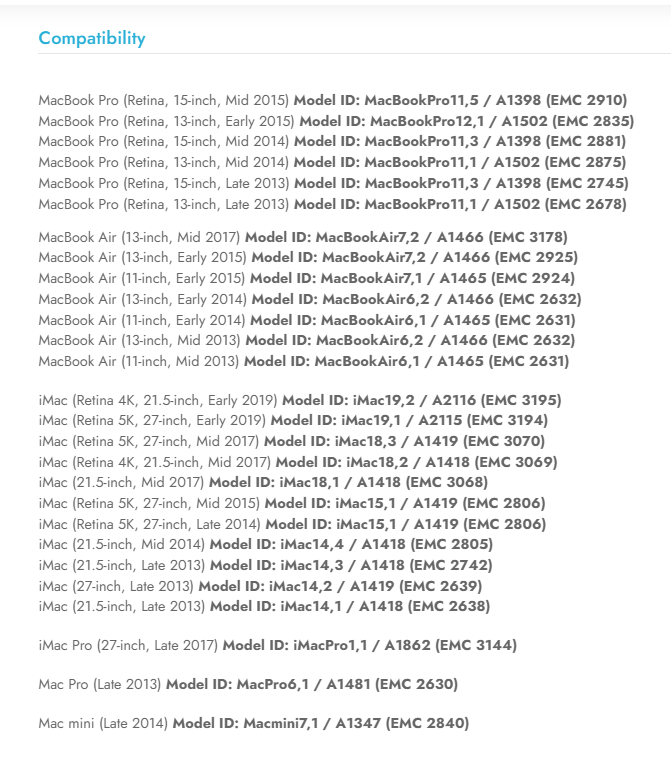

MacBook Pro

• (Retina, 15-inch, Mid 2015) Model ID: MacBookPro11,5 / A1398 (EMC 2910)
• (Retina, 13-inch, Early 2015) Model ID: MacBookPro12,1 / A1502 (EMC 2835)
• (Retina, 15-inch, Mid 2014) Model ID: MacBookPro11,3 / A1398 (EMC 2881)
• (Retina, 13-inch, Mid 2014) Model ID: MacBookPro11,1 / A1502 (EMC 2875)
• (Retina, 15-inch, Late 2013) Model ID: MacBookPro11,3 / A1398 (EMC 2745)
• (Retina, 13-inch, Late 2013) Model ID: MacBookPro11,1 / A1502 (EMC 2678)

MacBook Air

• (13-inch, Mid 2017) Model ID: MacBookAir7,2 / A1466 (EMC 3178)
• (13-inch, Early 2015) Model ID: MacBookAir7,2 / A1466 (EMC 2925)
• (11-inch, Early 2015) Model ID: MacBookAir7,1 / A1465 (EMC 2924)
• (13-inch, Early 2014) Model ID: MacBookAir6,2 / A1466 (EMC 2632)
• (11-inch, Early 2014) Model ID: MacBookAir6,1 / A1465 (EMC 2631)
• (13-inch, Mid 2013) Model ID: MacBookAir6,2 / A1466 (EMC 2632)
• (11-inch, Mid 2013) Model ID: MacBookAir6,1 / A1465 (EMC 2631)

iMac

• (Retina 4K, 21.5-inch, Early 2019) Model ID: iMac19,2 / A2116 (EMC 3195)
• (Retina 5K, 27-inch, Early 2019) Model ID: iMac19,1 / A2115 (EMC 3194)
• (Retina 5K, 27-inch, Mid 2017) Model ID: iMac18,3 / A1419 (EMC 3070)
• (Retina 4K, 21.5-inch, Mid 2017) Model ID: iMac18,2 / A1418 (EMC 3069)
• (21.5-inch, Mid 2017) Model ID: iMac18,1 / A1418 (EMC 3068)
• (Retina 5K, 27-inch, Mid 2015) Model ID: iMac15,1 / A1419 (EMC 2806)
• (Retina 5K, 27-inch, Late 2014) Model ID: iMac15,1 / A1419 (EMC 2806)
• (21.5-inch, Mid 2014) Model ID: iMac14,4 / A1418 (EMC 2805)
• (21.5-inch, Late 2013) Model ID: iMac14,3 / A1418 (EMC 2742)
• (27-inch, Late 2013) Model ID: iMac14,2 / A1419 (EMC 2639)
• (21.5-inch, Late 2013) Model ID: iMac14,1 / A1418 (EMC 2638)

iMac Pro

• (27-inch, Late 2017) Model ID: iMacPro1,1 / A1862 (EMC 3144)

Mac Pro

• (Late 2013) Model ID: MacPro6,1 / A1481 (EMC 2630)

Mac mini

• (Late 2014) Model ID: Macmini7,1 / A1347 (EMC 2840)

Mac OS Compatibility

• macOS 10.13 High Sierra
• macOS 10.14 Mojave
• macOS 10.15 Catalina
• macOS 11.x Big Sur
• macOS 12.x Monterey
• macOS 13.x Ventura
• macOS 14.x Sonoma

PC OS Compatibility

• Windows 7 32-bit Edition
• Windows 7 64-bit Edition
• Windows 8 32-bit Edition
• Windows 8 64-bit Edition
• Windows 8.1 32-bit Edition
• Windows 8.1 64-bit Edition
• Windows 10 32-bit Edition
• Windows 10 64-bit Edition
• Windows Server 2019
• Windows Server 2022
• Windows 11

Other OS Compatibility

• Chrome OS
