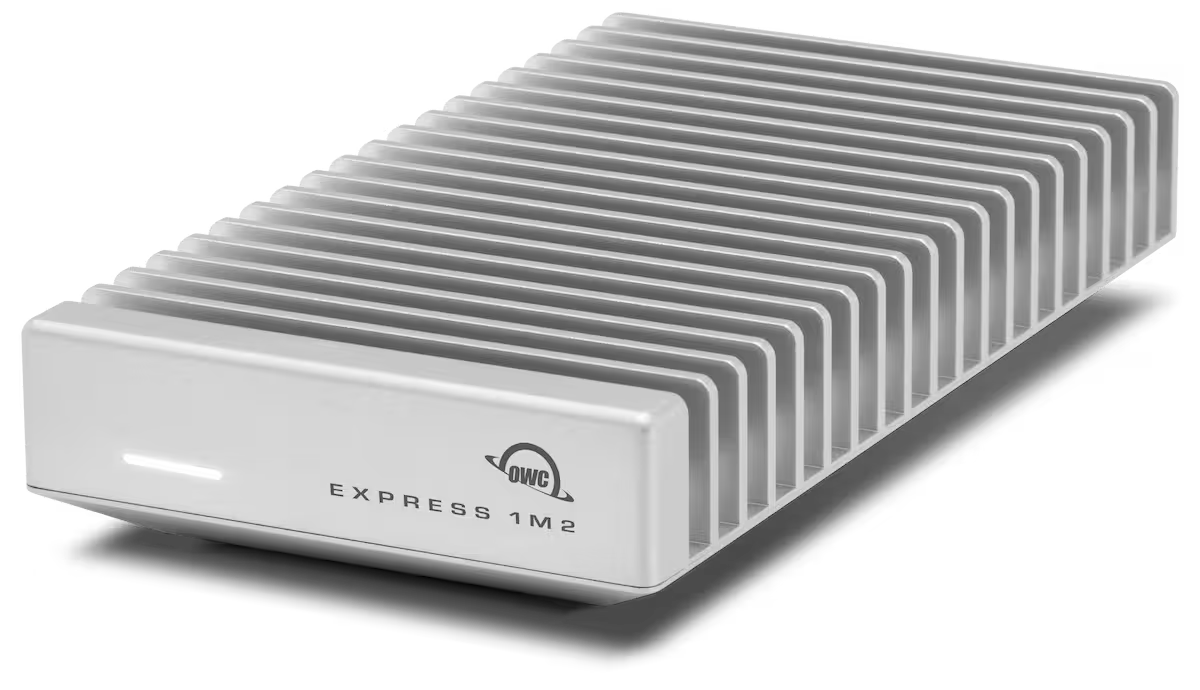

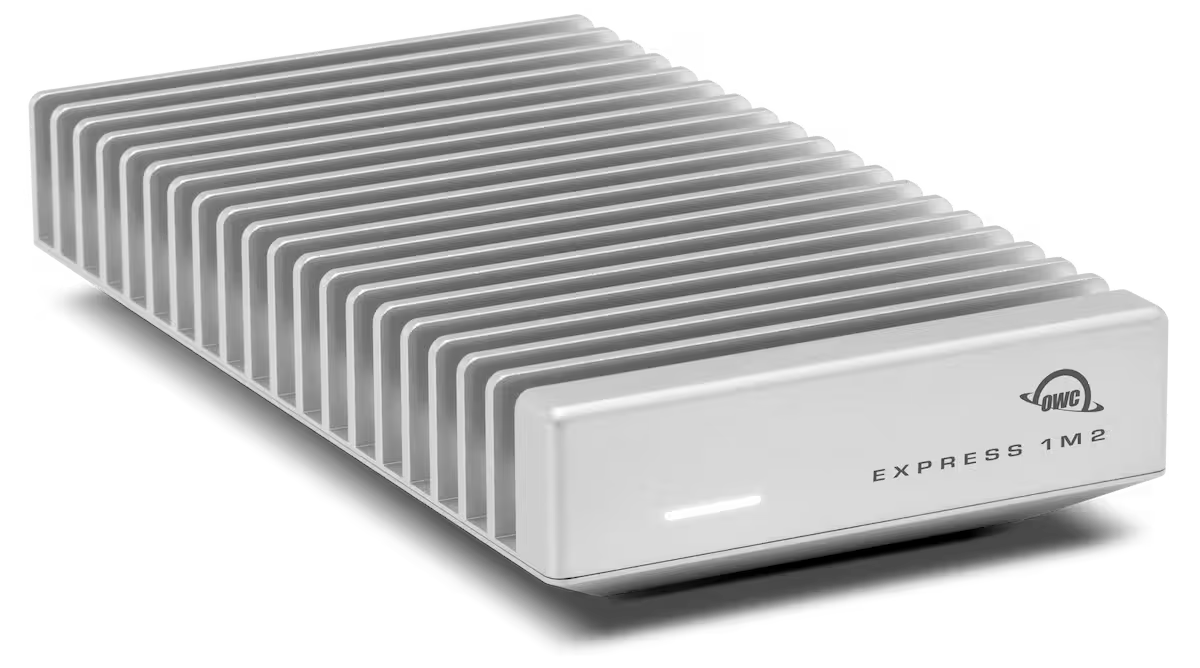

OWC Express 1M2 80G USB4/Thunderbolt 5 NVMe SSD Enclosure or Portable SSD – Up to 6000MB/s

• Drive Bays: 1 bay supporting M.2 NVMe SSDs; supports double-sided and single-sided M.2 2242 / M.2 2280 “M-Key” drives (NVMe SSDs with a heatsink will not fit / not supported)
• Plug and Play: Yes

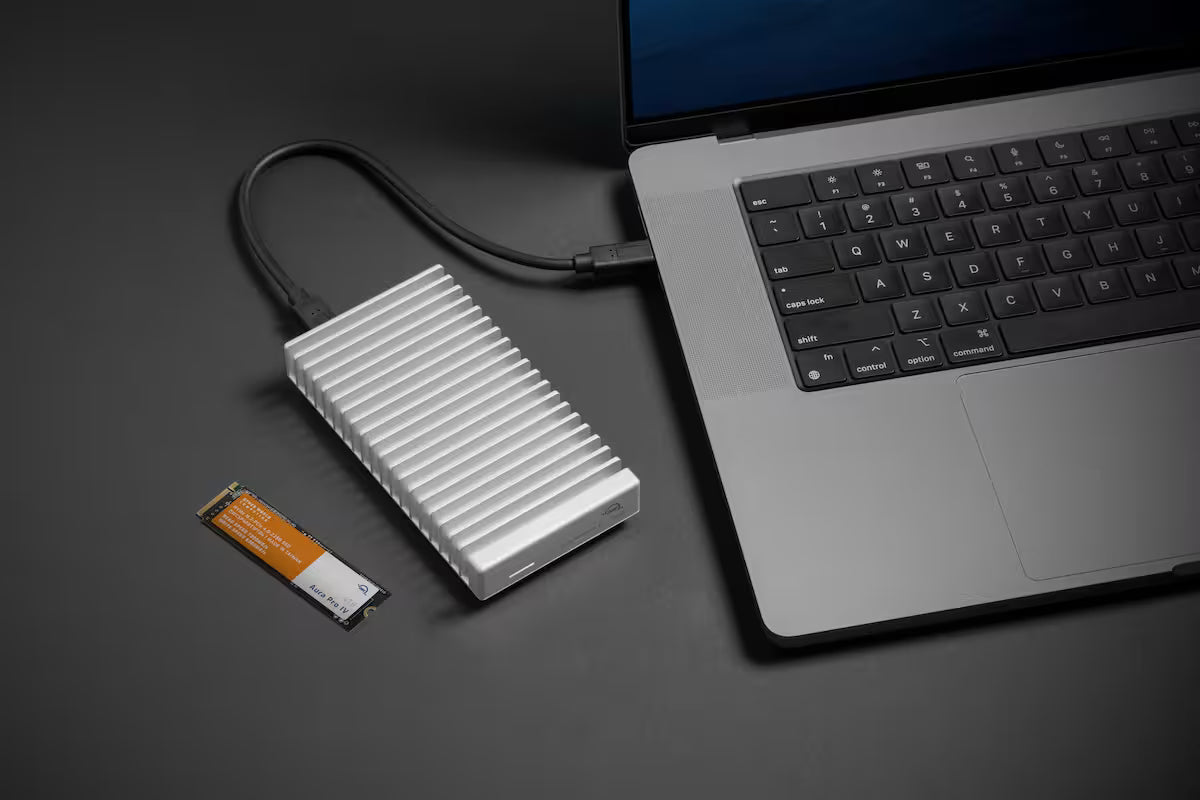

• Storage Interface: M.2 NVMe (ready made SSD will come with Aura Pro IV
  PCIe 4.0 NVMe M.2 2280 Solid-State Drive installed. *OWC reserves the right to replace or upgrade to equivalent or better components.)
• Device Ports: (1) Host Port – Thunderbolt 5/ USB4 (USB-C) up to 80Gb/s (10,000MB/s)
• UASP Support: UASP (USB Attached SCSI Protocol) supported
• Data Transfer Rate (Max): USB4 up to 80Gb/s (10,000MB/s)
• Benchmark Speed (Max): Read up to 6362MB/s; Write up to 5638MB/s
• Chipset / Controller: Barlow Ridge (JHL9480)
• Contact Start Stops: Varies by installed drive
• Host Interface Requirements: Works with Thunderbolt 5, Thunderbolt 4, Thunderbolt 3 (Mac only), or USB4 port
• Driver Required: No

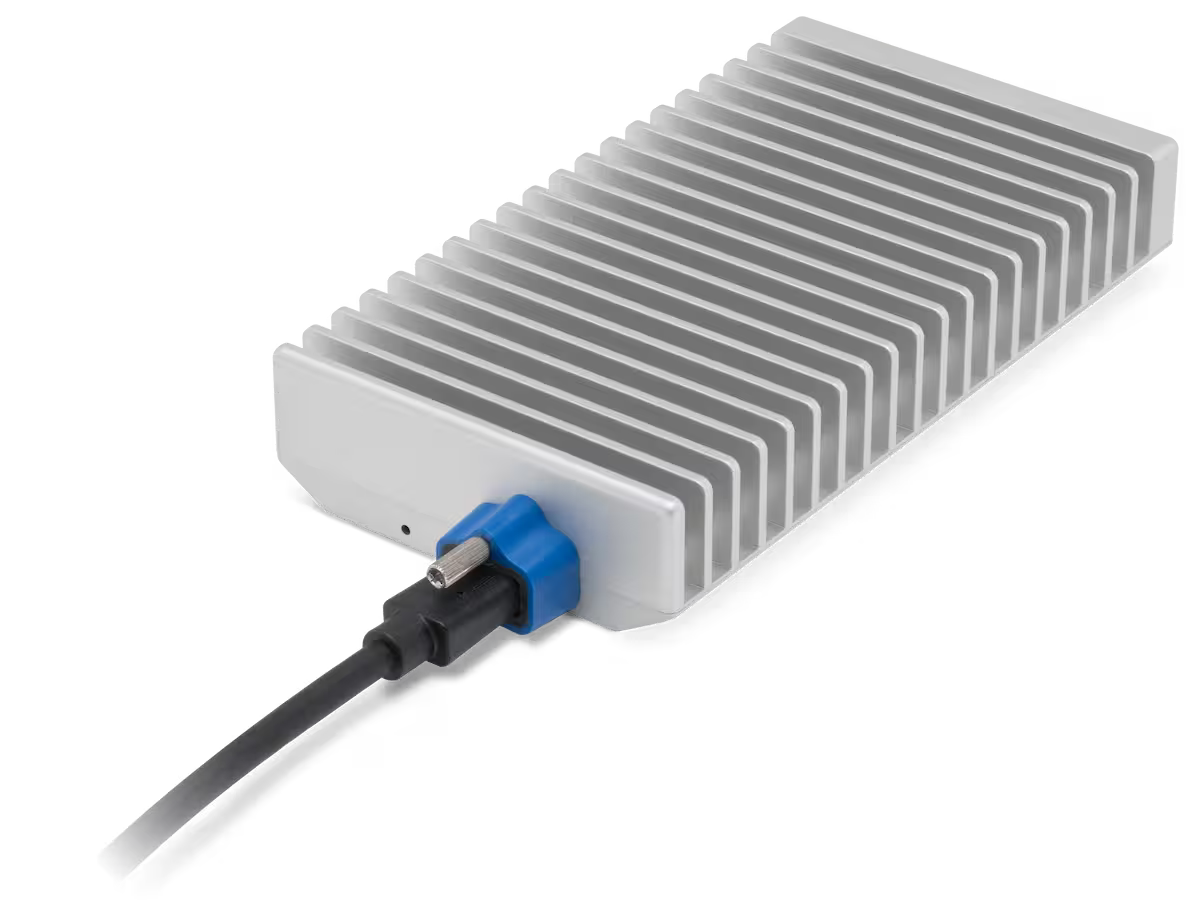

• Supports OWC ClingOn (cable stabilizer)
• External Power Adapter: No
• Power Supply: Bus-powered
• Security Slot: No
• Power/Activity LED: Yes
• Housing Color: Silver
• Housing Material: Aluminum
• Dimensions (H × L × W): 2.4 × 13.3 × 7.2 cm (0.9 × 5.2 × 2.8 in)
• Weight: 280.8 g (0.62 lbs)
• Certifications: CE, FCC, RCM, VCCI, UKCA, ICES
• REACH Certification: Yes
• Ambient Temperature: Operating: 41°F to 95°F (5°C to 35°C); Non-Operating: −4°F to 140°F (−20°C to 60°C)
• Humidity: Operating: 8%–90% non-condensing; Non-Operating: 5%–95% non-condensing
• Notes:
  • 1) NVMe SSDs with heatsinks will not fit / not supported.
  • 2) May not mount if connected as the third bus-powered device on select Macs (e.g., Apple M4 Mac mini 16,11 and M4 Max Mac Studio).

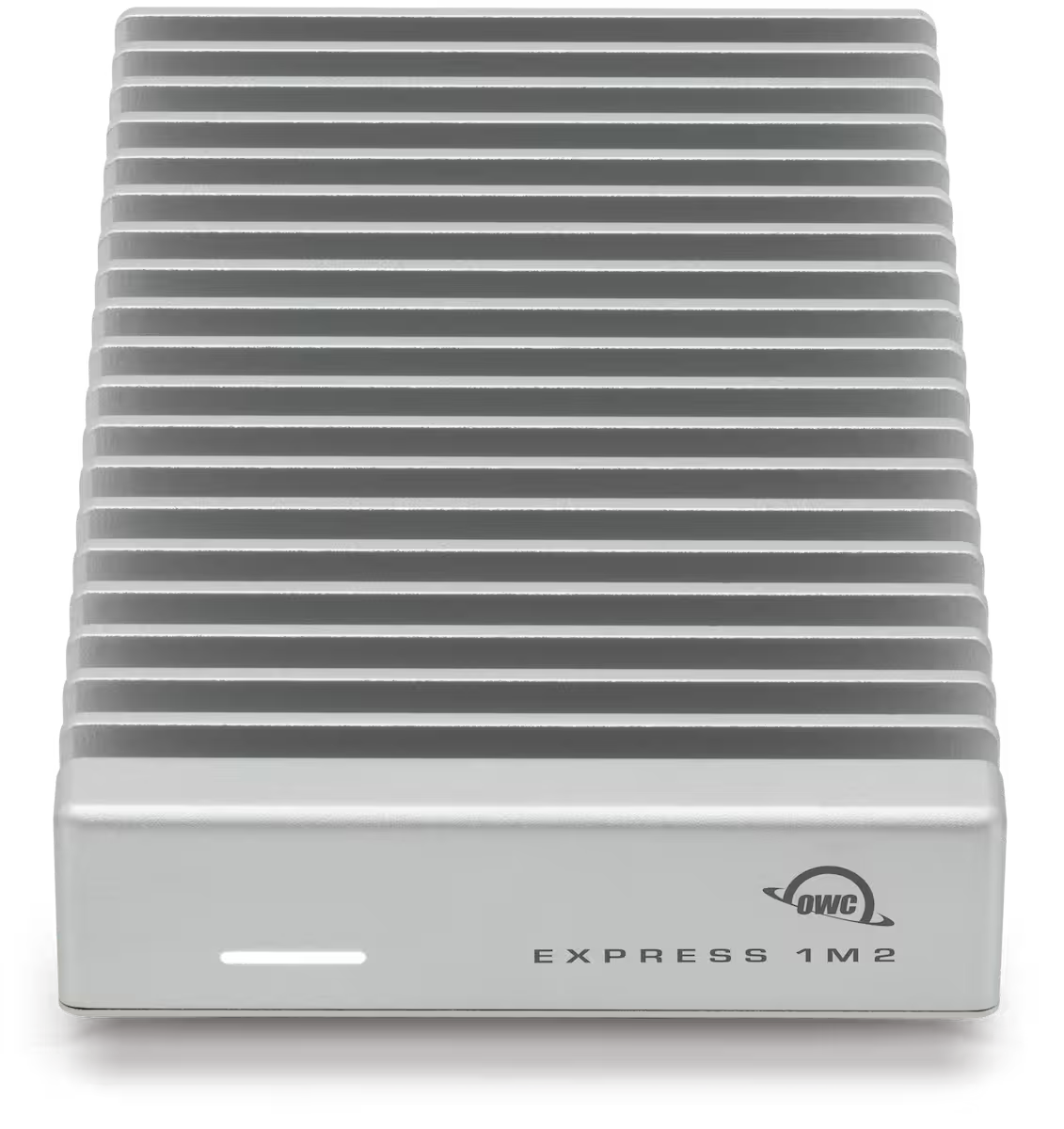

  • 3) LED Status: Solid white = connected with SSD installed; Flashing white = read/write activity.

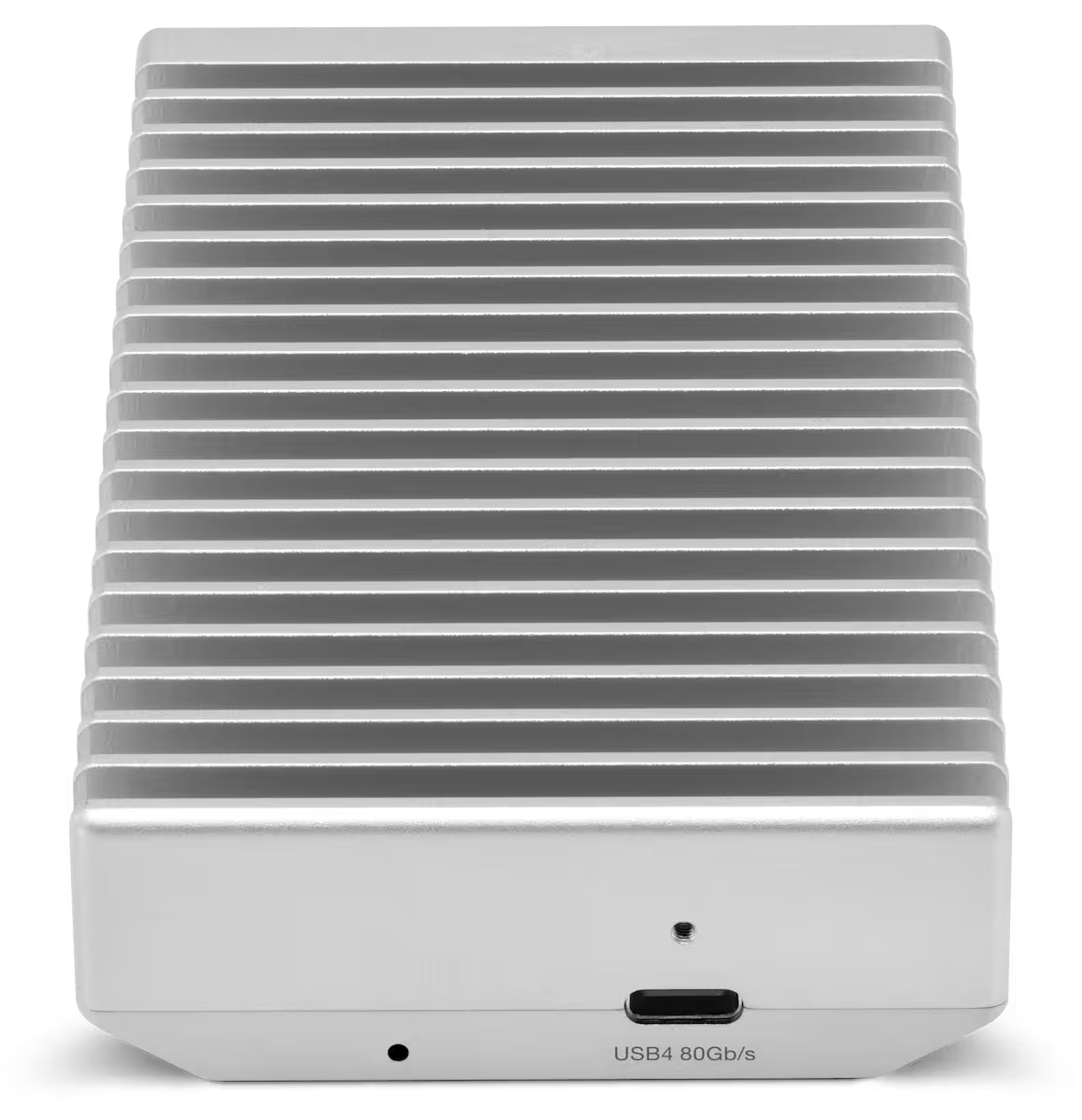

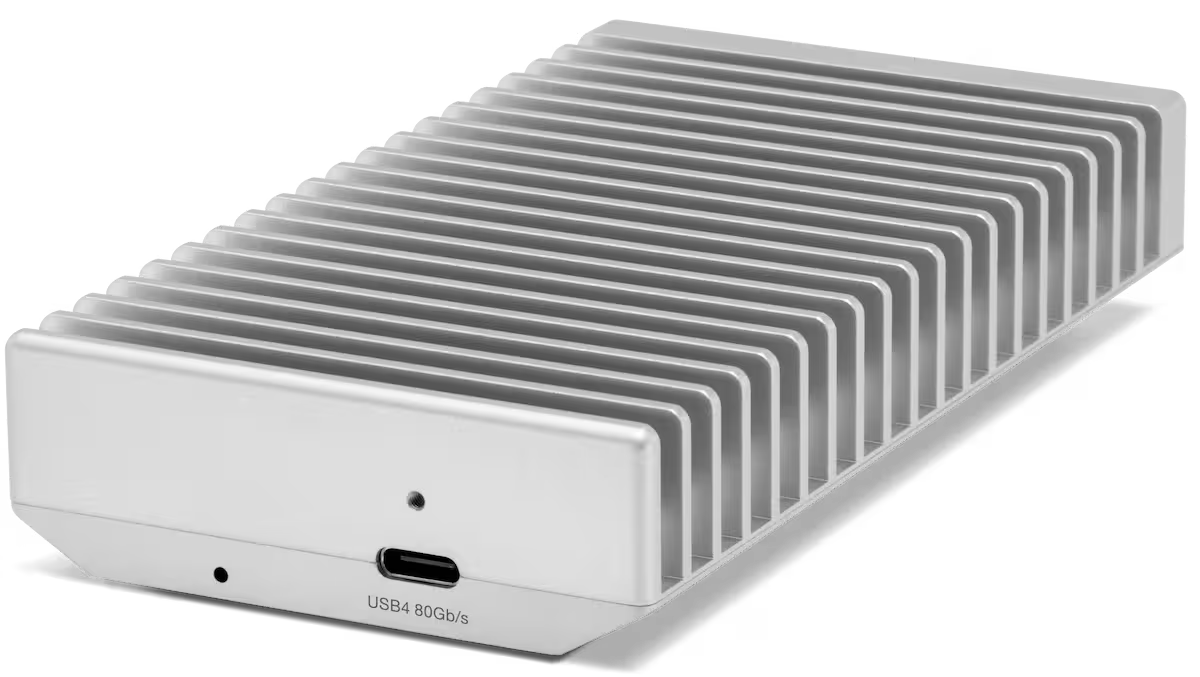

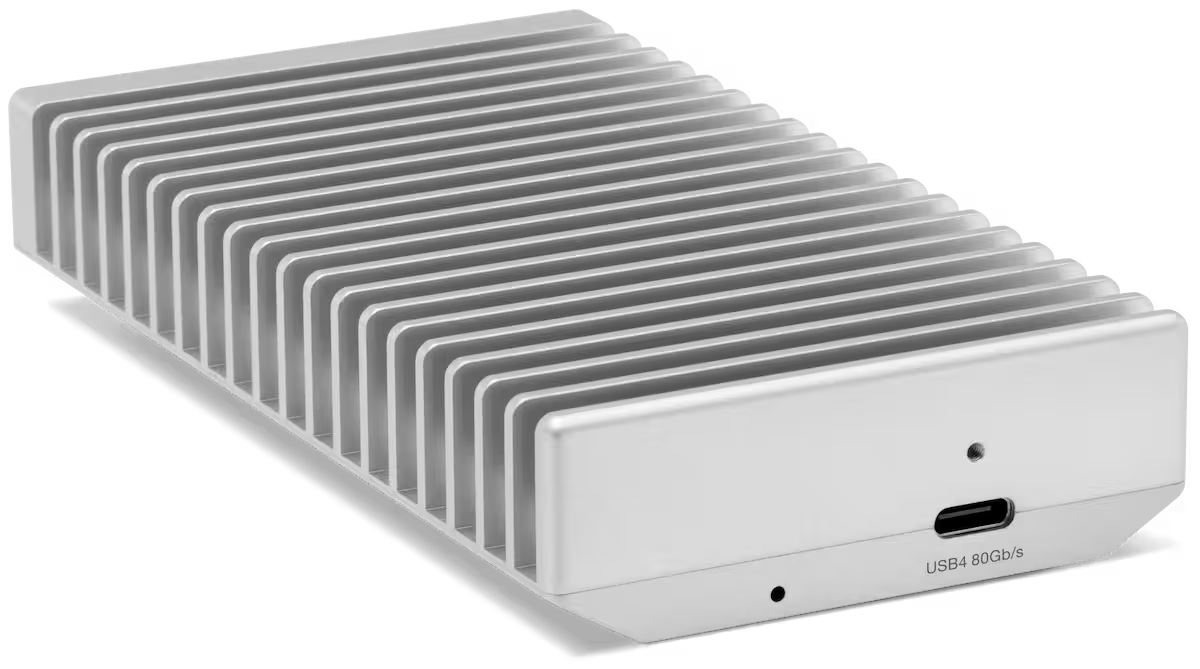

  • 4) LED Dimmer Switch (above the USB4 80Gb/s port) dims/turns off the LED; not to be confused with the OWC ClingOn mount hole. Press once to dim, press again to turn off.
  • 5) Windows systems: changing Disk Removal Policy from “Quick removal” to “Better performance” can improve speed (see OWC Disk Performance guidance).
  • 6) Mounts as an internal drive when connected to an Apple silicon system through an OWC 14-Port Thunderbolt 3 Dock; performance within normal range.

• Supported Drives
• NVMe M.2 SSDs with 2280 / 2242 / form factor
  Double-Sided | Single-Sided NVMe M.2 SSDs
  PCIe Gen 3.0, Gen 4.0, and Gen 5.0 NVMe SSDs

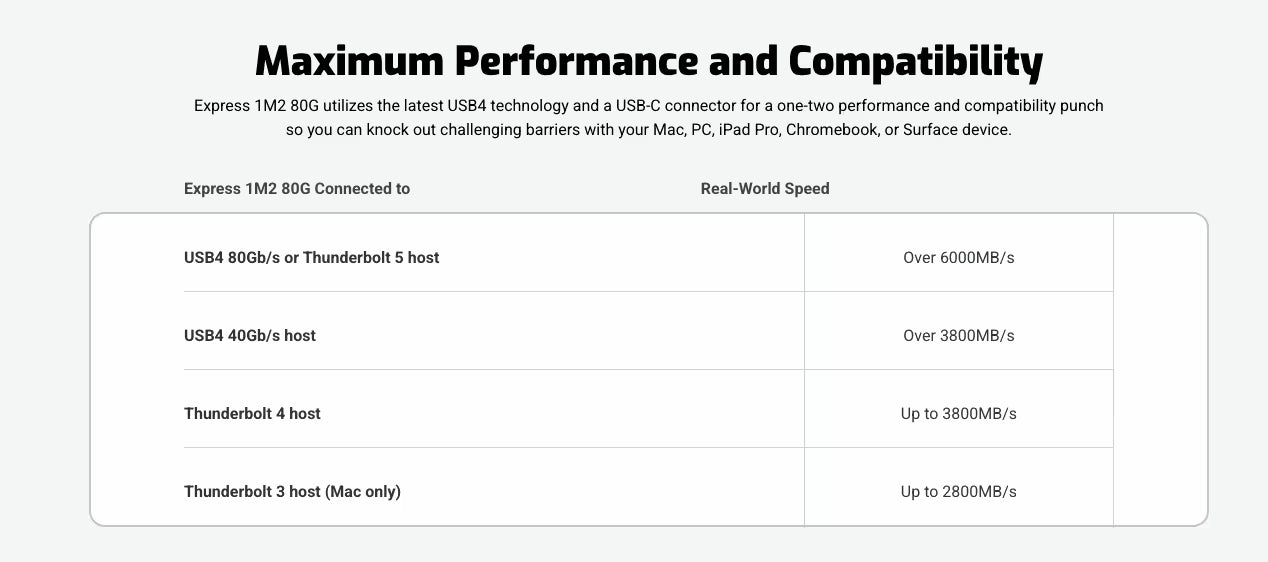

• Users should expect the following speeds when connected to a Thunderbolt 5 or USB4 v2 host:
  PCIe Gen 3.0: up to 3400 MB/s
  PCIe Gen 4.0: up to 6800 MB/s
  PCIe Gen 5.0: up to 6800 MB/s (limited by Thunderbolt/USB interface)
• PCIe Gen 5 NVMe M.2 SSDs require careful selection and verification of manufacturer specifications due to the bus-power limits of host computers, docks, and hubs. We recommend choosing a PCIe Gen 5 SSD that consumes 11 watts or less on average during sustained read or write operations, such as the Samsung 9100 Pro Series Gen 5 NVMe.

• Host Interface Requirements: Thunderbolt 5 / Thunderbolt 4 / Thunderbolt 3 - (Mac only) / USB4 (M-series Mac compatible)
• macOS: 14.x Sonoma; 15.x Sequoia
• Windows: Windows 11
• Linux: Yes (latest Ubuntu recommended)
• ChromeOS: Latest version recommended
• iPadOS: Latest version recommended
• Driver Required: No

• Mac Compatibility:
• • MacBook Pro — Mid 2018 to latest
• • MacBook Air — Early 2020 to latest
• • iMac — Retina Early 2019 to latest
• • iMac Pro — 27-inch, Late 2017
• • Mac Pro — Late 2019 to latest
• • Mac Studio — Early 2022 to latest
• • Mac mini — Late 2018 to latest
• • iPad — iPad Pro Late 2022 to latest

• PC Compatibility: PC must have a compatible Thunderbolt port

• Compatibility Notes:
• • Thunderbolt 5 for Mac requires macOS 15.x or later
• • Thunderbolt 5 for PC requires Windows 11 (22H2) or later
• • Thunderbolt 4 and USB4 on Apple silicon Macs require macOS 14.x or later
• • Thunderbolt 4 for PC requires Windows 11
• • Thunderbolt 3 support is Mac only and requires macOS 15.x or later
• • iPad/Chromebook/Surface require the latest OS
• • NVMe SSDs with a heatsink will not fit and are not supported
