- Sonnet DuoModo Echo I Module Sonnet DuoModo Echo I Module
% £-582.49
Sonnettech
Sonnet DuoModo Echo I Module
No reviews
Product SKU: DM-MOD-E1
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
£582.49
Want it delivered by
- Description
- Specifications
- Compatibility
- Product videos
- Reviews

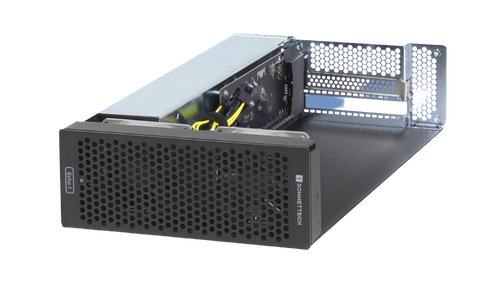

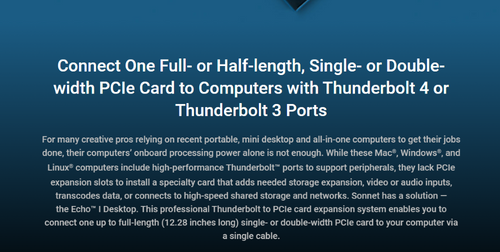

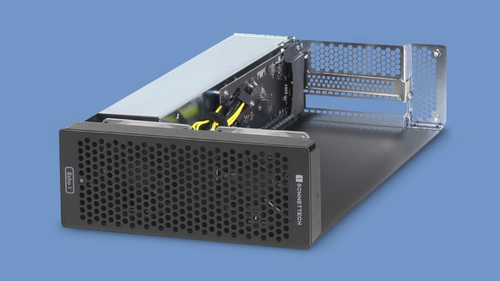

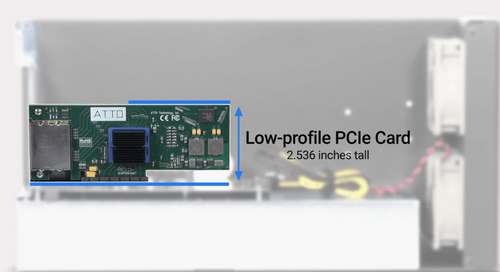

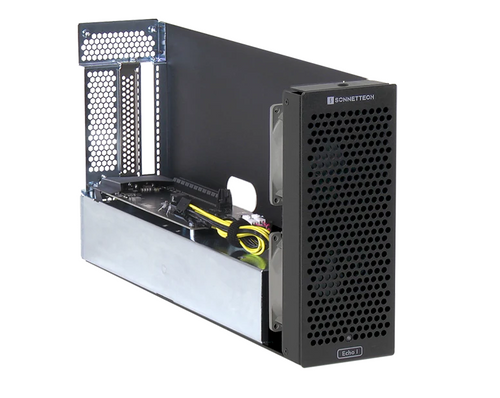

The DuoModo™ Echo™ I Module connects one single or double-width, full-height or low-profile, up to full-length PCIe card to computers without card slots.
The module supports one Thunderbolt™-compatible non-GPU PCIe card and features a 400W power supply (with an 8-pin [6+2 pin] auxiliary power connector) to support the most demanding of PCIe cards, including the Avid for Pro Tools | HDX PCIe card. This product also features dual, ultra-quiet, temperature-controlled Noctua fans rated at 17 dbA, and connects to your computer through a super fast 40Gbps Thunderbolt interface.

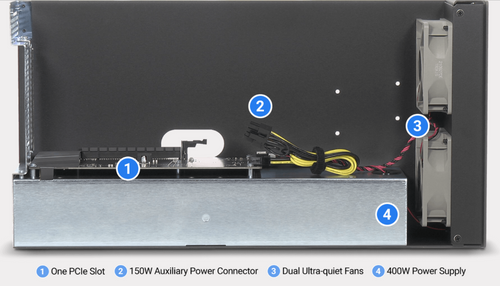

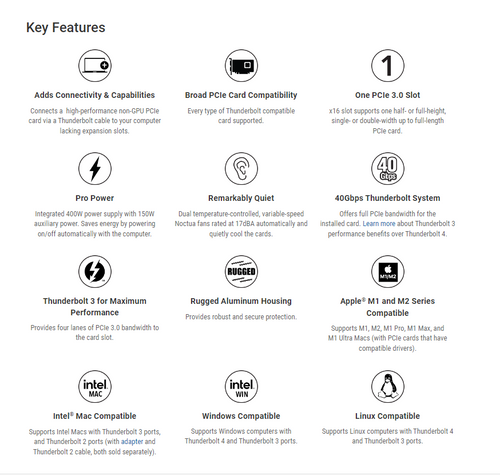

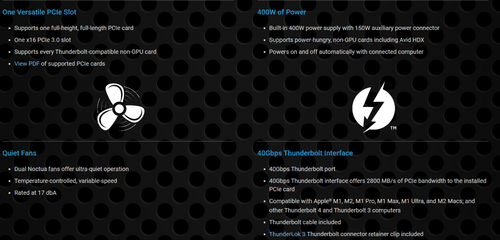

Key Features Versatile PCIe Slot

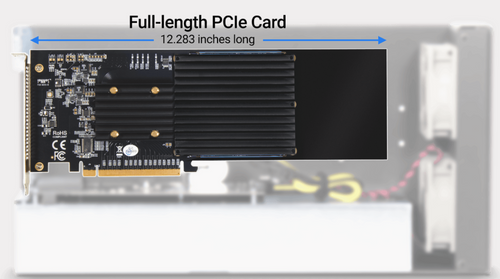

- Supports One Full-height, Full-length PCIe Card
- One x16 PCIe 3.0 Slot

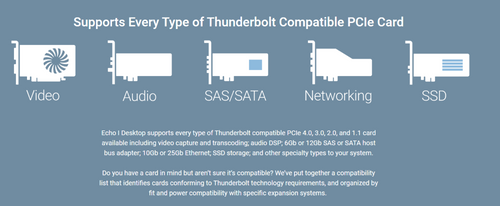

- Supports Every Thunderbolt-compatible non-GPU Card
- Broad PCIe Card Compatibility Support – see PCIeCards Compatibility PDF
400W of Power
- Built-in 400W Power Supply with 150W Auxiliary Power Connector
- Supports Power-hungry, non-GPU Cards, Including Avid HDX
- Powers On and Off Automatically with a Connected Computer

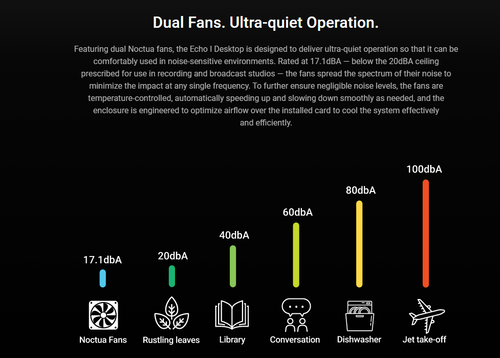

Quiet Fans
- Dual Noctua Fans Offer Ultra-quiet Operation
- Temperature-controlled, Variable-speed
- Rated at 17 dbA

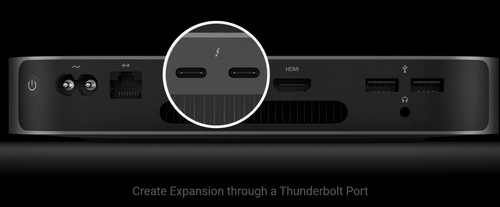

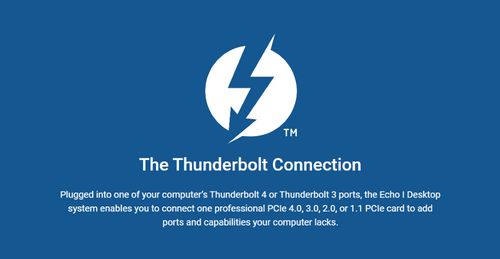

40Gbps Thunderbolt Interface
- One Thunderbolt 3 Port
- 40Gbps Thunderbolt Interface Offers 3000 MB/s of PCIe Bandwidth with Thunderbolt 4 computers; 2570 MB/s with Thunderbolt 3 computers
- Thunderbolt Cable Included
- ThunderLok 3 Thunderbolt Connector Retainer Clip Included
Compatibility
- Compatible with Mac, Windows, and Linux. See Product Page Tech Specs for Full Compatibility Information and Requirements.
Why Sonnet?
- 2-year Product Warranty
- Free Lifetime Customer Technical Support
- Designed and Made In the USA
- Part Number: DM-MOD-E1
- Warranty: 2-year
- Form Factor: Expansion system module
- External Connectors:
- One Thunderbolt port
- Power (C14-type)

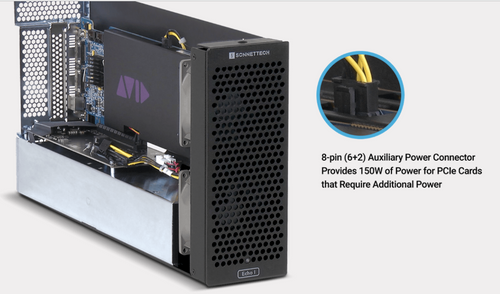

- Internal Connector: 8-pin (6+2 pin) power connector (provides up to 150W of power for PCIe cards that require supplemental power)
- Expansion Slot: One x16 mechanical (x4 electrical) PCIe 3.0
- PCIe Cards Supported: One full-length, full-height, single- or double-width PCIe card
- Power Supply: Universal 400W, 115-230V AC, 50-60 Hz(1)
- Operating Temperature: 0ºC to 35ºC (32ºF to 95ºF)
- Dimensions (WxDxH): 3.3 x 16.6 x 8.5 in. (8.4 x 42.2 x 21.7 cm)
- Weight: 4.95 lbs (2.25 kg)
- Compliance: RoHS 3 (Directive 2015/863), IEC62368-1 and IEC62368-2 Safety
- Package Contents:
- Echo I Module
- Region-specific power cable for US, Australia, Europe, Japan, Switzerland, or UK
- 8-pin (6+2 pin) auxiliary power cable
- Thunderbolt 3 cable
- ThunderLok 3 Thunderbolt connector retainer clip(2)
- Mounting screws
- Documentation
- Product Manual: PDF
- Technical Notes:
- Power supply will operate as low as 90VAC, with linear power derating from 400W @ 115VAC to 320W @ 90VAC.
- ThunderLok 3 compatible specifically with Sonnet 0.5- and 0.7-meter Thunderbolt 3 cables.
- Mac Compatibility:
- Mac (M series) with PCIe cards that have compatible drivers
- Mac (Intel) with Thunderbolt 3 ports
- Mac with a Thunderbolt 2 or Thunderbolt port with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter plus a Thunderbolt 2 cable (both sold separately)
- macOS® 10.12.6+
- macOS Sonoma compatible
- Windows Compatibility:
- Windows 11 or 10 computer with Thunderbolt 4 or Thunderbolt 3 ports
- Linux Compatibility:
- Linux® computer with Thunderbolt 4 or Thunderbolt 3 ports
- Linux Kernel 5.0+
- PCIe Cards Compatibility: For a list of compatible PCIe cards, see the following PDF
