Sonnet DuoModo xMac mini Module

Name: Sonnet DuoModo xMac mini Module
Brand: Sonnettech
SKU: DM-MOD-ZM
Price: 616.0 GBP
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Product SKU: DM-MOD-ZM

Available:

Only 0 item in stock

0 item in stock

In stock

Pre-order

Out of stock

£616.00

Want it delivered by

Description
Specifications
Compatibility
Product videos
Reviews

Mac mini Mounting Module + Thunderbolt SSD Storage Dock. Add up to 16TB of M.2 NVME SSD storage.

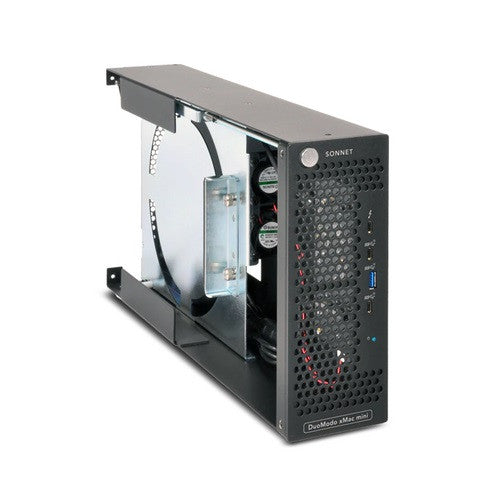

The DuoModo™ xMac™ mini Module is the ultimate Mac mini® upgrade. The module provides secure computer mounting in a DuoModo desktop or rackmount enclosure. It includes a built-in 40Gbps Thunderbolt™ 3 storage dock that adds NVMe storage expansion capability and additional ports for connecting peripherals.

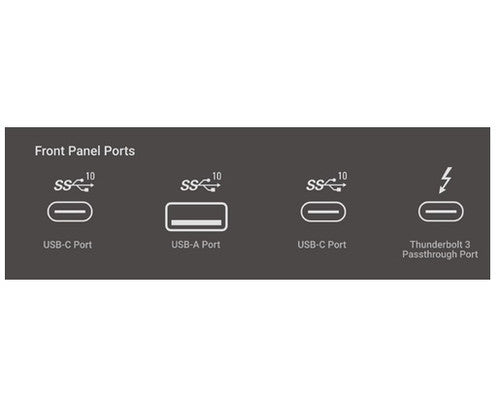

Front Panel Connectivity
40Gbps Thunderbolt and 10Gbps USB ports
The front panel features one passthrough 40Gbps Thunderbolt 3 port and three 10Gbps USB ports (two Type-C, one Type A) for connecting peripherals.

Versatile Internal Expansion
M.2 SSD Storage + Internal USB Type A Port

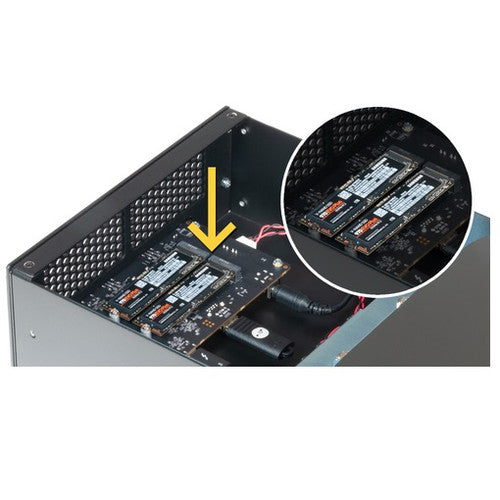

On top of the dock are two M.2 NVMe SSD sockets for one or two M.2 2280 NVMe PCIe SSDs (sold separately). The dock also features an internal USB Type A port that's perfect for connecting an iLok USB-A, thumb drive, or bus-powered USB storage drive.

Quiet Operation
The DuoModo xMac mini Module includes a temperature controlled, variable-speed fans that automatically and quietly provide cooling for the Thunderbolt 3 dock, any installed SSDs, and the module’s power adapter.

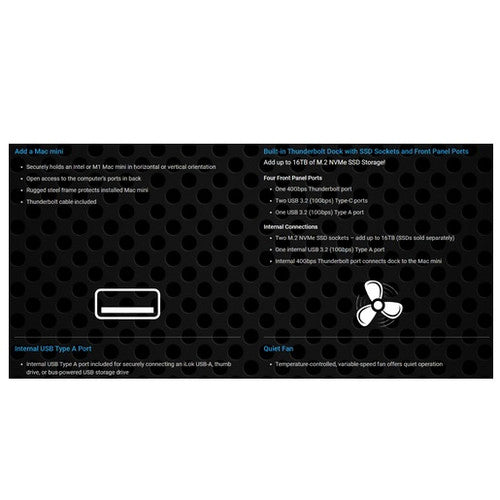

Key Features

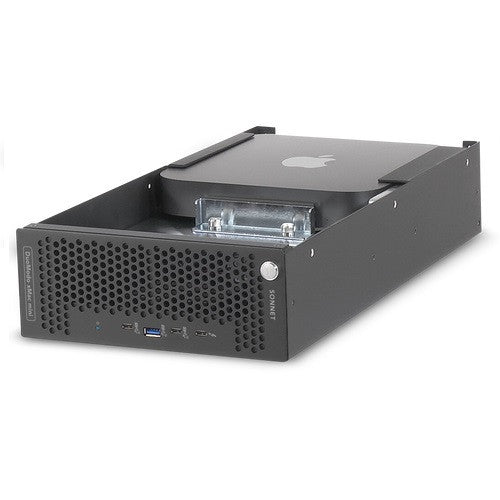

Add a Mac mini

Securely Holds an Intel® or M1 Mac mini in Horizontal or Vertical Orientation
Open Access to the Computer’s Ports in Back
Rugged Steel Frame Protects Installed Mac mini

Built-in Thunderbolt Dock with SSD Sockets and Front Panel Ports

Four Front Panel Ports

One Thunderbolt 3 (40Gbps) Port
Two USB 3.2 (10Gbps) Type-C Ports
One USB 3.2 (10Gbps) Type A Port

Internal Connections

Two M.2 NVMe SSD Sockets – Add up to 16TB (SSDs sold separately)
One Internal USB 3.2 (10Gbps) Type A Port
Internal Thunderbolt 3 (40Gbps) Port Connects Dock to the Mac mini

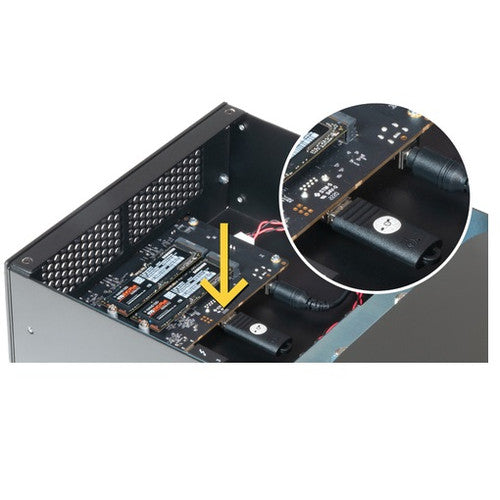

Internal USB Type A Port

Internal USB Type A Port Included for Securely Connecting an iLok USB-A, Thumb Drive, or Bus-powered USB Storage Drive

Quiet Fan

Temperature-controlled, Variable-speed Fan Offers Quiet Operation

Why Sonnet?

2-year Product Warranty
Free Lifetime Customer Technical Support
Designed and Made In the USA

Why Thunderbolt 3 Instead of Thunderbolt 4?
DuoModo Modules rely on Thunderbolt 3 technology for maximum performance. Learn Why

Part Number: DM-MOD-ZM
Warranty: 2-year
Form Factor: Expansion system module
Front Panel Connectors:

One Thunderbolt (USB Type-C) port
Two USB 3.2 (10Gbps) Type-C ports
One USB 3.2 (10Gbps) Type A port

Internal Connectors:

One Thunderbolt (USB Type-C) port to Mac mini
One USB 3.2 (10Gbps) Type A port for thumb drive or dongle
Two M-keyed (NVMe) M.2 sockets (each connected at PCIe x2)

SSDs: One or two M.2 2280 NVMe PCIe SSDs (with or without heat sink). For a list of supported SSDs, see the following PDF
Power Supply: Universal 96W, 100-240V AC, 50-60Hz, C14-type power connector
Operating Temperature: 0ºC to 35ºC (32ºF to 95ºF)
Dimensions (WxDxH): 3.3 x 16.4 x 8.5 in. (8.4 x 41.6 x 21.7 cm)
Weight: 4.95 lbs (2.25 kg)
Compliance: RoHS 3 (Directive 2015/863), IEC62368-1 and IEC62368-2 Safety
Package Contents:

xMac mini Module
Region-specific power cable for US, Australia, Europe, Japan, Switzerland, or UK
0.5-meter Thunderbolt 3 cable
Documentation

Product Manual PDF: https://www.sonnettech.com/support/downloads/manuals/duomodo_xmac_mini_module_ug.pdf
Technical Notes:

Metal enclosures can attenuate the Bluetooth signal from your Mac mini. Using an external adapter such as Sonnet’s Long-Range USB Bluetooth 4.0 Micro Adapter (plugged into the USB port on the front of DuoModo xMac mini module can improve its performance.
macOS 10.14.6+ supports both 512 and 4k block size SSDs, but macOS 10.13.6 supports only 4k block size SSDs. SSDs 1TB or larger are shipped from the factory programmed with a 4k block size. If you have smaller SSDs that are programmed with 512 block size, and you need to be compatible with macOS 10.13.6, you may need to reprogram your SSDs to a 4k block size. See this tech note for more details.

Mac Compatibility:

Mac mini® (M2/M2 Pro) macOS® 13 - macOS 14
Mac mini (M1) macOS 11 - macOS 14
Mac mini (2018) - Last version with Intel® CPU macOS 10.14 - macOS 14
Mac mini (Late 2014) with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter plus a Thunderbolt 2 cable (both sold separately) macOS 10.12 - macOS 12
Mac mini (Late 2012) with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter plus a Thunderbolt 2 cable (both sold separately) macOS 10.12 - macOS 10.15
