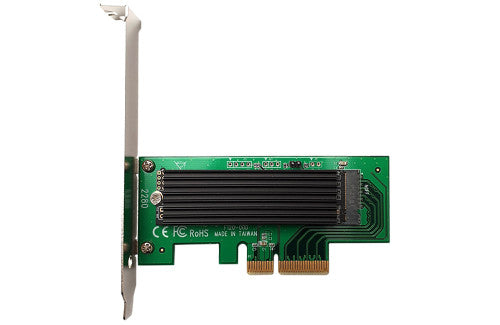

Flexx LX400 Pro PCIe NVME M.2 SSD adapter Card with M.2 NVME SSD installed
Ultra-Speed NVMe SSD Mounted on PCIe Card - Boost Your System Performance
Upgrade your storage and performance for gaming, creation, or work on your Mac Pro or PC with our NVMe SSD mounted on a PCIe card. This SSD will allow data to move lightning-fast for gamers, content creators, and professionals whose application demands are top-tier.
Compatible PCIe NVME SSD upgrade kit for 2010 to 2019 Apple Mac Pro tower and Mac Pro rack machines - (requires macOS 10.13 - High Sierra or newer). To boot macOS from this SSD on MacPro5,1 - the Mac needs to be fitted with a compatible graphics card.
What is in the box:
- Flexx LX400 Pro SSD on PCIe card adapter
Key Features:
Blazing Fast Speeds: Get lightning-fast read and write speeds, which will significantly reduce loading times and improve overall system responsiveness.
Easy to Install: Install the PCIe card in your Mac Pro desktop's PCIe slot—easy as pie.
High-Capacity Options: Choose from multiple storage capacities so you can get just the amount of space that fits your needs.
Enhanced Durability: Built with premium components for extended performance and reliability.
Supports the most systems: Compatible with most systems, such that you can make your desktop a big performer.
Upgrade your desktop today with our NVMe SSD mounted on a PCIe card and experience unparalleled speed and performance.
Benefits:
- Performance up to four times faster than a conventional SATA SSD
- Sequential Read up to 3300MB/s*, Write up to 3000MB/s Random Read 500K IOPS
- No mechanical parts
- Highest reliability; less likely to fail than HDD
- Extreme shock resistance
- Zero noise
- No heat generation
- Low power consumption - improved battery life on laptops/netbooks
- Controller Technology: Phison E12
- 5 Year Warranty
Features:
- PCIe Gen3x4
- Compliant with PCI Express Base Specification Rev 3.1
- Compliant with NVMe 1.3
- 3D TLC NAND Flash technology
- Non-volatile Flash Memory for outstanding data retention
- Ultra-efficient Block Management and Wear Levelling
- Supports S.M.A.R.T. - Self-Monitoring, Analysis and Reporting Technology
Actual speed may vary, depending on system configuration
- Capacity: 256 GB/ 512 GB/ 1 TB/ 2 TB/ 4TB
- Form Factor: PCIe
- Type: M.2 2280
- Bus Interface: NVMe PCIe Gen3 x4
- Flash Type: 3D NAND flash
- Manufacturer part number: FLX400256GBSSD3MP/ FLX400512GBSSD3MP/ FLX4001TBSSD3MP/ FLX4002TBSSD3MP/ FLX4004TBSSD3MP
- Operating Temperature: 0°C (32°F) ~ 70°C (158°F)
- Operating Voltage: 3.3V±5%
-

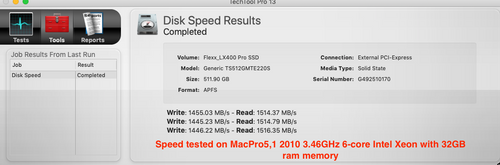

Sequential Read/Write (CrystalDiskMark):
- 2 TB - up to 3,500/2,900 MB/s
- 1 TB - up to 3,500/3,200 MB/s
- 512 GB - up to 3,500/2,500 MB/s
- 256 GB - up to 3,300/1,250 MB/s
-
4K Random Read/Write (IOmeter):
- 2 TB - up to 340,000/360,000 IOPS
- 1 TB - up to 330,000/370,000 IOPS
- 512 GB - up to 190,000/360,000 IOPS
- 256 GB - up to 190,000/300,000 IOPS
-
Terabytes Written (TBW):
- 2 TB - 4,400 TBW
- 1 TB - 2,200 TBW
- 512 GB - 1,100 TBW
- 256 GB - 550 TBW
- Mean Time Between Failures (MTBF): 2,000,000 hour(s)
- Drive Writes Per Day (DWPD): 1.2 (5 yrs)
- Certificate: CE/ FCC/ BSMI/ KC/ RCM/ UKCA
- Warranty: Five-year Limited Warranty
- S.M.A.R.T.: Yes
- Advanced Garbage Collection: Yes
- RAID Engine: Yes
- LDPC Coding: Yes
- DRAM Cache: Yes
-
Dimensions:
- Double-sided: 80 mm x 22 mm x 3.58 mm (3.15" x 0.87" x 0.14")
- Weight: 10 g (0.35 oz)
-
Note:
- Speed may vary due to host hardware, software, usage, and storage capacity.
- The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
- Terabytes Written (TBW) expresses the endurance under the highest capacity.
- Some motherboards only provide PCIe x2 connections for the M.2 slot, creating a bottleneck on even the fastest drives.
-

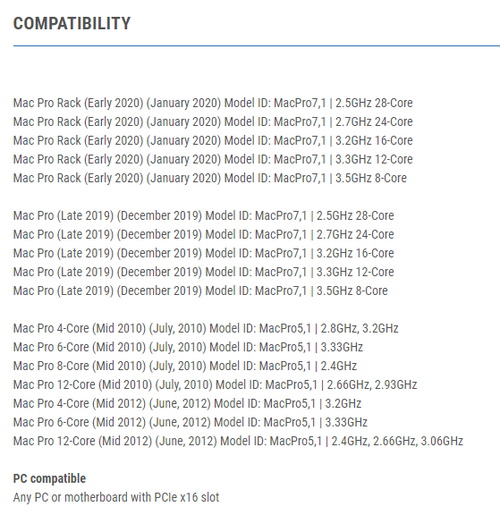

Mac Pro Rack (Early 2020):
- Model ID: MacPro7,1 | 2.5GHz 28-Core
- Model ID: MacPro7,1 | 2.7GHz 24-Core
- Model ID: MacPro7,1 | 3.2GHz 16-Core
- Model ID: MacPro7,1 | 3.3GHz 12-Core
- Model ID: MacPro7,1 | 3.5GHz 8-Core
-
Mac Pro (Late 2019):
- Model ID: MacPro7,1 | 2.5GHz 28-Core
- Model ID: MacPro7,1 | 2.7GHz 24-Core
- Model ID: MacPro7,1 | 3.2GHz 16-Core
- Model ID: MacPro7,1 | 3.3GHz 12-Core
- Model ID: MacPro7,1 | 3.5GHz 8-Core
-
Mac Pro (Mid 2010):
- Model ID: MacPro5,1 | 2.8GHz, 3.2GHz
- Model ID: MacPro5,1 | 3.33GHz
- Model ID: MacPro5,1 | 2.4GHz
- Model ID: MacPro5,1 | 2.66GHz, 2.93GHz
-
Mac Pro (Mid 2012):
- Model ID: MacPro5,1 | 3.2GHz
- Model ID: MacPro5,1 | 3.33GHz
- Model ID: MacPro5,1 | 2.4GHz, 2.66GHz, 3.06GHz
- PC Compatible: Any PC or motherboard with PCIe x16 slot
Customer Reviews
Great product, worked exactly as stated - after I upgraded the boot ROM! Setup is very easy, performance really great, and I can highly recommend both the FLEXX hardware and their prompt delivery to Australia!
