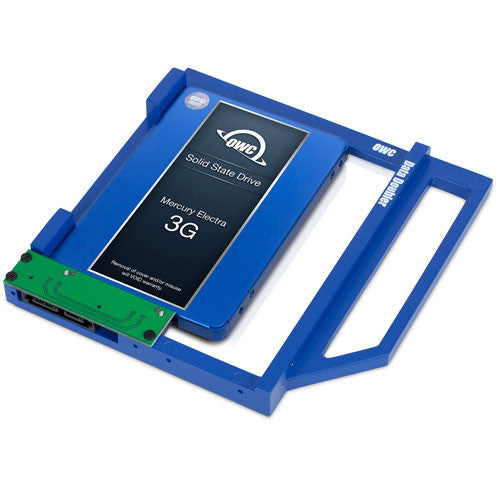

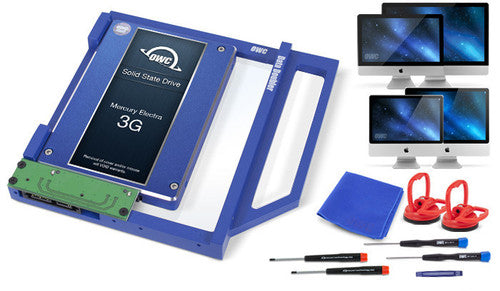

Replace DVD Drive with SSD OWC Mercury Electra 3G on select 20,24 and 21.5-inch 2009 to 2011 iMacs

• Available capacities 250GB/ 500GB/ 1TB/ 2TB
• Manufacturer part numbers (SSD) OWCS3D7E3G250/ OWCS3D7E3G500/ OWCS3D7E3GT1.0/ OWCS3D7E3GT2.0
• Manufacturer part numbers (bundles) OWCDDIMSSD250/ OWCDDIMSSD500/ OWCDDIMSSD1TB/ OWCDDIMSSD2TB
• Form Factor 2.5-inch
• Interface SATA 3.0 Gb/s
• Tools Yes
• RAID Support Yes
• SMART Attributes Standard 2
• RoHS Compliant Yes
• Reach Certification Yes
• Security ATA Security Feature Command Set and Password Login Support
• Error Correction Built-in ECC
• TRIM Support OS Dependent
• Wear Leveling Supported
• Nonrecoverable Read Errors Less than 1 sector per 10/15 bits read
• Mac OS Compatibility Yes
• PC OS Compatibility Yes
• Other Requirements Requires a Mac, PC, or drive enclosure with an available SATA drive bay. SATA II (3.0 Gb/s) or faster is required for best performance.
• Sequential Read (Max) 274MB/s
• Sequential Write (Max) 253MB/s
• Shock 1500 G max at 0.5 ms
• Temperature (°F) / (°C) 32°F to 158°F / 0°C to 70°C
• Humidity 5% to 95% non-condensing

OWC Data Doubler Specification

• Supports SATA / SATA 3G / SATA 6G Interface 2.5" Drive or SSD (Solid State Drive) of up to 9.5mm (Super Slim) height
• Dimensions 5"(D) x 5"(W) x 03"(H) (12.7 x 12.7 x 7.6mm)
• Weight 2.4oz. / 0.15lbs.
• OWC Data Doubler Installation Guide
• 1 Year OWC Brand Standard Limited Warranty
• Includes

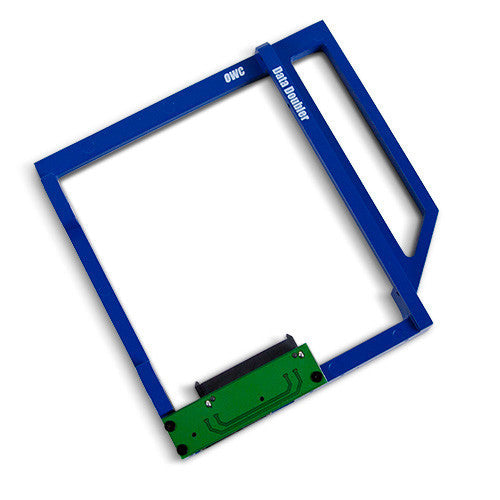

  • OWC Data Doubler Bracket
  • Interposer Board
  • Screws (5pcs, 3 x Phillips #00 2 x Phillips #1)
  • Detailed Installation Guide with Model Specific Instructions/Step by Step Photos

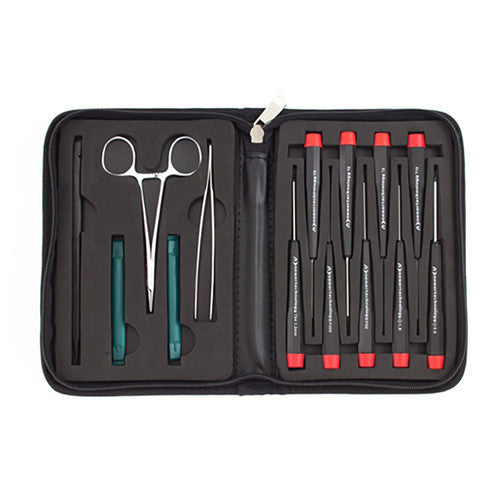

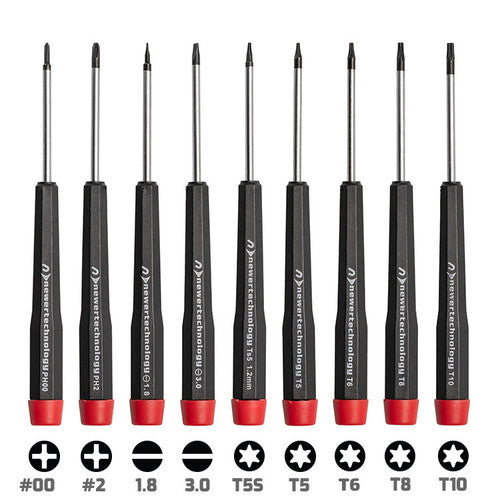

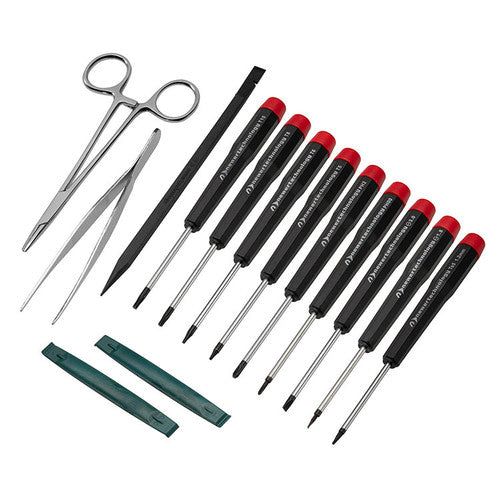

  • The toolkit includes everything you need to open your Mac and install the Data Doubler
• Note Temperature reporting is currently an unsupported feature because due to the operating characteristics of SSDs, it is highly unlikely one would ever exceed an OWC Mercury SSD's stated operating temperature ceiling of 158F/70C. However, we are looking into supporting this feature in the future via a firmware update. Firmware updates can be found here - Firmware updates

• iMac (21.5-inch Mid 2011) (May, 2011) Model ID: iMac12,1 - A1311 - EMC - 2428 | 2.5GHz i5, 2.7GHz i5, 2.8GHz i7
• iMac (21.5-inch Mid 2010) (July, 2010) Model ID: iMac11,2 - A1311 - EMC - 2389 | 3.6GHz i5
• iMac (21.5-inch, Late 2009) Late 2009 Model ID: iMac10,1 - A1311 - EMC - 2308 | 3.3GHz, 3.1GHz - Core 2 Duo
• iMac (24-inch Early 2009) (March, 2009) Model ID: iMac9,1 - A1225 - EMC - 2267 | 2.66GHz, 2.93GHz, 3.06GHz
• iMac (20-inch Early 2009) (March, 2009) Model ID: iMac9,1 - A1224 - EMC - 2266 | 2.66GHz
